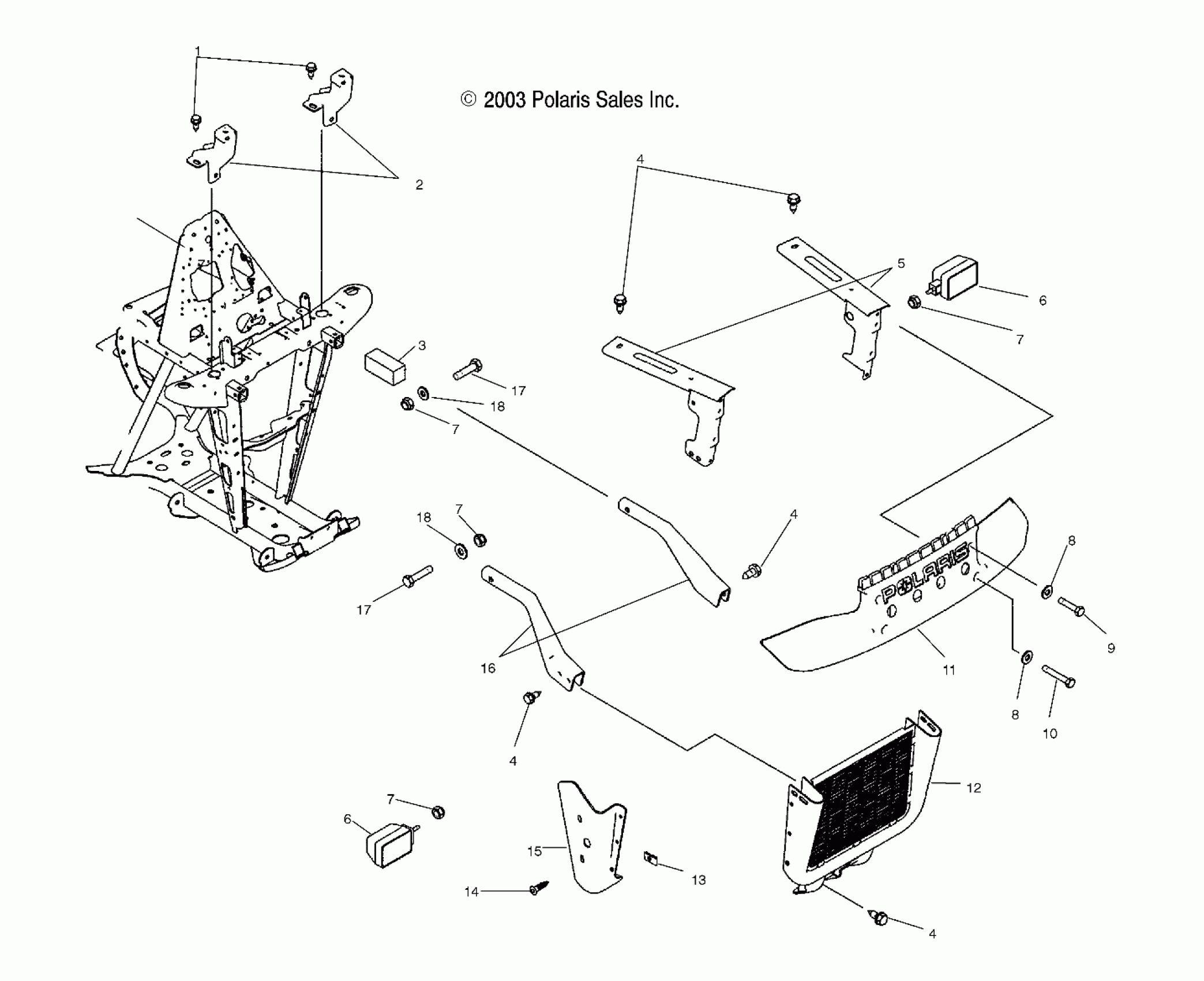

Polaris ATP 330 4X4 - A04JD32AA FRONT RACK and BUMPER MOUNTING - A04JD32AA (4977487748A11) Diagram

#

Description
Price

1

SCREW

7512232

$1.49

2

Support, Front Rack, LH

1013744-067

$119.99

2

Support, Front Rack, RH

1013746-067

$94.99

3

PLUG, FRAME

5810467

Unavailable

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

5

Mount, Rack, LH

1014099-067

$119.99

5

Mount, Rack, RH

1014101-067

Unavailable

6

Bulb, Replacement, 30W

4030061

Unavailable

6

Asm., Headlight, Side Mount, LH

2431011

Unavailable

6

Asm., Headlight, Side Mount, RH

2431012

Unavailable

6

Bulb, Replacement, 30W

4030061

Unavailable

6

Asm., Headlight, Side Mount, LH

2431011

Unavailable

6

Asm., Headlight, Side Mount, RH

2431012

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Washer (If built before 10/01/03)

7555954

$4.79

8

Washer (If built before 10/01/03)

7555954

$4.79

9

Screw (If built before 10/01/03)

7515391

$4.79

9

Screw (If built after 10/01/03)

7517977

Unavailable

10

Screw (If built before 10/01/03)

7515390

Unavailable

11

Bumper

5432155-070

$143.99

12

Guard, Brush

1013772-067

Unavailable

13

Nut, U-Type

7670094

$5.59

14

Screw

7512097

$3.99

15

Shield, Radiator Side, LH

5433923

$31.99

15

Shield, Radiator Side, RH

5433924

$31.99

16

Extension, Frame, LH

5244729-067

$164.99

16

Extension, Frame, RH

5244730-067

$144.99

17

Bolt

7512329

$3.99

17

Bolt

7512329

$3.99

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
