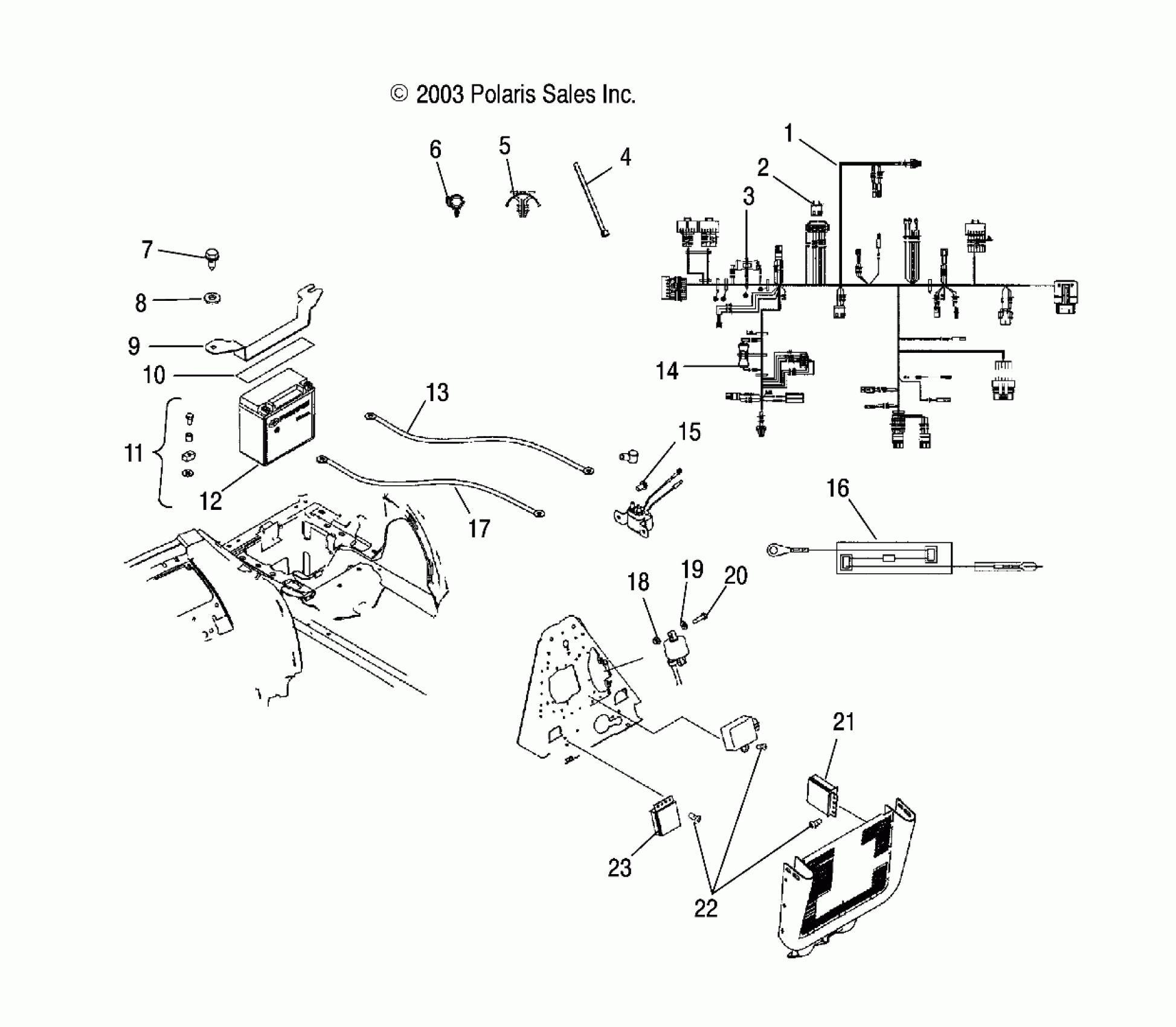

Polaris ATP 330 4X4 - A04JD32AA ELECTRICAL/TAILLIGHT - A04JD32AA (4977487748C07) Diagram

#

Description
Price

1

Kit, Fusible Link

2202147

$84.99

1

Harness, Main

2461172

$349.21

2

Kit, Harness, Resistor Module

2204890

$161.49

3

Breaker, Circuit, 20 AMP

2410323

$68.79

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

Mount, Cable Tie (If built before 7/01/03)

7080965

$7.27

6

CLIP, ROSEBUD

4020139

$4.76

7

SCREW

7512242

$2.38

8

WASHER

7555859

$1.19

9

Strap, Battery

5247373-067

Unavailable

10

Pad

5810317

Unavailable

11

Kit, Battery Bolt, Short

2200361

Unavailable

12

Battery

4010774

$128.56

13

Cable, Black

4010095

Unavailable

14

Kit, Circuit Breaker, Fan

2201795

$72.84

15

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

16

Jumper, Harness [If built before 3/31/03]

2410411

Unavailable

17

Cable, 13 Inch, Battery/Solenoid

4010955

$32.37

18

Nut, Nylok

7541925

$0.79

19

Washer

7571602

$4.76

20

BOLT

7512007

$3.97

21

Module, Electronic Control [If built after 3/31/03]

4010944

$412.84

21

Module, Electronic Control [If built before 3/31/03]

4010697

$412.84

22

SCREW

7512024

$4.76

23

Control, Dif Lock LR64 (If built before 3/07/03)

4010890

Unavailable

23

Control, Dif Lock LR64 (If built after 3/07/03)

4010961

Unavailable
