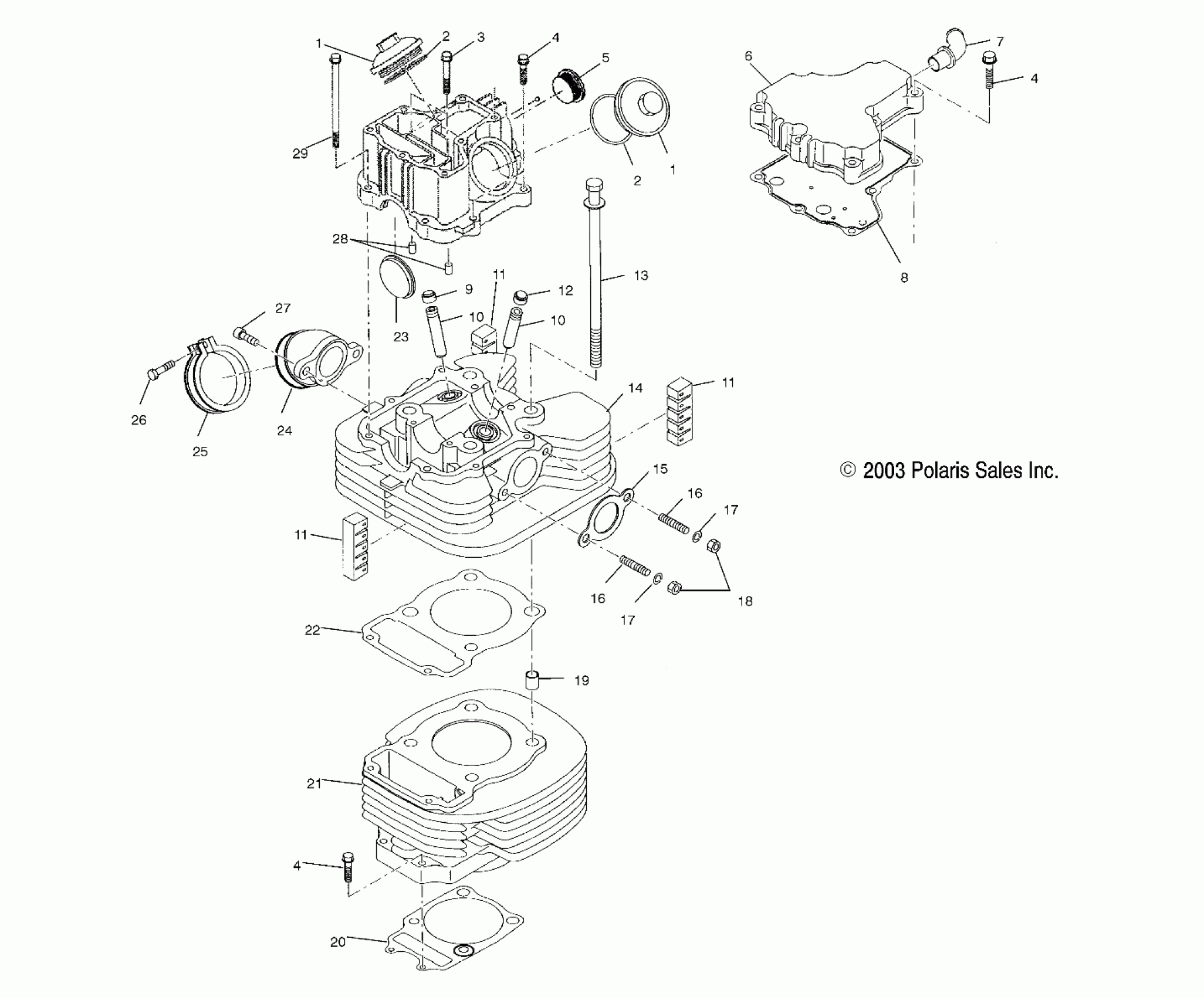

Polaris ATP 330 4X4 - A04JD32AA CYLINDER - A04JD32AA (4977487748D08) Diagram

#

Description
Price

1

Cover, Valve

3087259

Unavailable

1

Cover, Valve

3087259

Unavailable

2

O-Ring

3086414

Unavailable

2

O-Ring

3086414

Unavailable

3

BOLT, FLANGE

3087159

$3.97

4

Bolt, Flange

3087158

Unavailable

4

Bolt, Flange

3087158

Unavailable

4

Bolt, Flange

3087158

Unavailable

5

Plug, Cylinder Block

3086417

Unavailable

6

Cover, Breather

3087033

Unavailable

7

Pipe

3085850

$52.60

8

Gasket, Cover

3087034

$28.32

9

Seal, Intake Valve

3084858

$13.75

10

GUIDE, VALVE

3084994

Unavailable

10

GUIDE, VALVE

3084994

Unavailable

11

Fin Damper A

3084798

$36.41

11

Fin Damper A

3084798

$36.41

11

Fin Damper A

3084798

$36.41

12

SEAL, EXHAUST VALVE

3084859

$24.27

13

Bolt and Washer

3086418

$12.99

14

Asm., Cylinder Head [Incl. 3,4,10-12,14,16]

3087237

$704.99

15

Gasket, Exhaust

3086421

Unavailable

16

Stud

3085326

Unavailable

16

Stud

3085326

Unavailable

17

Washer, Lock

3080530

$3.17

17

Washer, Lock

3080530

$3.17

18

Nut

3086787

Unavailable

19

KNOCK, PIPE

3087266

Unavailable

20

Gasket, Cylinder

3086407

$32.37

21

Cylinder, Unit

3087236

$438.08

22

Gasket, Head

3087238

$40.46

23

Gasket, Cam

3086416

Unavailable

24

Adapter

3087050

$72.84

25

Asm., Adapter Band [Incl. 26]

3083166

$19.84

26

SCREW

3081497

$2.38

27

Bolt, Socket, Head

3086786

$3.97

28

Knock, Pipe

3087275

Unavailable

29

Bolt, Flange

3087160

Unavailable
