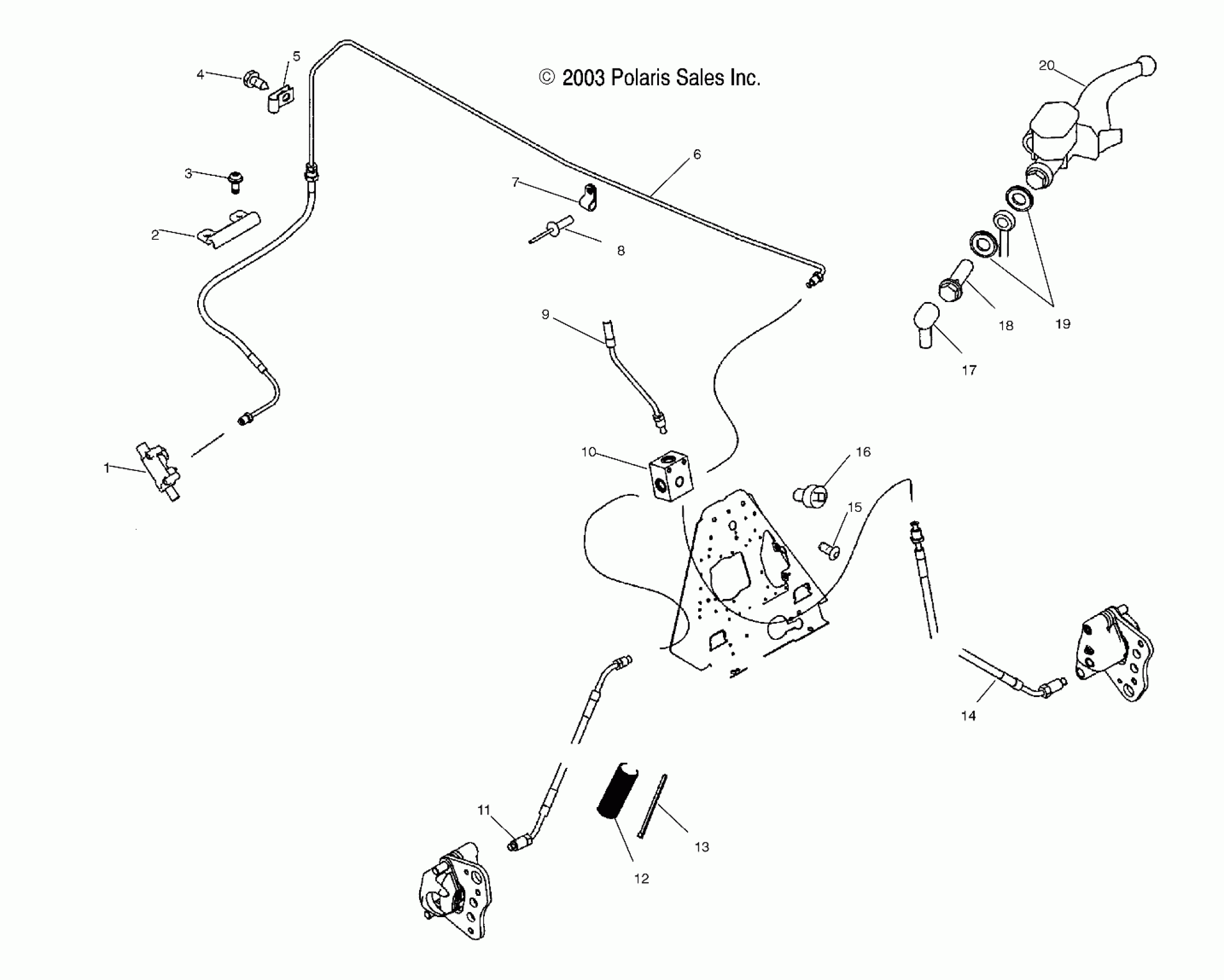

Polaris ATP 330 4X4 - A04JD32AA CONTROLS-MASTER CYLINDER/BRAKE LINE - A04JD32AA (4977487748B14) Diagram

ASM., DUAL MASTER CYLINDER, FOOT [SEE REAR BRAKE PG., REF. 20]

----

Unavailable

Clamp, Brake Line

5434041

Unavailable

Screw

7512084

$1.19

SCREW

7517386

$1.19

Clamp, Rubber Coated

7080573

$7.14

Line, Brake, JB to FT, M/C

1910657

Unavailable

Clamp, Nylon, Cable

7080539

$4.76

Rivet

7621462

$1.19

Line, Brake, Stainless Steel

1910470

$89.03

FITTING, CROSS

7052292

$39.68

Line, Brake, Right Front Stainless Steel

1910475

$89.03

Tubing, Convoluted

8360031-34

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

Line, Brake, Left Front Stainless Steel

1910474

$89.03

SCREW

7512024

$4.76

SWITCH

4110164

$204.24

Boot, Brake Line, Rubber

5411297

$2.06

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

Seal

5410988

$4.84

Asm., Master Cylinder LH [See Controls - Front Brake Pg. for Details]

2010196

$246.89
