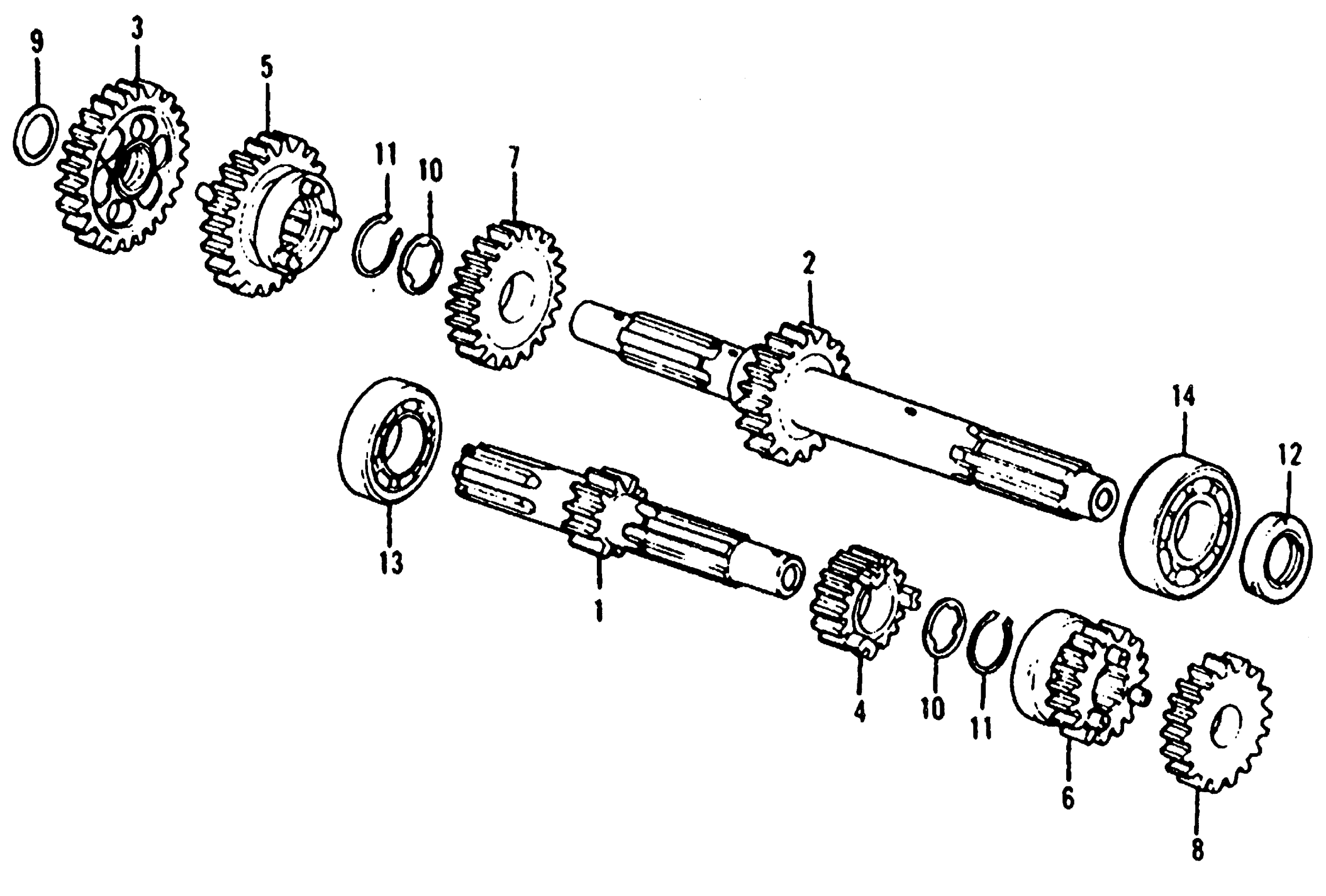

Honda ATC90K3A ALL-TERRAIN, JPN, VIN# ATC90-1400001 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (13T)

23211-028-070

Unavailable

COUNTERSHAFT, TRANSMISSION (23T)

23220-053-030

Unavailable

GEAR, COUNTERSHAFT LOW (33T)

23421-096-000

Unavailable

GEAR, MAINSHAFT SECOND (18T) (NOT AVAILABLE)

23431-052-040

Unavailable

GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE)

23441-052-020

$66.88

GEAR, MAINSHAFT THIRD (21T)

23451-052-010

Unavailable

GEAR, COUNTERSHAFT THIRD (25T)

23461-052-000

Unavailable

GEAR, MAINSHAFT TOP (24T)

23471-052-000

Unavailable

WASHER, THRUST (14MM)

90451-001-000

$3.67

WASHER, SPLINE (18MM)

90461-028-000

Unavailable

CIRCLIP (18MM)

90601-030-000

$1.77

OIL SEAL (27X37X7) This part replaces 91201-053-005.

91205-943-003

$11.58

OIL SEAL (27X37X7)

91205-943-003

$11.58

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
