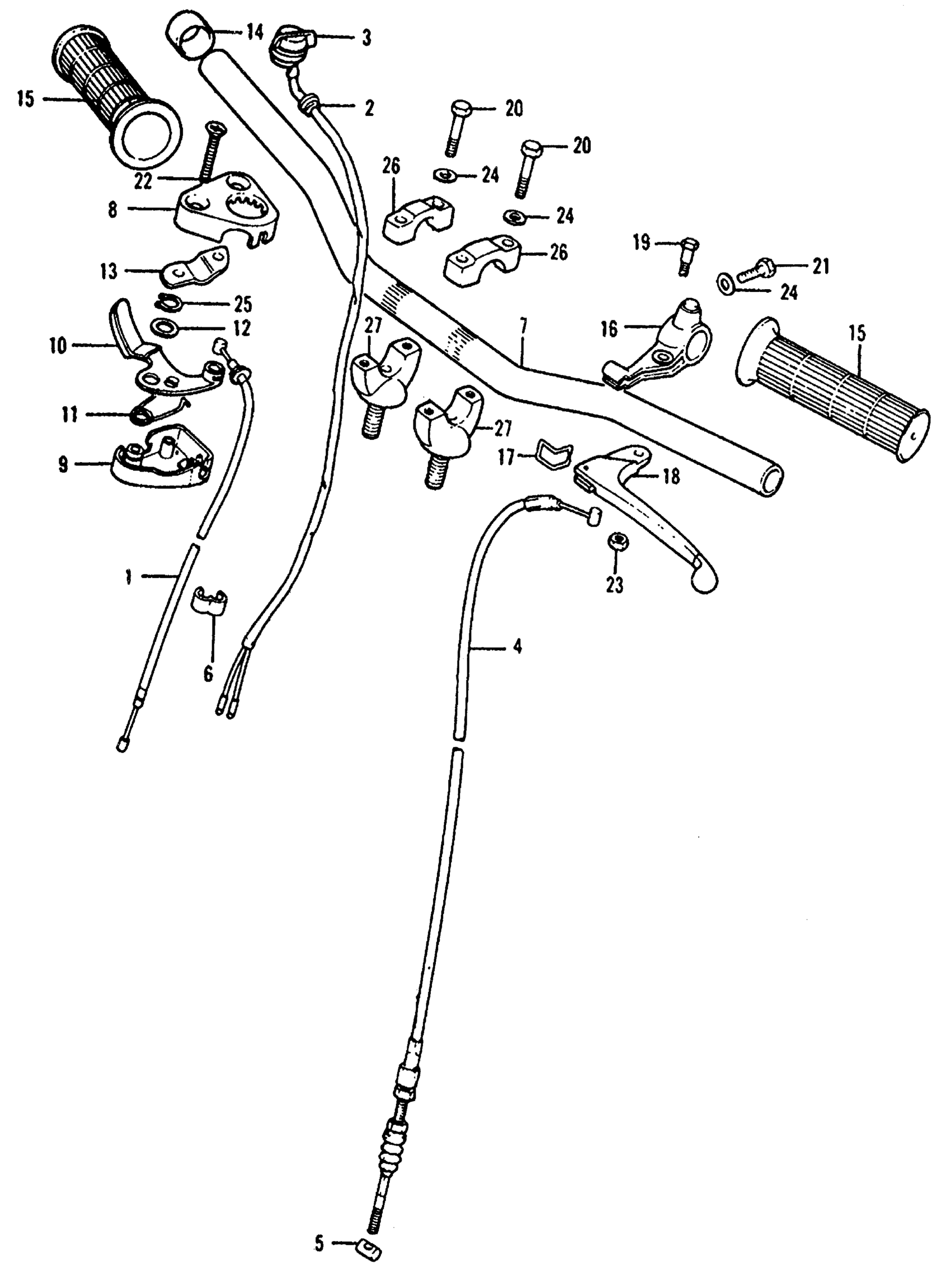

Honda ATC90K3A ALL-TERRAIN, JPN, VIN# ATC90-1400001 HANDLEBAR Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-918-020

Unavailable

2

GROMMET, TOOL This part replaces 34601-568-600.

63312-ZA7-000

$3.34

2

GROMMET, TOOL

63312-ZA7-000

$3.34

3

SWITCH ASSY., STOP (NOT AVAILABLE)

35300-918-010

Unavailable

4

CABLE This part replaces 43460-918-010.

43460-943-305

Unavailable

4

CABLE

43460-943-305

Unavailable

5

JOINT, BRAKE CABLE

43473-918-000

Unavailable

6

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

7

HANDLEBAR *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

53100-918-020XW

Unavailable

8

COVER, THROTTLE LEVER *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

53141-918-020XW

Unavailable

9

CASE, THROTTLE LEVER

53142-918-000

Unavailable

10

LEVER, THROTTLE (NOT AVAILABLE)

53145-937-000

Unavailable

11

SPRING, THROTTLE LEVER (NOT AVAILABLE)

53146-937-000

Unavailable

12

WASHER (10MM) (NOT AVAILABLE)

53147-918-000

Unavailable

13

SEAT, THROTTLE CASE (NOT AVAILABLE)

53148-918-000

Unavailable

14

STOPPER, CASE LEVER (NOT AVAILABLE)

53152-918-000

Unavailable

15

GRIP, L. HANDLEBAR (NOT AVAILABLE)

53166-918-000

Unavailable

16

BRACKET, HANDLEBAR (NOT AVAILABLE)

53172-918-000

$45.90

17

SPRING, LOCK (NOT AVAILABLE)

53180-918-010

Unavailable

18

LEVER, BRAKE This part replaces 53190-918-010.

53190-958-000

Unavailable

18

LEVER, BRAKE

53190-958-000

Unavailable

19

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

19

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

20

BOLT, HEX. (6X28)

90117-065-000

$2.62

21

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

21

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

22

SCREW, OVAL (5X45) (SOURCE: VINTAGE PARTS INC.)

93700-05045-0B

Unavailable

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

26

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.31

27

HOLDER B1, HANDLEBAR

95014-32100

$13.08
