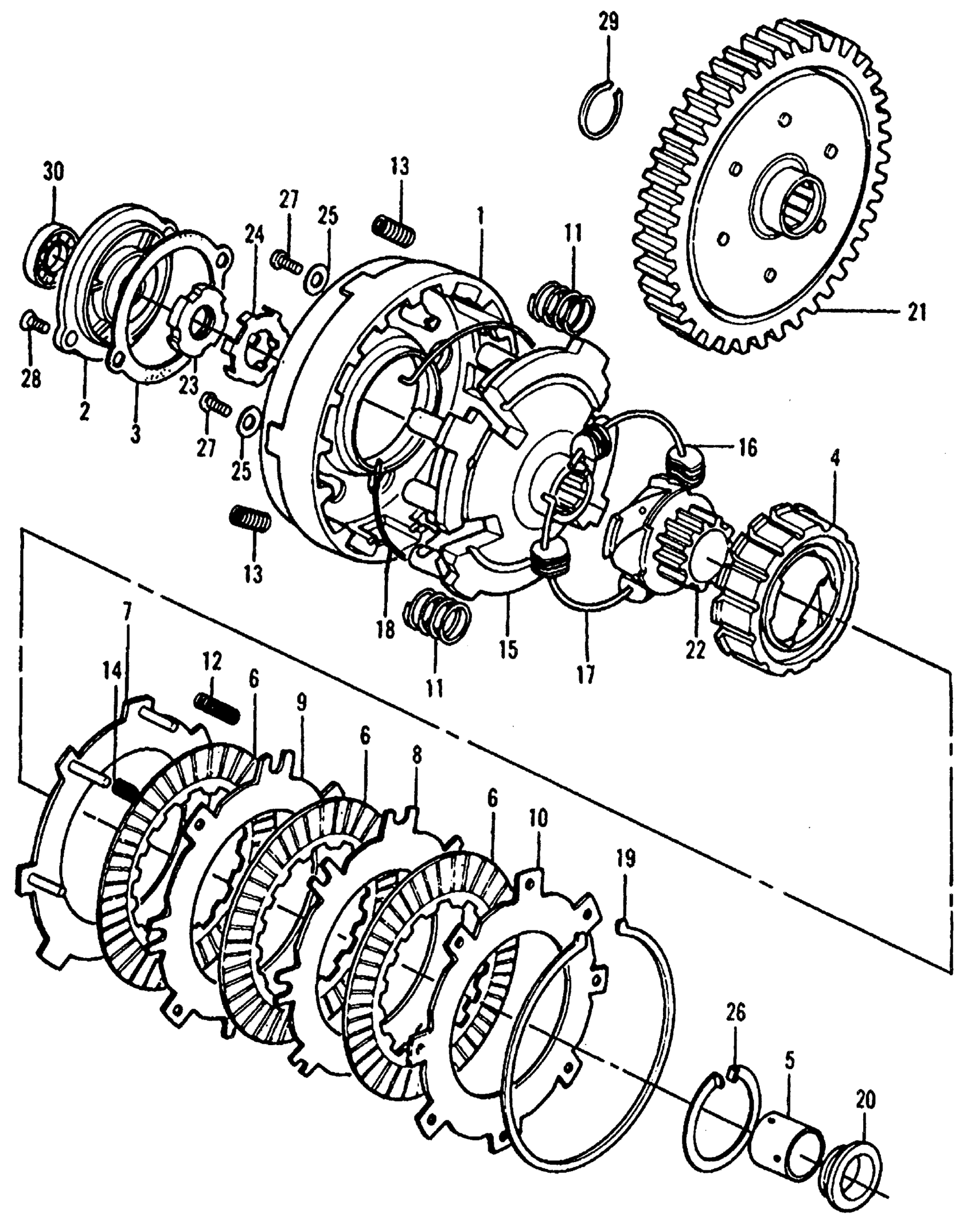

Honda ATC90K3A ALL-TERRAIN, JPN, VIN# ATC90-1400001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22101-046-030.

22101-046-040

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE)

22101-046-040

Unavailable

2

COVER, CLUTCH (OUTER)

22111-028-010

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22112-028-000.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-028-306.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-121-630.

22112-121-632

$3.60

4

CENTER, CLUTCH (NOT AVAILABLE)

22121-096-000

Unavailable

5

GUIDE, CLUTCH CENTER

22131-121-690

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-121-306.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-121-690.

22201-121-631

$17.82

7

PLATE A, CLUTCH

22311-096-000

Unavailable

8

PLATE B, CLUTCH This part replaces 22321-046-010.

22321-046-020

$9.83

8

PLATE B, CLUTCH

22321-046-020

$9.83

9

PLATE C, CLUTCH

22331-046-000

$9.37

10

PLATE D, CLUTCH This part replaces 22341-046-000.

22341-943-000

$11.82

10

PLATE D, CLUTCH

22341-943-000

$11.82

11

SPRING, CLUTCH

22401-046-000

Unavailable

12

SPRING, CLUTCH FREE This part replaces 22411-053-010.

22411-053-030

$4.44

12

SPRING, CLUTCH FREE

22411-053-030

$4.44

13

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

14

SPRING, CLUTCH SUB-FREE

22431-046-010

Unavailable

15

PLATE, DRIVE This part replaces 22511-096-000.

22511-096-010

Unavailable

15

PLATE, DRIVE (NOT AVAILABLE)

22511-096-010

Unavailable

16

WEIGHT, CLUTCH This part replaces 22531-033-010.

22531-033-020

Unavailable

16

WEIGHT, CLUTCH

22531-033-020

Unavailable

17

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.56

18

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.56

19

SET-RING (102.5MM)

22901-102-700

Unavailable

20

COLLAR (20MM) (NOT AVAILABLE)

22911-046-000

Unavailable

21

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-046-000.

23110-046-010

Unavailable

21

GEAR, PRIMARY DRIVEN (67T)

23110-046-010

Unavailable

22

GEAR, DRIVE (18T) (NOT AVAILABLE) This part replaces 23111-096-000.

23111-096-305

Unavailable

22

GEAR, DRIVE (18T) (NOT AVAILABLE)

23111-096-305

Unavailable

23

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

24

WASHER, LOCK (16MM)

90431-028-010

$2.75

25

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

25

WASHER, STOPPER

90483-041-000

$1.92

26

CIRCLIP (38MM) (NOT AVAILABLE)

90603-046-000

Unavailable

27

SCREW, PAN (5X8)

93500-05008-0A

$1.49

28

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

29

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

30

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
