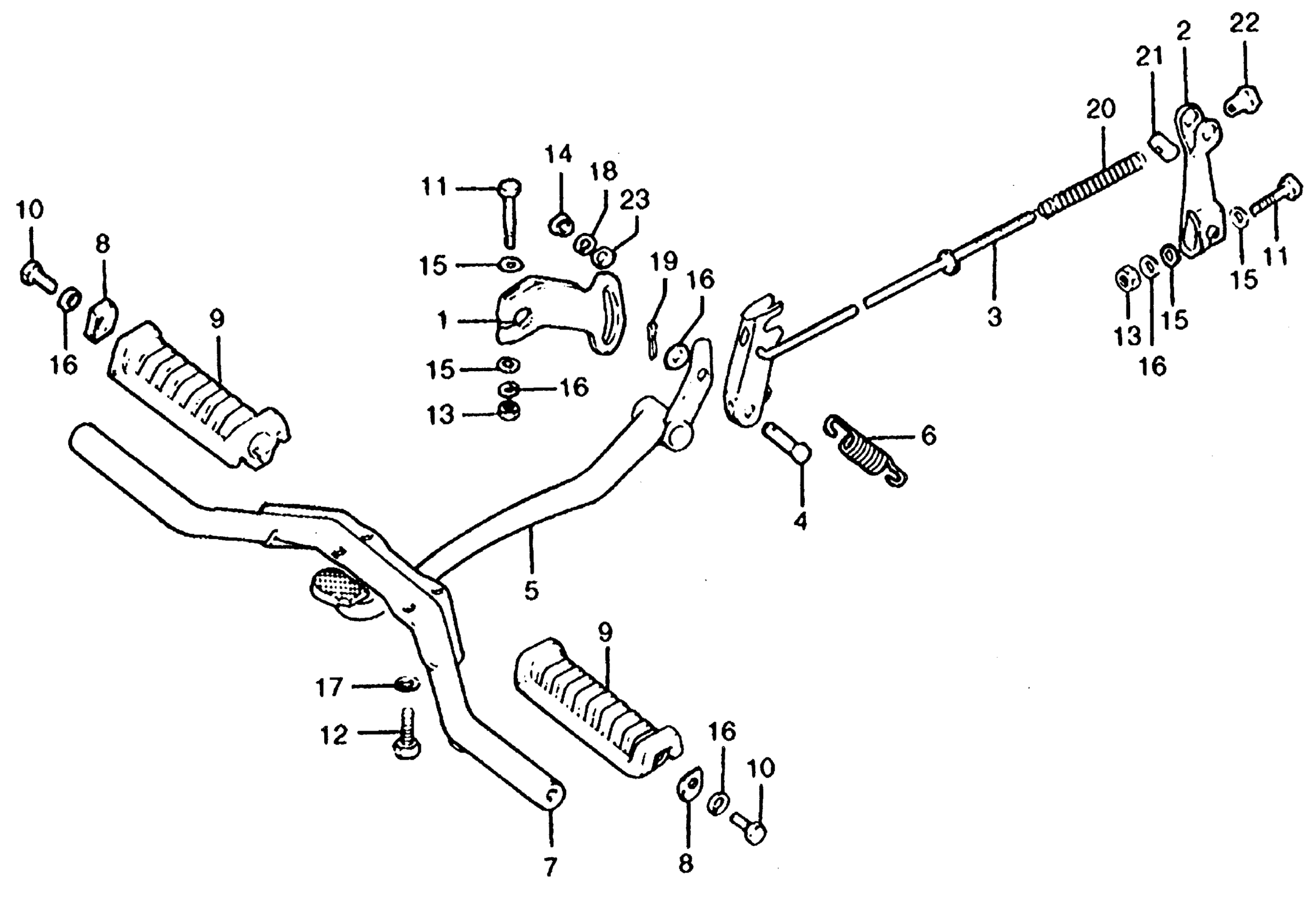

Honda ATC90K3A ALL-TERRAIN, JPN, VIN# ATC90-1400001 BRAKE PEDAL + STEP BAR Diagram

#

Description
Price

1

ARM, TENSIONER LOCK (NOT AVAILABLE)

40512-942-000

Unavailable

2

ARM, RR. BRAKE (NOT AVAILABLE)

43410-918-000

Unavailable

3

LEVER, ESCAPE

43470-918-000

$15.57

4

SHAFT, ESCAPE (NOT AVAILABLE)

43472-918-000

Unavailable

5

PEDAL, BRAKE (NOT AVAILABLE)

46500-942-000

Unavailable

6

SPRING, BRAKE PEDAL

46514-VM3-000

Unavailable

6

SPRING, BRAKE PEDAL This part replaces 46514-942-000.

46514-VM3-000

Unavailable

7

BAR, STEP (NOT AVAILABLE) This part replaces 50610-943-010.

50610-943-305

Unavailable

7

BAR, STEP (NOT AVAILABLE) This part replaces 50610-943-020.

50610-943-305

Unavailable

7

BAR, STEP (NOT AVAILABLE)

50610-943-305

Unavailable

8

STOPPER, STEP RUBBER (NOT AVAILABLE)

50651-942-000

Unavailable

9

RUBBER, STEP (NOT AVAILABLE) This part replaces 50661-942-000.

50661-943-010

Unavailable

10

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

10

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

10

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

11

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

11

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

11

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

12

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

12

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (10MM)

94001-10000-0S

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

WASHER, SPRING (8MM)

94111-10000

$1.49

19

PIN, COTTER (2.0X35)

94201-20350

$1.49

20

SPRING A, BRAKE ROD

95014-73100

$1.49

21

JOINT A, BRAKE ARM

95015-31001

$1.53

22

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

23

WASHER, PLAIN (10MM)

90503-819-000

$2.18
