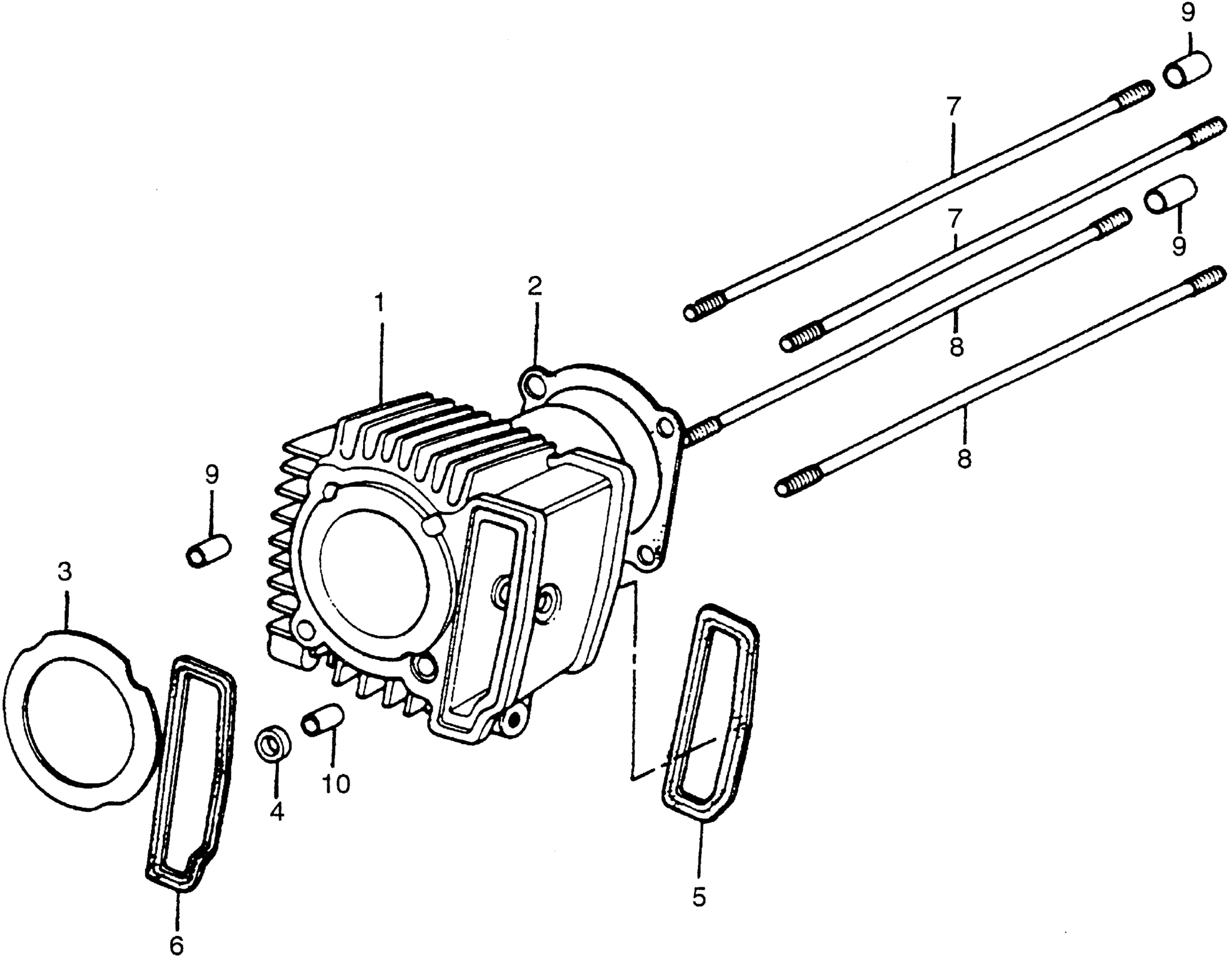

Honda ATC90K2A ALL-TERRAIN, JPN, VIN# ATC90-1300001 CYLINDER Diagram

#

Description

Price

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 1113935

12100-918-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-028-020.

12191-121-630

$7.16

2

GASKET, CYLINDER This part replaces 12191-028-306.

12191-121-630

$7.16

2

GASKET, CYLINDER

12191-121-630

$7.16

3

GASKET, CYLINDER HEAD

12251-028-790

Unavailable

4

GASKET, CYLINDER STUD

12261-105-690

$7.96

5

GASKET A, CAM CHAIN CHAMBER

12901-028-020

$3.77

6

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-105-690.

12902-121-710

$30.85

6

GASKET B, CAM CHAIN CHAMBER

12902-121-710

$30.85

7

BOLT A, CYLINDER STUD

90031-028-010

Unavailable

8

STUD BOLT, CYLINDER (NOT AVAILABLE)

90032-028-010

Unavailable

9

PIN A, DOWEL (10X14)

94301-10140

$2.28

10

PIN A, DOWEL (10X20)

94301-10200

$2.35
