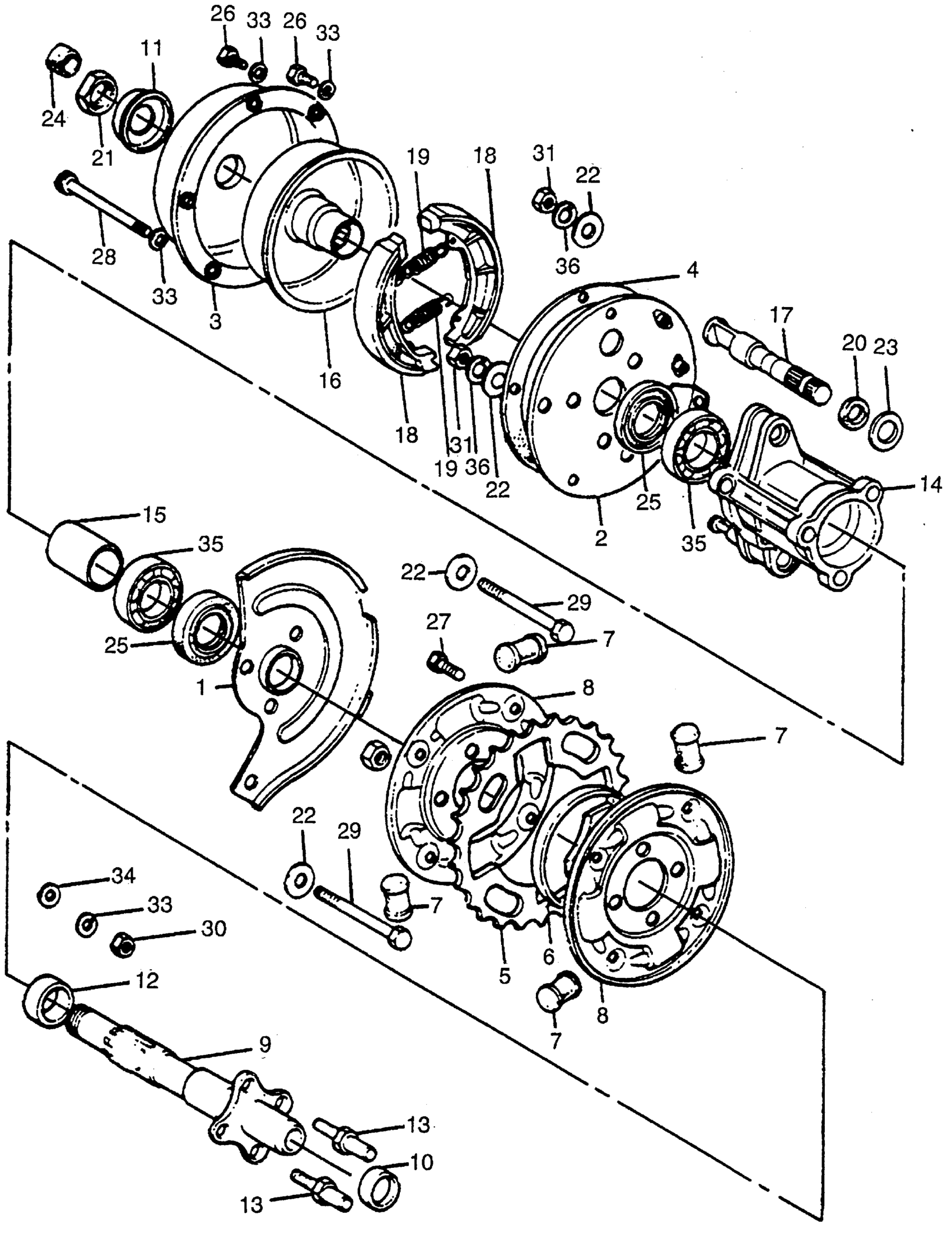

Honda ATC90K2A ALL-TERRAIN, JPN, VIN# ATC90-1300001 BRAKE + REAR HUB Diagram

#

Description
Price

1

COVER, SUB-CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40523-918-040B

Unavailable

2

COVER A, BRAKE DRUM *NH1* (BLACK) (NOT AVAILABLE)

40531-918-030B

Unavailable

3

COVER B, BRAKE DRUM *NH1* (BLACK) (NOT AVAILABLE)

40532-918-000B

Unavailable

4

GASKET, BRAKE DRUM COVER (NOT AVAILABLE)

40533-918-000

Unavailable

5

SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE)

41201-942-000

Unavailable

6

RING, SPROCKET

41202-942-000

Unavailable

7

RUBBER, DAMPER This part replaces 41241-918-000.

41241-943-003

$15.28

8

HOLDER, DAMPER

41245-942-000

Unavailable

9

SHAFT, WHEEL (NOT AVAILABLE)

42300-918-070

Unavailable

10

PLATE, DRIVEN STOPPER (NOT AVAILABLE)

42303-918-000

$8.68

11

WASHER, SEAL (NOT AVAILABLE)

42305-918-000

Unavailable

12

COLLAR, WHEEL SHAFT (NOT AVAILABLE)

42314-918-000

Unavailable

13

BOLT, RR. DRIVE

42316-918-000

Unavailable

14

HUB, RR. WHEEL (NOT AVAILABLE)

42601-918-070

Unavailable

15

COLLAR, RR. AXLE DISTANCE

42621-918-010

Unavailable

16

DRUM, RR. BRAKE *NH1* (BLACK) (NOT AVAILABLE)

42622-918-040B

Unavailable

17

CAM, RR. BRAKE (NOT AVAILABLE)

43141-918-000

Unavailable

18

SHOE, FR. BRAKE (NOT AVAILABLE)

45120-230-000

Unavailable

19

SPRING, FR. BRAKE SHOE (NOT AVAILABLE)

45133-303-000

Unavailable

20

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

21

NUT, RR. AXLE This part replaces 90307-918-030.

90307-968-000

Unavailable

21

NUT, RR. AXLE This part replaces 90307-942-000.

90307-968-000

Unavailable

21

NUT, RR. AXLE This part replaces 90307-958-000.

90307-968-000

Unavailable

21

NUT, RR. AXLE

90307-968-000

Unavailable

22

WASHER (8.5MM)

90521-259-000

$1.92

23

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

23

WASHER (14X26)

90527-634-670

Unavailable

24

RUBBER, SEAT MOUNTING

50801-918-000

Unavailable

25

DUST SEAL (40X62X7)

91203-918-015

$11.05

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

27

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

27

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

28

BOLT, HEX. (6X120) (NOT AVAILABLE)

92000-06120

Unavailable

29

BOLT, HEX. (8X120) This part replaces 92000-08120-0A.

92020-08120-0A

Unavailable

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (8MM)

94001-08000-0S

$1.49

32

NUT, HEX. (10MM)

94001-10000-0S

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

WASHER, SPRING (6MM)

94111-06000

$1.49

35

BEARING, RADIAL BALL (6007) This part replaces 96100-60070.

96100-60070-00

$20.19

35

BEARING, RADIAL BALL (6007)

96100-60070-00

$20.19

36

WASHER, SPRING (8MM)

94111-08000

$1.49
