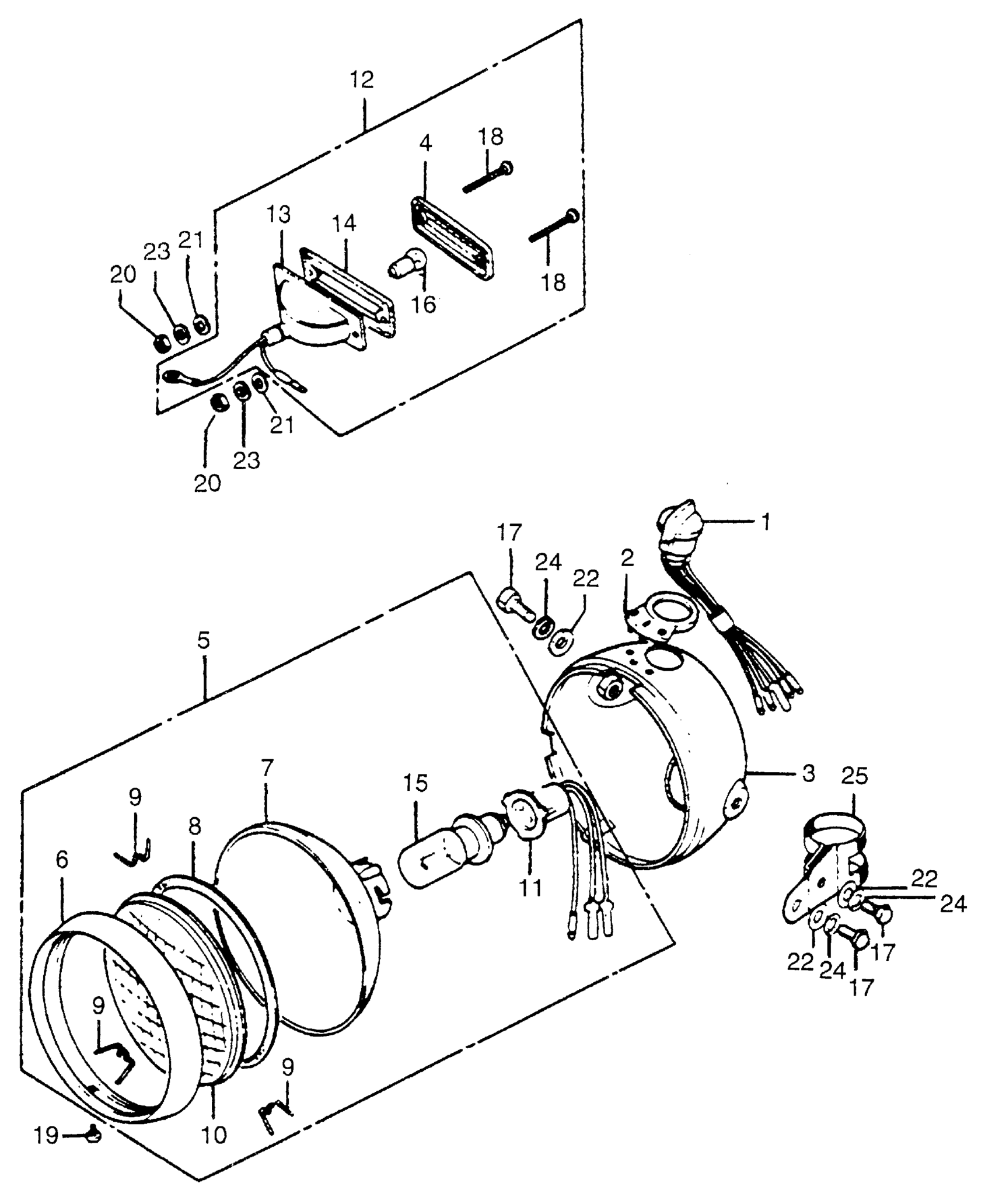

Honda ATC90K1A ALL-TERRAIN, JPN, VIN# US90-200001 HEADLIGHT + TAILLIGHT Diagram

#

Description
Price

1

SWITCH ASSY., LIGHTING (NOT AVAILABLE)

04302-918-000

Unavailable

2

RUBBER, LIGHTING SWITCH (NOT AVAILABLE)

04303-918-000

Unavailable

3

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

04305-918-010B

Unavailable

4

LENS, TAILLIGHT (NOT AVAILABLE)

04306-918-000

Unavailable

5

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33100-061-810.

33100-150-003

Unavailable

5

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-150-003

Unavailable

6

RIM, HEADLIGHT (NOT AVAILABLE)

33101-061-810

Unavailable

7

REFLECTOR, HEADLIGHT

33104-028-003

Unavailable

8

GASKET, HEADLIGHT LENS

33105-028-003

Unavailable

9

SPRING, UNIT HOLDER (STANLEY)

33108-028-013

$2.34

10

LENS, HEADLIGHT

33121-028-013

Unavailable

11

SOCKET, HEADLIGHT

33130-GK4-631

$13.36

11

SOCKET, HEADLIGHT This part replaces 33130-051-690.

33130-GK4-631

$13.36

12

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-918-670

Unavailable

15

BULB, HEADLIGHT (6V15/15W) (STANLEY)

34901-001-025

$19.11

16

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

17

BOLT, HEX. (8X16) This part replaces 92000-08016-0B.

92101-08016-0B

$2.11

17

BOLT, HEX. (8X16)

92101-08016-0B

$2.11

19

SCREW, OVAL (5X8)

93700-05008-0A

$1.49

20

NUT, HEX. (4MM)

94001-04000-0S

$1.49

21

WASHER, PLAIN (4MM)

94101-04000

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, SPRING (4MM)

94111-04000

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49
