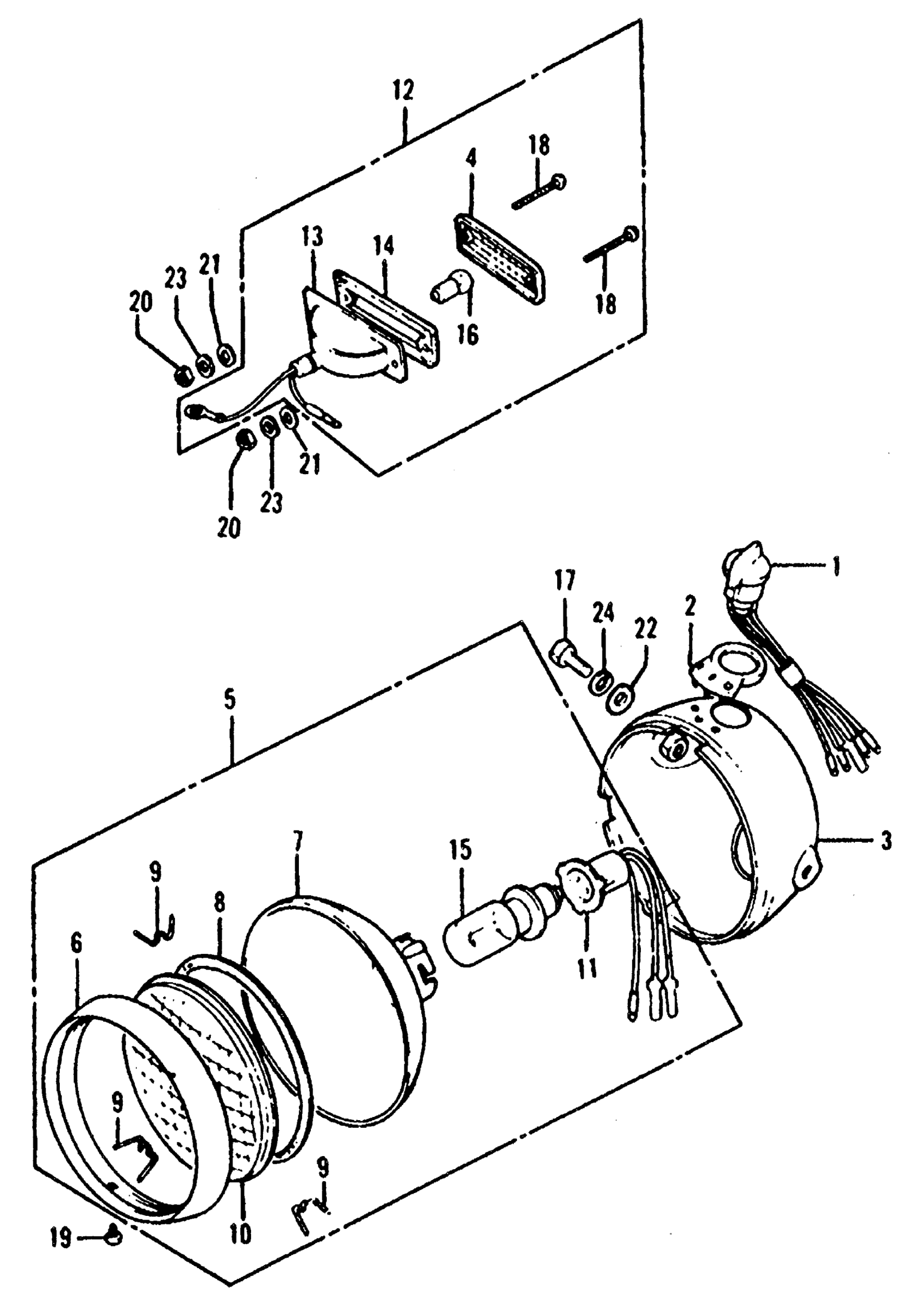

Honda ATC90A (78) ALL TERRAIN CYCLE, JPN, VIN# ATC90-1700001 HEADLIGHT + TAILLIGHT Diagram

#

Description
Price

1

SWITCH ASSY., LIGHTING (NOT AVAILABLE)

04302-918-000

Unavailable

2

RUBBER, LIGHTING SWITCH (NOT AVAILABLE)

04303-918-000

Unavailable

3

CASE, HEADLIGHT *R20* (LIGHT SCARLET RED) (NOT AVAILABLE)

33150-942-003TR

Unavailable

4

LENS, TAILLIGHT

32152-942-000

Unavailable

5

HEADLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN 1703489 This part replaces 33100-061-810.

33100-150-003

Unavailable

5

HEADLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN 1703489

33100-150-003

Unavailable

5

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1709490

33100-942-003

Unavailable

6

RIM, HEADLIGHT (NOT AVAILABLE)

33101-061-810

Unavailable

7

REFLECTOR, HEADLIGHT | Use up to Frame SN 1709489

33104-028-003

Unavailable

7

REFLECTOR, HEADLIGHT | Use from Frame SN 1709490

33104-942-003

Unavailable

8

GASKET, HEADLIGHT LENS

33105-028-003

Unavailable

9

SPRING, UNIT HOLDER (STANLEY)

33108-028-013

$2.34

10

LENS, HEADLIGHT

33121-028-013

Unavailable

11

SOCKET, HEADLIGHT | Use up to Frame SN 1709489

33130-GK4-631

$13.36

11

SOCKET, HEADLIGHT | Use up to Frame SN 1709489 This part replaces 33130-051-690.

33130-GK4-631

$13.36

11

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 1709490

33130-942-003

Unavailable

12

TAILLIGHT ASSY.

33700-942-000

Unavailable

13

HOUSING (SOURCE: VINTAGE PARTS INC.)

34351-611-000

Unavailable

14

BASE, GASKET (NOT AVAILABLE)

34356-611-000

Unavailable

15

BULB, HEADLIGHT (6V15/15W) (STANLEY)

34901-001-025

$19.11

15

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-001-671.

34901-001-025

$19.11

16

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

17

BOLT, HEX. (8X16) This part replaces 92000-08016-0B.

92101-08016-0B

$2.11

17

BOLT, HEX. (8X16)

92101-08016-0B

$2.11

18

SCREW, PAN (3X20) (NOT AVAILABLE)

93500-03020-3C

Unavailable

19

SCREW, OVAL (5X8) (SOURCE: VINTAGE PARTS INC.)

93700-05008-0B

Unavailable

20

NUT, HEX. (3MM)

94001-03000-0S

$1.49

21

WASHER, PLAIN (3MM)

94101-03000

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, SPRING (3MM)

94111-03000

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49
