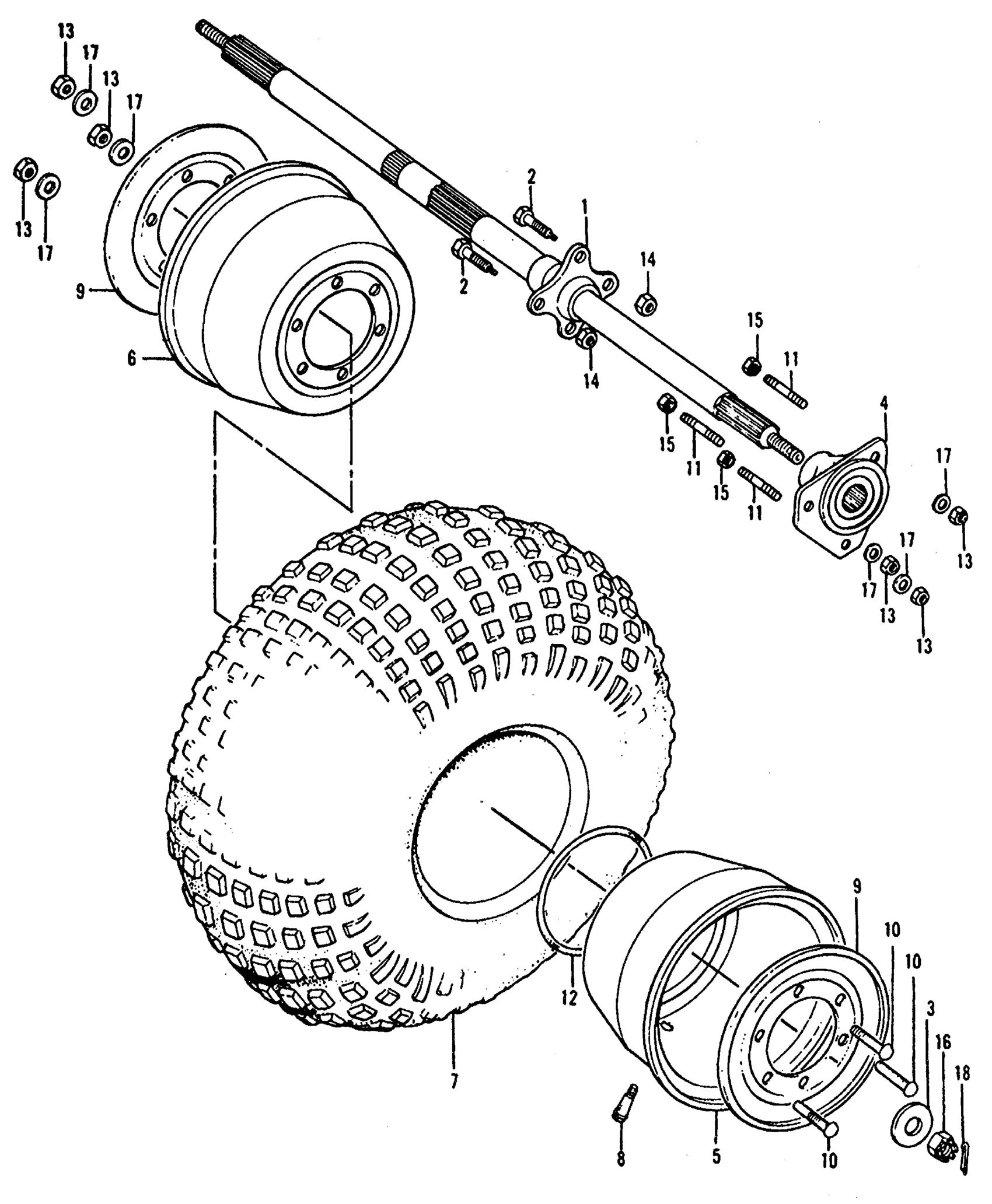

Honda ATC90A (77) ALL TERRAIN CYCLE, JPN, VIN# ATC90-1600001 REAR WHEEL + AXLE Diagram

#

Description
Price

1

AXLE, RR. WHEEL

42300-942-000

Unavailable

2

BOLT, DRIVE FLANGE

42316-942-000

Unavailable

3

WASHER (15MM) (NOT AVAILABLE)

42322-942-000

Unavailable

4

BOSS, RR. WHEEL

42401-942-300

Unavailable

5

RIM, RR. WHEEL (INNER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

42713-943-000ZA

Unavailable

5

RIM, RR. WHEEL (INNER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 42716-942-000AU.

42713-943-000ZA

Unavailable

5

RIM, RR. WHEEL (INNER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 42713-950-000ZA.

42713-943-000ZA

Unavailable

6

RIM, RR. (OUTER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 42717-942-000AU.

42712-943-000ZA

Unavailable

6

RIM, RR. (OUTER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

42712-943-000ZA

Unavailable

6

RIM, RR. (OUTER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 42712-950-000ZA.

42712-943-000ZA

Unavailable

7

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU)

42750-VM6-681

Unavailable

7

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU) This part replaces 42750-968-000.

42750-VM6-681

Unavailable

7

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU) This part replaces 42750-968-003.

42750-VM6-681

Unavailable

7

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU) This part replaces 42751-942-013.

42750-VM6-681

Unavailable

7

TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU) This part replaces 42751-950-003.

42750-VM6-681

Unavailable

7

TIRE, WHEEL (22X11-8) (OHTSU) (NOT AVAILABLE) This part replaces 42751-942-811.

42751-961-811

Unavailable

7

TIRE, WHEEL (22X11.0-8) (OHTSU) (NOT AVAILABLE)

42751-961-811

Unavailable

8

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

8

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

9

PATCH, SUPPORT PLATE *NH35* (CLOUD SILVER)

44714-942-000AU

Unavailable

10

BOLT, WHEEL

90101-942-000

Unavailable

11

BOLT, STUD (8X38) (NOT AVAILABLE)

90927-937-000

Unavailable

12

O-RING, WHEEL (126.5X3.5)

91351-937-000

$19.17

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

NUT, HEX. (10MM)

94001-10000-0S

$1.49

15

NUT, HEX. (8MM)

94002-08000-0S

$1.49

16

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

PIN, COTTER (3.0X45)

94201-30450

$1.49
