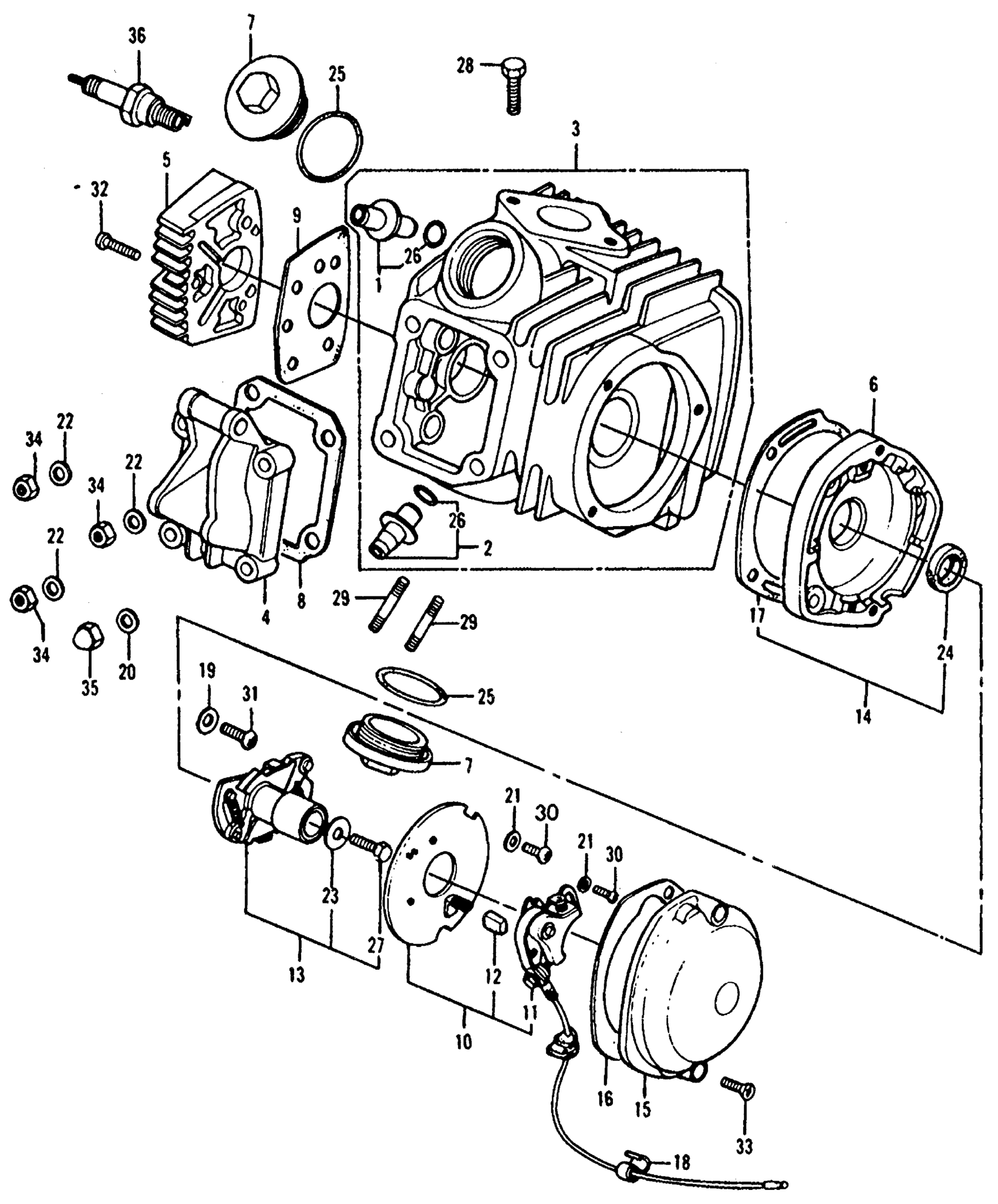

Honda ATC90A (77) ALL TERRAIN CYCLE, JPN, VIN# ATC90-1600001 CYLINDER HEAD + CYLINDER HEAD COVER Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-VM6-000.

12021-943-000

Unavailable

1

GUIDE, VALVE This part replaces 12021-028-340.

12021-943-000

Unavailable

1

GUIDE, VALVE

12021-943-000

Unavailable

1

GUIDE, VALVE This part replaces 12201-028-340.

12021-943-000

Unavailable

2

GUIDE, IN./EX. VALVE

12021-128-405

$17.91

2

GUIDE, IN./EX. VALVE This part replaces 12023-028-330.

12021-128-405

$17.91

2

GUIDE, IN./EX. VALVE This part replaces 12023-028-340.

12021-128-405

$17.91

2

GUIDE, IN./EX. VALVE This part replaces 12023-028-790.

12021-128-405

$17.91

2

GUIDE, IN./EX. VALVE This part replaces 12023-943-000.

12021-128-405

$17.91

2

GUIDE, IN./EX. VALVE This part replaces 12232-028-790.

12021-128-405

$17.91

3

CYLINDER HEAD (NOT AVAILABLE)

12200-028-792

Unavailable

4

COVER, CYLINDER HEAD

12301-918-000

Unavailable

5

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-000.

12331-028-020

Unavailable

5

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-010.

12331-028-020

Unavailable

5

COVER, VALVE ROCKER ARM SIDE

12331-028-020

Unavailable

5

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-128-000.

12331-028-020

Unavailable

6

BASE, POINTS (NOT AVAILABLE) This part replaces 12332-028-030.

12332-028-040

Unavailable

7

CAP, VALVE ADJ.

12361-028-000

$8.80

8

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-000.

12391-121-630

$5.23

8

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-306.

12391-121-630

$5.23

8

GASKET, CYLINDER HEAD COVER

12391-121-630

$5.23

9

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-010.

12394-121-630

$4.84

9

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-020.

12394-121-630

$4.84

9

GASKET, R. CYLINDER HEAD SIDE COVER

12394-121-630

$4.84

10

POINTS ASSY. (DENSO) | Use up to Engine SN 1627498

30200-107-014

$58.62

10

POINTS ASSY. (TOYO) | Use from Engine SN 1627499

30200-107-154

Unavailable

11

POINTS (DENSO)

30202-107-004

$43.04

11

POINTS (TOYO)

30202-107-154

$27.89

12

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

13

ADVANCER ASSY., SPARK (DENSO) (NOT AVAILABLE) | Use up to Engine SN 1627498

30220-918-004

Unavailable

13

ADVANCER ASSY., SPARK | Use from Engine SN 1627499

30220-918-005

Unavailable

14

BASE ASSY., POINTS This part replaces 30360-028-020.

30360-028-030

Unavailable

14

BASE ASSY., POINTS

30360-028-030

Unavailable

15

COVER, POINTS

30370-028-000

Unavailable

15

COVER, POINTS This part replaces 30370-128-000.

30370-028-000

Unavailable

16

GASKET, POINT COVER This part replaces 30391-028-000.

30391-459-952

$4.21

16

GASKET, POINT COVER This part replaces 30391-459-950.

30391-459-952

$4.21

17

GASKET, POINTS BASE This part replaces 30392-028-020.

30392-028-306

Unavailable

17

GASKET, POINTS BASE

30392-028-306

Unavailable

18

CLIP, POINT LEAD WIRE (NOT AVAILABLE)

32901-028-000

Unavailable

19

WASHER, SEALING (6MM)

90441-028-010

$2.92

20

WASHER, SEALING (8MM)

90442-028-000

$1.77

21

WASHER (5MM)

90482-028-000

$2.09

22

WASHER (8MM)

90483-028-000

$1.51

23

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

24

OIL SEAL (13X22X5)

91201-028-005

$8.11

25

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

25

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

25

O-RING (33.5X3.0)

91304-HB3-003

$7.70

26

O-RING (9.5X1.6)

91306-028-000

$2.92

27

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

27

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

28

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

28

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

28

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

29

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

29

BOLT, STUD (6X18)

92900-06018-0B

$1.55

30

SCREW, PAN (5X10)

93500-05010-0A

$1.49

31

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

31

SCREW, PAN (6X12)

93500-06012-0A

$1.49

31

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

32

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

32

SCREW, PAN (6X20)

93500-06020-0A

$1.49

33

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

34

NUT, HEX. (8MM)

94001-08000-0S

$1.49

35

NUT, CAP (8MM)

94021-08000-0S

$1.55

36

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.44

36

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.44
