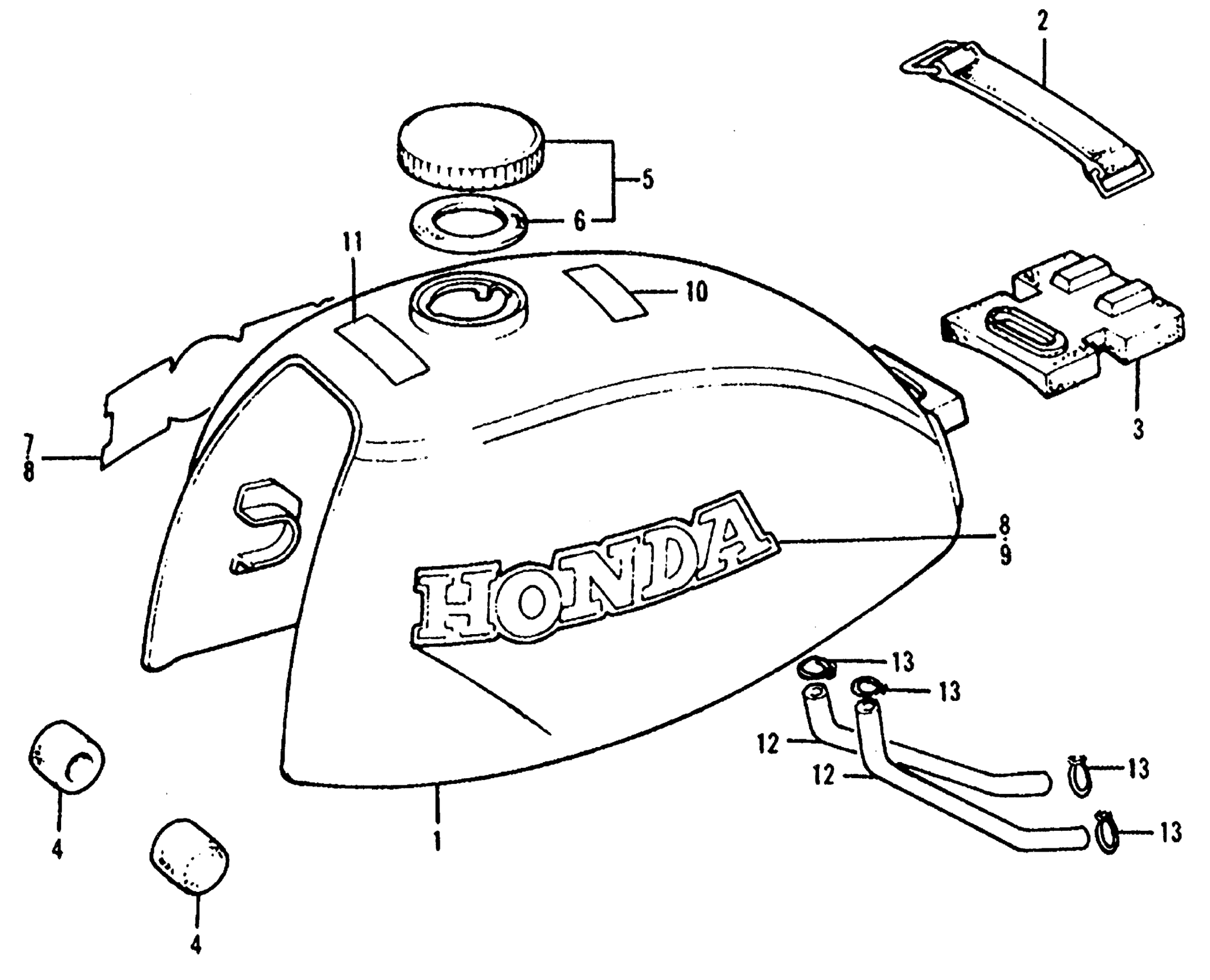

Honda ATC90A (76) ALL TERRAIN CYCLE, JPN, VIN# ATC90-1500001 FUEL TANK Diagram

TANK ASSY., FUEL *R20* (LIGHT SCARLET RED) (NOT AVAILABLE) This part replaces 17500-942-020TR.

17500-942-040TR

Unavailable

TANK ASSY., FUEL *R20* (LIGHT SCARLET RED) (NOT AVAILABLE)

17500-942-040TR

Unavailable

BAND, FUEL TANK (NOT AVAILABLE)

17505-918-000

Unavailable

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE)

17506-918-000

Unavailable

RUBBER, FR. FUEL TANK

17611-303-000

$7.10

CAP, FUEL FILLER This part replaces 17610-102-730.

17620-102-730

Unavailable

CAP, FUEL FILLER

17620-102-730

Unavailable

GASKET This part replaces 17631-001-000.

17631-096-702

$2.36

GASKET This part replaces 17631-096-701.

17631-096-702

$2.36

EMBLEM, FUEL TANK

87123-942-020

Unavailable

PLATE, CAUTION (NOT AVAILABLE)

87505-918-010

Unavailable

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.58

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.58

BULK HOSE, FUEL (5.5X3000) (5.5X150)

95001-55003-60M

$42.48

CLIP, TUBE (B10)

95002-02100

$1.72
