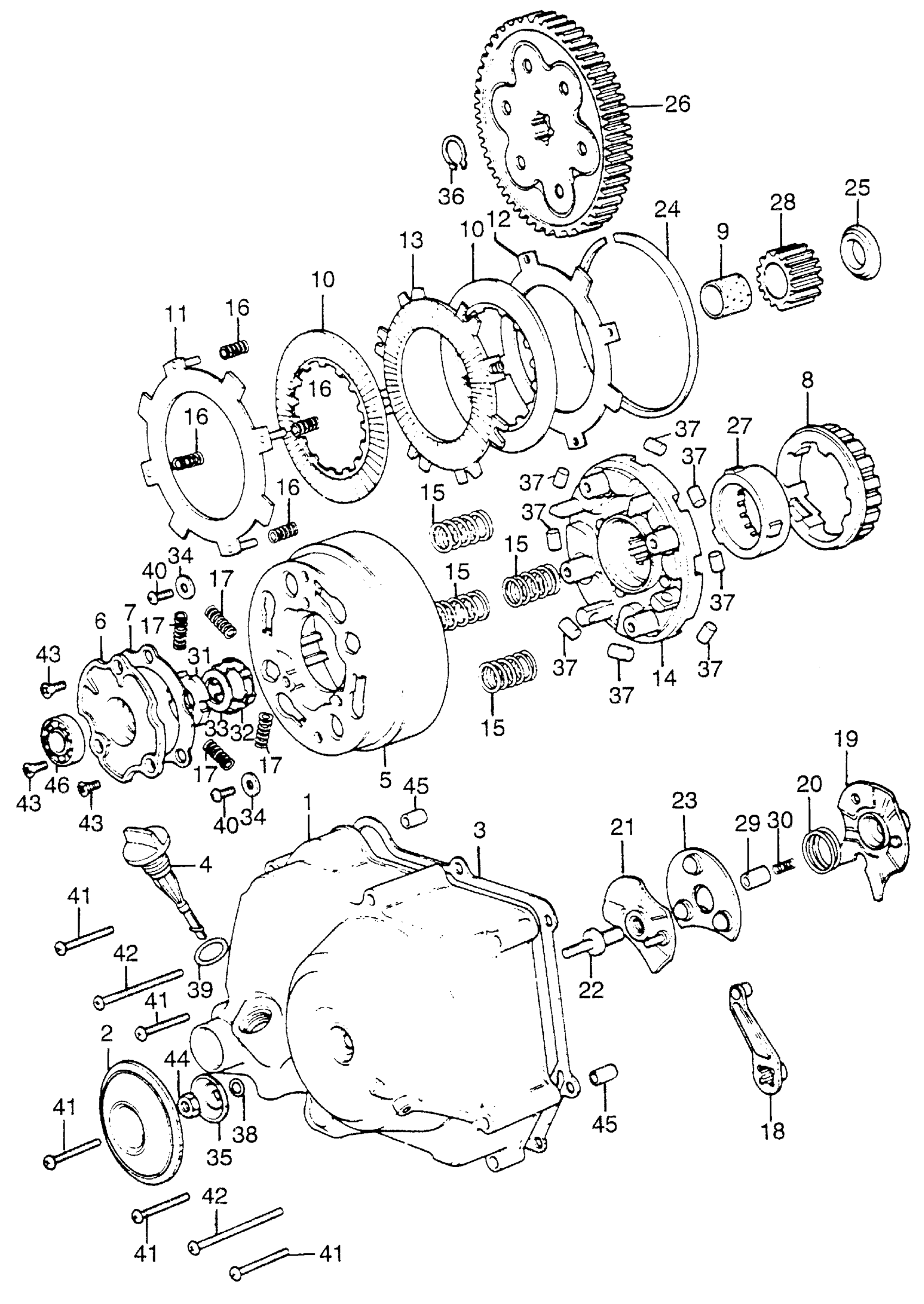

Honda ATC70K1A (74) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# ATC70-1100001 RIGHT CRANKSHAFT COVER @CLUTCH Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-937-000

Unavailable

2

PROTECTOR, R. CRANKCASE COVER

11335-102-700

$11.67

3

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$13.57

3

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-681.

11394-GW8-682

$13.57

3

GASKET, R. CRANKCASE COVER

11394-GW8-682

$13.57

3

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$13.57

3

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$13.57

4

DIPSTICK, OIL

15650-098-730

$7.78

5

CLUTCH (OUTER) (NOT AVAILABLE)

22101-040-030

Unavailable

6

COVER, CLUTCH (OUTER) (NOT AVAILABLE)

22111-040-000

Unavailable

7

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-040-000.

22119-040-010

$3.40

7

GASKET, CLUTCH COVER (OUTER)

22119-040-010

$3.40

8

CENTER, CLUTCH (17T)

22120-040-030

$72.13

9

GUIDE, CLUTCH CENTER This part replaces 22131-035-020.

22131-035-030

$20.39

9

GUIDE, CLUTCH CENTER

22131-035-030

$20.39

10

DISK A, CLUTCH FRICTION

22201-GW8-681

$10.04

10

DISK A, CLUTCH FRICTION This part replaces 22201-086-010.

22201-GW8-681

$10.04

10

DISK A, CLUTCH FRICTION This part replaces 22201-092-000.

22201-GW8-681

$10.04

10

DISK A, CLUTCH FRICTION This part replaces 22201-092-306.

22201-GW8-681

$10.04

11

PLATE A, CLUTCH

22310-GB0-910

$14.59

11

PLATE A, CLUTCH This part replaces 22310-041-010.

22310-GB0-910

$14.59

12

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$9.83

12

PLATE B, CLUTCH

22321-046-020

$9.83

13

DISK B, CLUTCH FRICTION

22331-GW8-681

$10.04

13

DISK B, CLUTCH FRICTION This part replaces 22331-086-000.

22331-GW8-681

$10.04

13

DISK B, CLUTCH FRICTION This part replaces 22331-126-900.

22331-GW8-681

$10.04

14

PLATE, DRIVE This part replaces 22351-086-010.

22351-086-020

Unavailable

14

PLATE, DRIVE

22351-086-020

Unavailable

15

SPRING, CLUTCH

22401-092-010

$3.77

16

SPRING, CLUTCH FREE

22411-092-000

Unavailable

17

SPRING, CLUTCH DAMPER

22421-040-000

$2.03

18

LEVER, CLUTCH

22811-040-020

$32.34

19

PLATE, CLUTCH CAM This part replaces 22820-918-000.

22820-918-020

$20.42

19

PLATE, CLUTCH CAM This part replaces 22820-918-010.

22820-918-020

$20.42

19

PLATE, CLUTCH CAM

22820-918-020

$20.42

20

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

21

PLATE, CLUTCH LIFTER

22830-041-000

$11.73

22

BOLT, CLUTCH ADJUSTING

22846-040-010

$6.30

23

RETAINER, CLUTCH BALL This part replaces 22860-041-000.

22860-046-000

$7.04

23

RETAINER, CLUTCH BALL

22860-046-000

$7.04

24

SET-RING (101.5MM)

22901-001-000

$4.02

25

COLLAR (17MM)

22911-GB4-680

$6.74

25

COLLAR (17MM) This part replaces 22911-035-010.

22911-GB4-680

$6.74

26

GEAR, PRIMARY DRIVEN (69T) This part replaces 23110-086-020.

23110-086-030

$133.18

26

GEAR, PRIMARY DRIVEN (69T)

23110-086-030

$133.18

27

OUTER, DRIVE GEAR (17T)

23112-086-020

Unavailable

28

GEAR, PRIMARY DRIVE (17T)

23120-086-020

$48.48

29

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

29

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

30

SPRING, OIL THROUGH

25555-065-000

$1.63

31

NUT, LOCK (14MM) This part replaces 90231-087-000.

90231-087-010

$3.80

31

NUT, LOCK (14MM)

90231-087-010

$3.80

32

WASHER, LOCK (14MM)

90431-086-000

$3.03

33

WASHER B, LOCK

90432-086-000

$4.44

34

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

34

WASHER, STOPPER

90483-041-000

$1.92

35

WASHER, CLUTCH ADJUSTER This part replaces 90485-102-700.

90485-102-701

Unavailable

35

WASHER, CLUTCH ADJUSTER

90485-102-701

Unavailable

36

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

37

ROLLER (8X10)

91101-039-000

Unavailable

38

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

38

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

39

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

39

O-RING (18X3)

91307-035-000

$2.92

40

BOLT, FLANGE (8X62)

93500-05008-0A

$1.49

41

SCREW, PAN (6X40) This part replaces 93500-06038.

93500-06040-0A

$1.49

41

SCREW, PAN (6X40) This part replaces 93500-06038-0A.

93500-06040-0A

$1.49

41

SCREW, PAN (6X40)

93500-06040-0A

$1.49

42

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

42

SCREW, PAN (6X65)

93500-06065-0A

$1.53

43

SCREW, FLAT (5X10)

93600-05010-0A

$1.49

44

NUT, HEX. (8MM)

94030-08000

$1.49

45

PIN A, DOWEL (8X12)

94301-08120

$2.19

46

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

46

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
