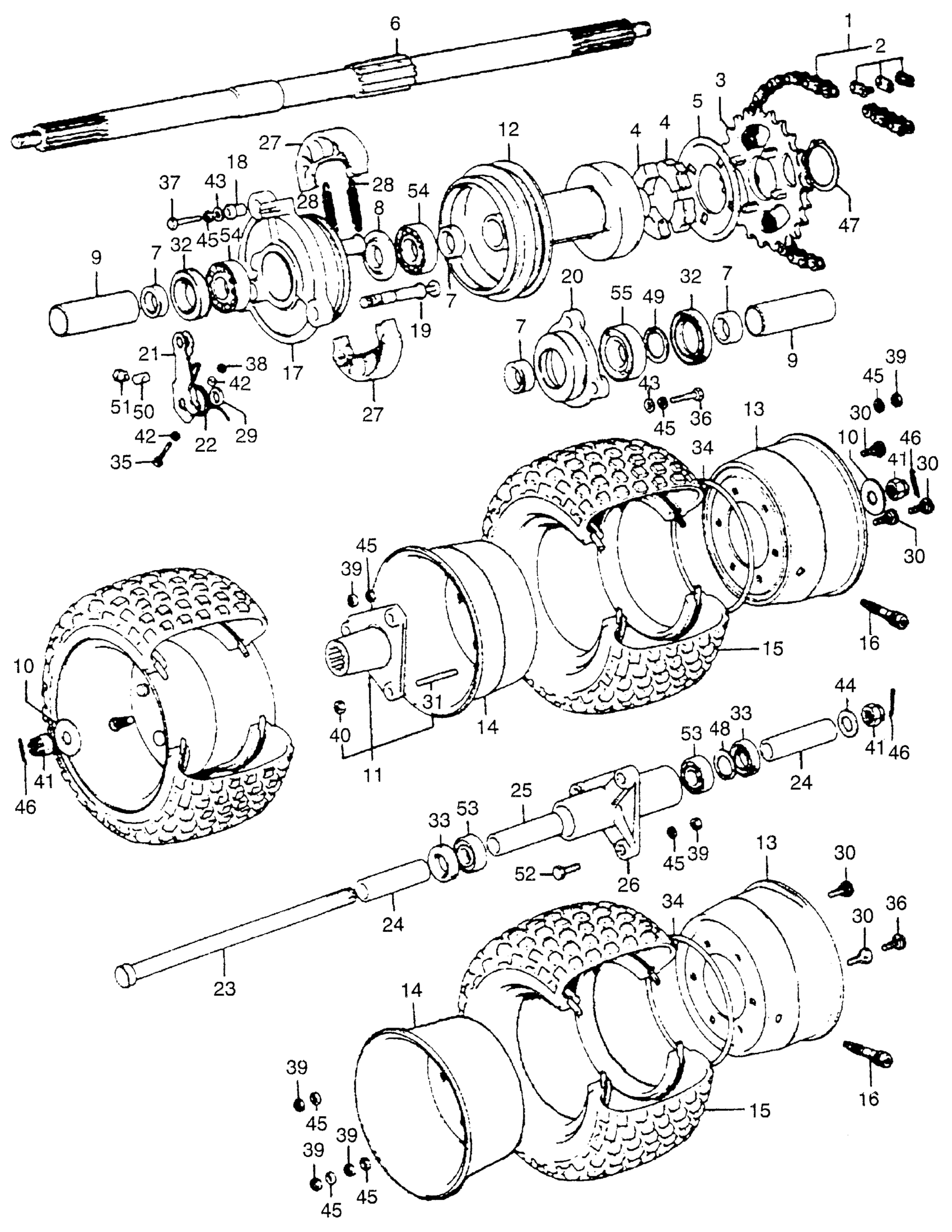

Honda ATC70K1A (74) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# ATC70-1100001 FRONT WHEEL@REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (76L) This part replaces 405W3-165-505.

40530-181-952

$41.73

1

CHAIN, DRIVE (76L) This part replaces 40530-165-791.

40530-181-952

$41.73

1

CHAIN, DRIVE (76L) This part replaces 40530-165-794.

40530-181-952

$41.73

1

CHAIN, DRIVE (RK420M-76RJ) (TAKASAGO)

40530-181-952

$41.73

1

CHAIN, DRIVE (76L) This part replaces 40530-937-003.

40530-181-952

$41.73

2

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

2

MASTER LINK (DAIDO)

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

3

SPROCKET, FINAL DRIVEN (35T) This part replaces 41201-098-970.

41201-126-920

Unavailable

3

SPROCKET, FINAL DRIVEN (35T)

41201-126-920

Unavailable

4

DAMPER, RR. WHEEL

41241-051-000

$7.31

5

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

6

AXLE, RR. WHEEL

42301-937-000

Unavailable

7

COLLAR, PANEL (NOT AVAILABLE)

42303-937-000

Unavailable

8

SPACER, R. PANEL (NOT AVAILABLE)

42305-937-000

Unavailable

9

PIPE, RR. AXLE (NOT AVAILABLE)

42313-937-000

Unavailable

10

WASHER (15MM) (NOT AVAILABLE) This part replaces 42322-918-010.

42322-942-000

Unavailable

10

WASHER (15MM) (NOT AVAILABLE)

42322-942-000

Unavailable

11

BOSS, RR. WHEEL (NOT AVAILABLE)

42400-937-000

Unavailable

12

HUB, RR. WHEEL

42601-937-000

Unavailable

13

RIM, WHEEL (OUTER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

42716-937-000S

Unavailable

14

RIM, WHEEL (INNER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

42717-937-000S

Unavailable

15

TIRE (16X8.0-7) (BS)

4275Z-HB2-003

Unavailable

15

TIRE (16X8.0-7) (BS) This part replaces 42751-HB2-770.

4275Z-HB2-003

Unavailable

15

TIRE (16X8.0-7) (BS) This part replaces 42751-937-000.

4275Z-HB2-003

Unavailable

15

TIRE (16X8.0-7) (BS) This part replaces 42751-957-003.

4275Z-HB2-003

Unavailable

15

TIRE (16X8.0-7) (BS) This part replaces 42751-957-013.

4275Z-HB2-003

Unavailable

16

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

16

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

16

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

16

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

16

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

16

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

16

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

17

PANEL, R. (NOT AVAILABLE)

43100-937-000

Unavailable

18

CUSHION, PANEL (NOT AVAILABLE)

43110-937-000

Unavailable

19

CAM, RR. BRAKE

43141-937-010

Unavailable

20

PANEL, L. (NOT AVAILABLE)

43201-937-000

Unavailable

21

ARM, RR. BRAKE (NOT AVAILABLE)

43410-937-000

Unavailable

22

SPRING, RR. BRAKE ARM RETURN (NOT AVAILABLE)

43413-937-000

Unavailable

23

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-937-000

Unavailable

24

COLLAR, FR. (NOT AVAILABLE)

44311-937-000

Unavailable

25

COLLAR, FR. CENTER (NOT AVAILABLE)

44313-937-000

Unavailable

26

HUB, FR. WHEEL (NOT AVAILABLE)

44601-937-000

Unavailable

27

SHOE, BRAKE (SEE KIT P/N--451A0-001-670) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

28

SPRING, BRAKE SHOE

45133-028-000

$2.03

29

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

30

BOLT, WHEEL

90101-937-000

Unavailable

31

BOLT, STUD (8X38) (NOT AVAILABLE)

90927-937-000

Unavailable

32

OIL SEAL (35X52X7) (NOK) | Use from Frame SN 1005226.

91201-402-015

$13.79

32

OIL SEAL (35X52X7) (NOK) | Use from Frame SN 1005226. This part replaces 91201-937-000.

91201-402-015

$13.79

33

OIL SEAL (21X35X8) This part replaces 91202-937-000.

91213-MA6-003

Unavailable

34

O-RING, WHEEL (126.5X3.5)

91351-937-000

$19.17

35

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

35

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

35

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

36

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

36

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

37

BOLT, HEX. (8X35) This part replaces 92000-08035.

92101-08035-0A

$1.49

37

BOLT, HEX. (8X35) This part replaces 92000-08035-0A.

92101-08035-0A

$1.49

37

BOLT, HEX. (8X35) This part replaces 92000-08036.

92101-08035-0A

$1.49

37

BOLT, HEX. (8X35) This part replaces 92000-08036-0A.

92101-08035-0A

$1.49

37

BOLT, HEX. (8X35)

92101-08035-0A

$1.49

37

BOLT, HEX. (8X35) This part replaces 92101-08036-0A.

92101-08035-0A

$1.49

38

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM)

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

39

NUT, HEX. (8MM)

94001-08000-0S

$1.49

40

NUT, HEX. (8MM)

94002-08000-0S

$1.49

41

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

42

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

42

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

42

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

43

WASHER, PLAIN (8MM)

94101-08000

$1.49

44

WASHER, PLAIN (14MM)

94101-14000

$1.49

45

WASHER, SPRING (8MM)

94111-08000

$1.49

46

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

46

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

46

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

46

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

47

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

48

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

49

CIRCLIP (INNER) (52MM)

94520-52000

$3.13

50

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

50

JOINT A, BRAKE ARM

95015-31001

$1.53

51

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

52

BOLT, HEX. (8X25) (NOT AVAILABLE) This part replaces 95100-08025.

95100-08025-00

Unavailable

52

BOLT, HEX. (8X25) (NOT AVAILABLE)

95100-08025-00

Unavailable

53

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49

54

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75

55

BEARING, RADIAL BALL (6205U) (SOURCE: VINTAGE PARTS INC.)

96140-62050-10

Unavailable
