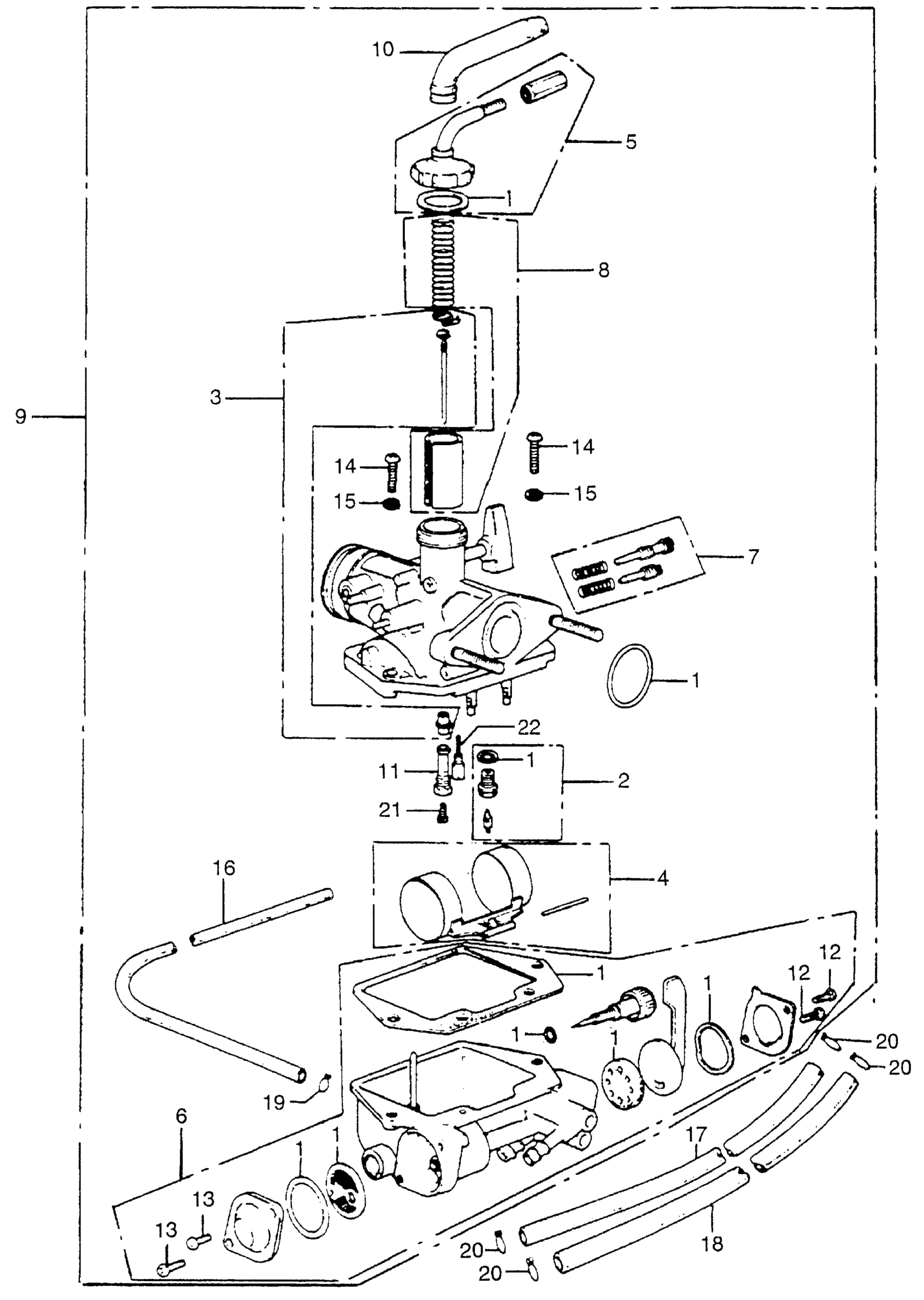

Honda ATC70K1A (74) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# ATC70-1100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-098-004.

16010-102-305

$32.41

1

GASKET SET

16010-102-305

$32.41

2

VALVE SET, FLOAT This part replaces 16011-937-004.

16011-124-405

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-937-004

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

4

FLOAT SET

16013-116-700

$28.61

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

5

TOP SET (NOT AVAILABLE)

16014-918-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE) This part replaces 16015-102-004.

16015-102-700

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-102-700

Unavailable

7

SCREW SET A

16016-046-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-937-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-937-004

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-121-004.

16118-121-014

Unavailable

10

CAP, CABLE SEALING

16118-121-014

Unavailable

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-937-004

Unavailable

12

SCREW, PAN (3X5)

93500-03005-0A

$1.49

13

SCREW, PAN (3X7) (NOT AVAILABLE)

93500-03007-0A

Unavailable

14

SCREW, PAN (4X12)

93500-04012-0A

$1.49

15

WASHER, SPRING (4MM)

94111-04000

$1.49

16

BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M)

95001-35003-60M

$20.85

17

BULK HOSE, FUEL (5.5X3000) (5.5X100) (BULK HOSE: 95001-55008-40M)

95001-55003-60M

$47.32

18

BULK HOSE, FUEL (5.5X3000) (5.5X100) (BULK HOSE: 95001-55008-40M)

95001-55003-60M

$47.32

19

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

20

CLIP, TUBE (B10)

95002-02100

$1.90

21

JET, MAIN (#60) (NOT AVAILABLE)

99114-076-0600

Unavailable

22

JET, SLOW (#35) (NOT AVAILABLE)

99124-246-0350

Unavailable
