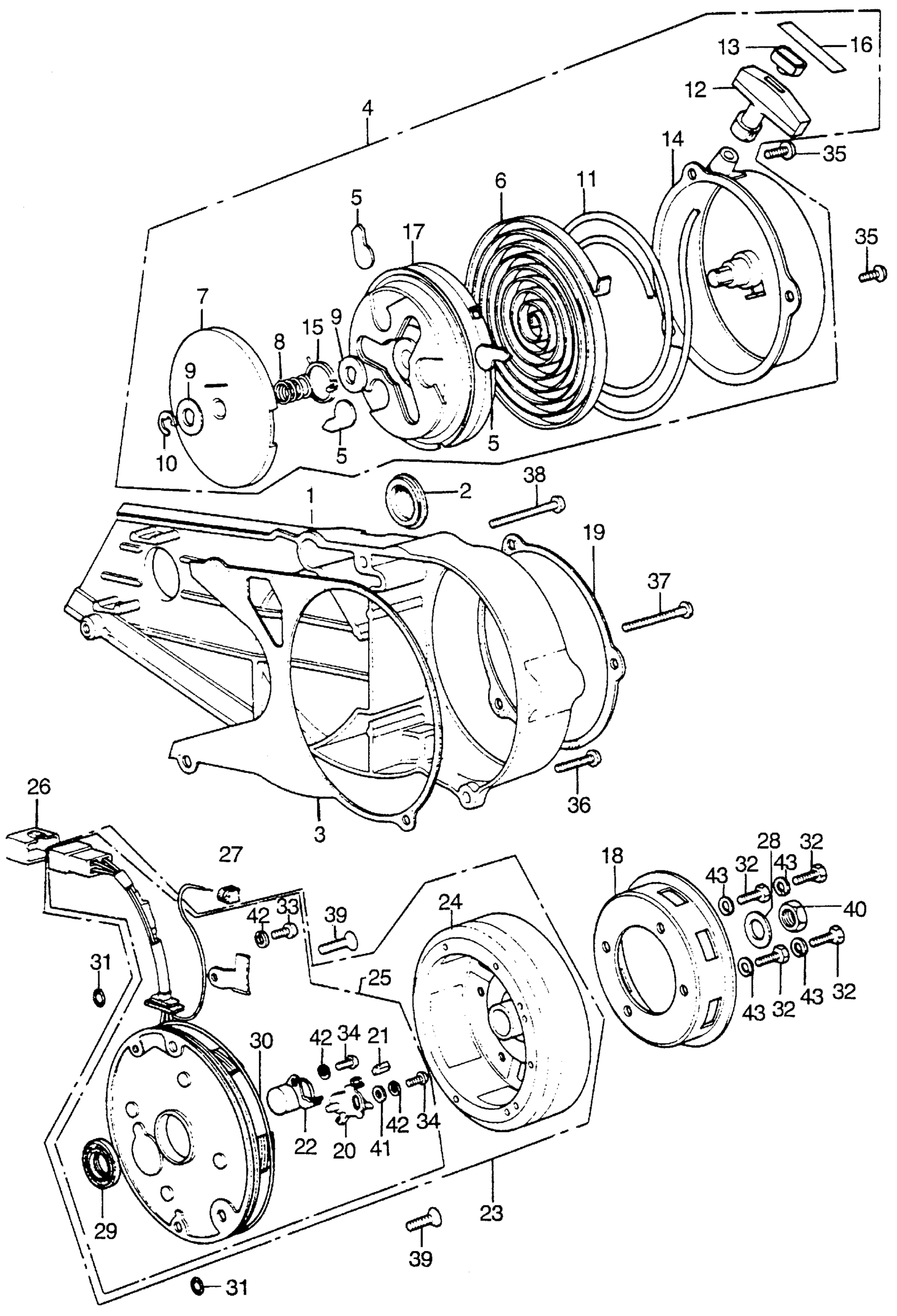

Honda ATC70A ALL-TERRAIN, JPN, VIN# ATC70-1000001 LEFT CRANKCASE COVER + ALTERNATOR + RECOIL STARTER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-937-000

Unavailable

2

CAP, CLUTCH ADJUSTING HOLE

11391-351-000

Unavailable

3

GASKET, L. This part replaces 11401-041-000.

11401-041-306

Unavailable

4

STARTER ASSY., RECOIL *NH35* (CLOUD SILVER) (NOT AVAILABLE)

28400-937-004AU

Unavailable

5

RATCHET, STARTER

28401-937-004

Unavailable

6

SPRING, STARTER RETURN This part replaces 28402-937-004.

28402-937-014

$27.99

6

SPRING, STARTER RETURN

28402-937-014

$27.99

7

PLATE, FRICTION

28403-937-004

Unavailable

8

SPRING, FRICTION

28404-937-004

Unavailable

9

WASHER

28405-937-004

Unavailable

10

E-RING

28406-937-004

Unavailable

11

ROPE, RECOIL STARTER (NOT AVAILABLE)

28407-937-004

Unavailable

12

KNOB, STARTER This part replaces 28408-918-010.

28408-943-004

Unavailable

12

KNOB, STARTER

28408-943-004

Unavailable

13

STOPPER, STARTER ROPE

28409-918-000

Unavailable

14

CASE, RECOIL STARTER *NH35* (CLOUD SILVER) (NOT AVAILABLE)

28410-937-004AU

Unavailable

15

SPRING, SETTING

28413-937-004

Unavailable

16

TAPE, KNOB (NOT AVAILABLE)

28414-918-000

Unavailable

17

PULLEY, RECOIL STARTER (NOT AVAILABLE)

28420-937-004

Unavailable

18

PULLEY, STARTER This part replaces 28430-937-004.

28430-957-014

Unavailable

18

PULLEY, STARTER This part replaces 28430-957-004.

28430-957-014

Unavailable

18

PULLEY, STARTER

28430-957-014

Unavailable

19

GASKET, STARTER This part replaces 28440-937-000.

28440-937-306

$4.73

19

GASKET, STARTER

28440-937-306

$4.73

20

POINTS (HITACHI)

30202-041-015

$26.87

21

FELT, OIL (HITACHI)

30205-041-005

$3.67

22

CONDENSER (HITACHI)

30250-041-005

$22.71

23

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-937-005

Unavailable

24

ROTOR (NOT AVAILABLE)

31121-937-005

Unavailable

25

STATOR ASSY. (NOT AVAILABLE)

31141-098-731

Unavailable

26

COVER, CONNECTOR (4P) (NOT AVAILABLE)

32138-937-000

Unavailable

27

GROMMET, NEUTRAL SWITCH WIRE

32981-035-000

Unavailable

28

WASHER, MAGNET FIXING

90426-035-000

$2.38

29

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$5.86

29

OIL SEAL (18.9X30X5)

91202-GK4-722

$5.86

29

OIL SEAL (18.9X30X5) This part replaces 91202-035-000.

91202-GK4-722

$5.86

29

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$5.86

29

OIL SEAL (18.9X30X5) This part replaces 91202-035-005.

91202-GK4-722

$5.86

30

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$6.73

30

O-RING (107X2)

91301-035-003

$6.73

31

O-RING (6X1.7)

91317-171-003

$2.80

31

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.80

32

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.35

32

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.35

32

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.35

32

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.35

32

BOLT, HEX. (6X16)

92101-06016-0A

$1.35

32

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.35

33

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$0.76

33

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$0.76

33

SCREW, PAN (4X6)

93500-04006-0A

$0.76

33

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$0.76

34

SCREW, PAN (4X10)

93500-04010-0A

$0.84

35

SCREW, PAN (6X12) This part replaces 33114-200-000.

93500-06012-0B

$0.91

35

SCREW, PAN (6X12) This part replaces 33127-259-222.

93500-06012-0B

$0.91

35

SCREW, PAN (6X12)

93500-06012-0B

$0.91

35

SCREW, PAN (6X12) This part replaces 93500-06012-02.

93500-06012-0B

$0.91

36

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.94

36

SCREW, PAN (6X20)

93500-06020-0A

$0.94

37

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.10

37

SCREW, PAN (6X28)

93500-06028-0A

$1.10

38

SCREW, PAN (6X35)

93500-06035-0A

$1.38

38

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.38

39

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$0.91

39

SCREW, FLAT (6X16)

93600-06016-0A

$0.91

40

NUT, HEX. (10MM)

94030-10000

$1.31

41

WASHER, PLAIN (4MM)

94101-04000

$0.91

42

WASHER, SPRING (4MM)

94111-04000

$0.99

43

WASHER, SPRING (6MM)

94111-06000

$0.87
