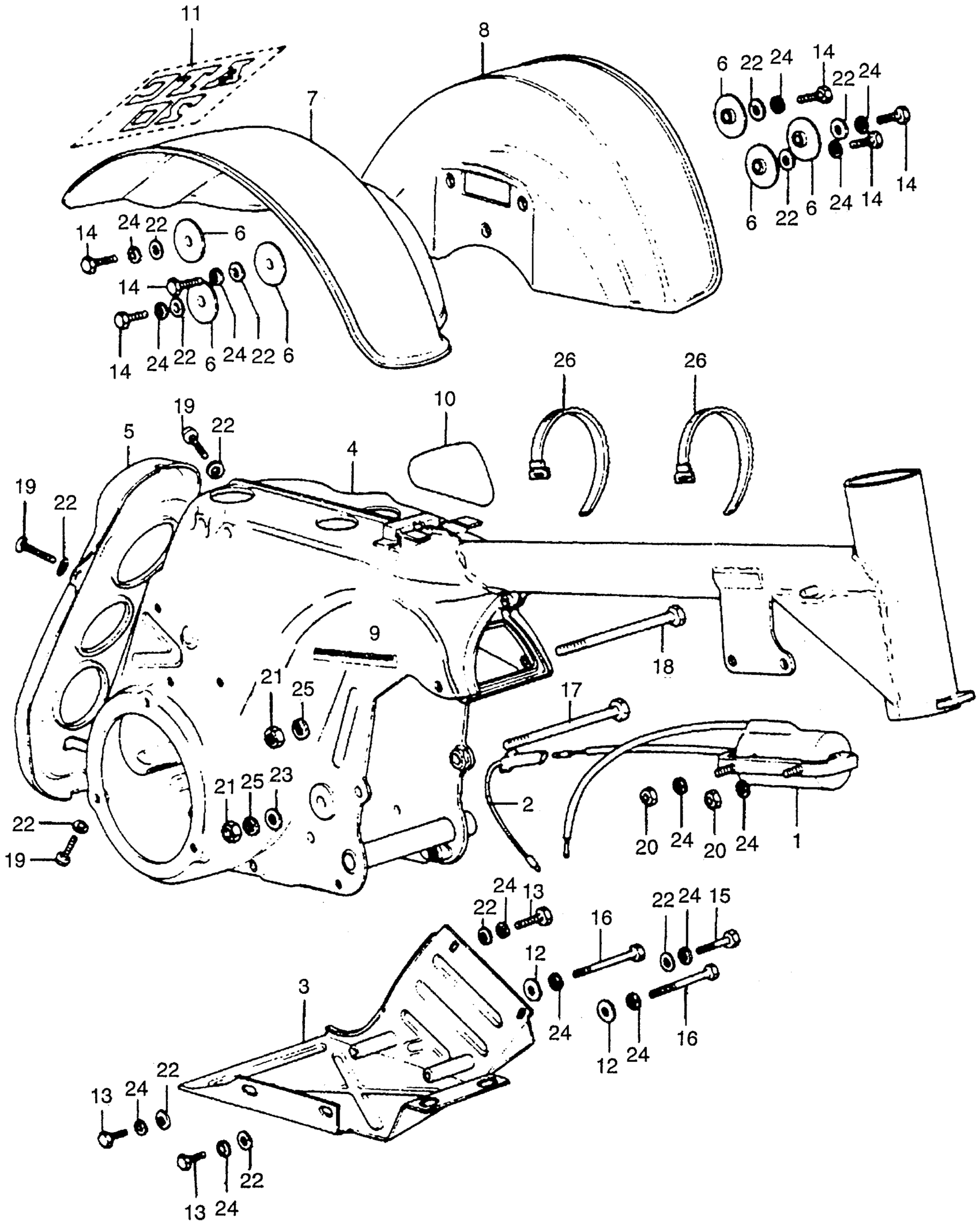

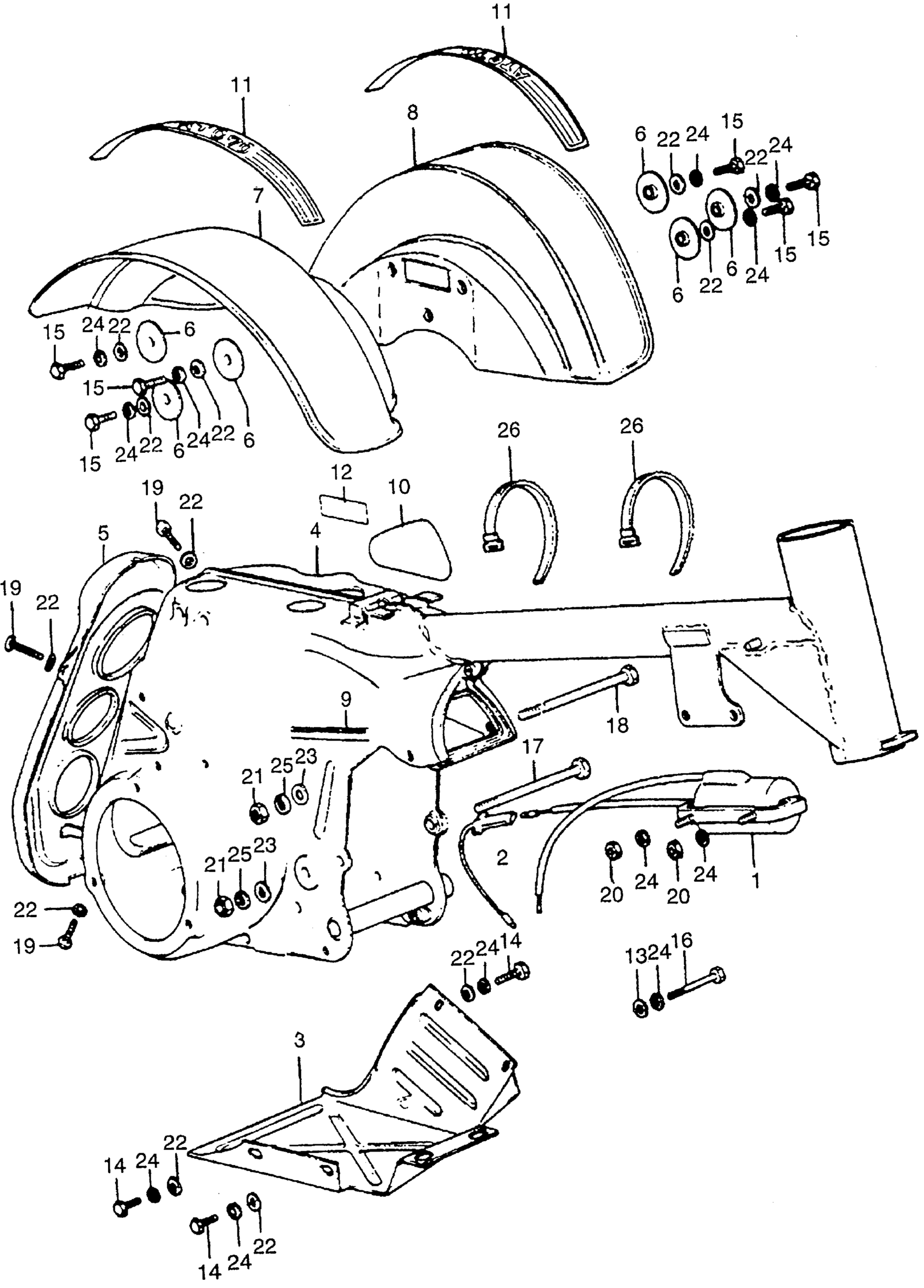

Honda ATC70A ALL-TERRAIN, JPN, VIN# ATC70-1000001 FRAME + REAR FENDER + IGNITION COIL Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-937-000

Unavailable

2

WIRE, IGNITION (NOT AVAILABLE)

32110-937-000

Unavailable

3

COVER (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

40524-937-000S

Unavailable

4

FRAME *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

50100-937-010BB

Unavailable

5

COVER, RR. *NH16M* (GUN METALLIC BLACK) (NOT AVAILABLE) | Use up to Frame SN 1002840 This part replaces 50201-937-010LH.

50201-937-020LH

Unavailable

5

COVER, RR. *NH16M* (GUN METALLIC BLACK) (NOT AVAILABLE)

50201-937-020LH

Unavailable

6

WASHER, FR. COVER FIXING

64348-086-000

$3.62

7

FENDER, R. RR. *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

80100-937-000BB

Unavailable

8

FENDER, L. RR. *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

80200-937-000BB

Unavailable

9

PLATE, NAME

87125-041-680

$4.92

10

LABEL, CAUTION (NOT AVAILABLE)

87130-937-000

Unavailable

11

EMBLEM, R. RR. FENDER (NOT AVAILABLE)

87521-937-000

Unavailable

12

WASHER (6.5X20)

90545-292-000

$1.77

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

15

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

15

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

16

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

16

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

16

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

17

BOLT, HEX. (8X110) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08110-0A.

92101-08110-0A

Unavailable

17

BOLT, HEX. (8X110) (SOURCE: VINTAGE PARTS INC.)

92101-08110-0A

Unavailable

18

BOLT, HEX. (8X115) (NOT AVAILABLE) This part replaces 92000-08115-0A.

92200-08115-0A

Unavailable

19

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

19

SCREW, PAN (6X16)

93500-06016-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (8MM)

94001-08000-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

BAND B3, CABLE HARNESS

95014-62300

$2.25
