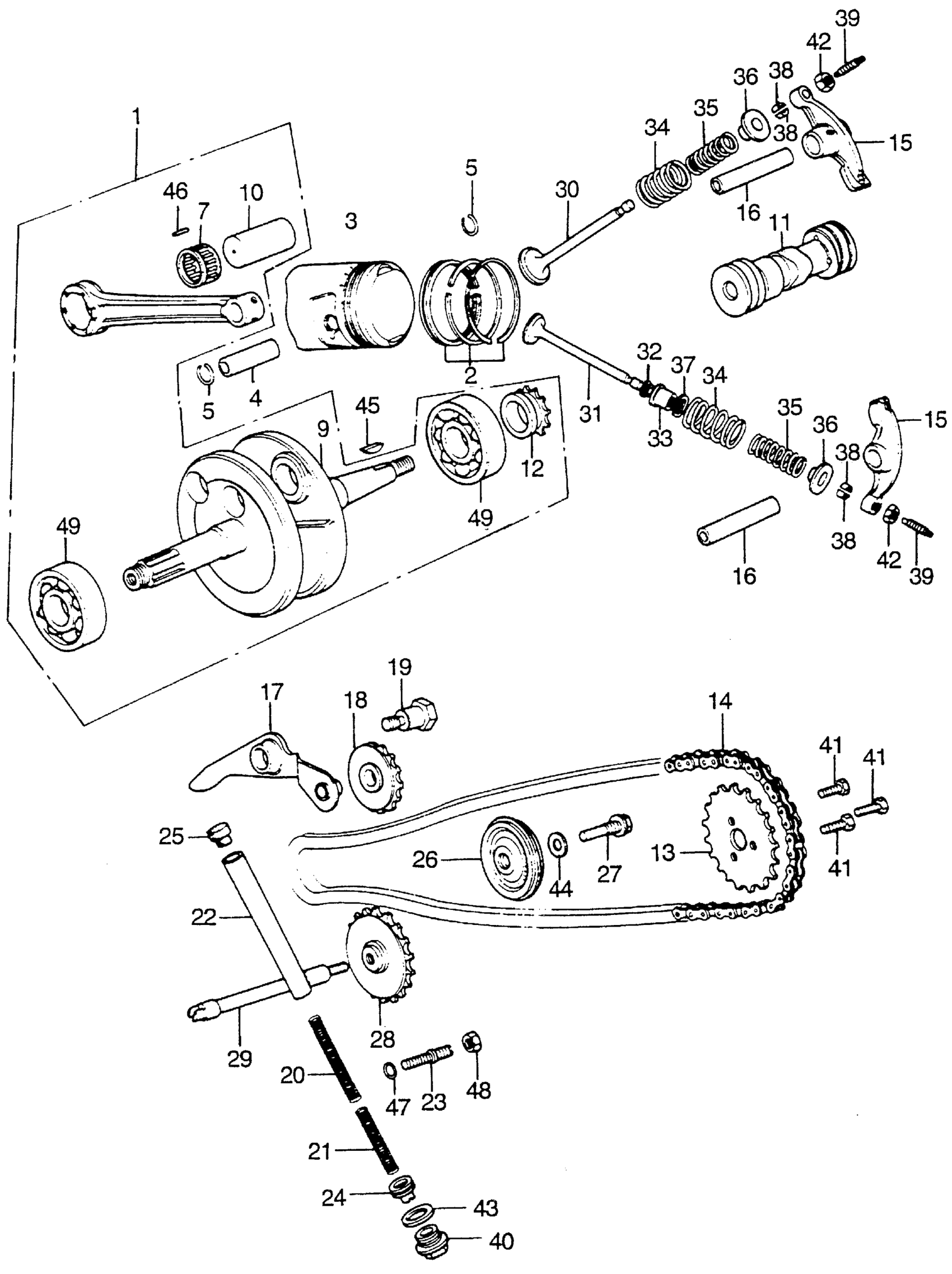

Honda ATC70A ALL-TERRAIN, JPN, VIN# ATC70-1000001 CAMSHAFT + CAM CHAIN TENSIONER + CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE) This part replaces 13000-098-760.

13000-098-761

Unavailable

1

CRANKSHAFT (NOT AVAILABLE)

13000-098-761

Unavailable

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-003.

13010-087-023

$36.09

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-004.

13010-087-023

$36.09

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-013.

13010-087-023

$36.09

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-014.

13010-087-023

$36.09

2

RING SET, PISTON (STD) (NIPPON)

13010-087-023

$36.09

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-024.

13010-087-023

$36.09

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-087-003.

13010-087-023

$36.09

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-003.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-004.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-013.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-014.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-024.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13021-087-003.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-003.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-004.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-013.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-014.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-024.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13031-087-003.

13030-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13040-087-003.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13040-087-013.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional).

13040-087-023

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-003.

13050-087-023

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-013.

13050-087-023

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-014.

13050-087-023

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13050-087-023

Unavailable

3

PISTON (STD)

13101-HB2-000

Unavailable

3

PISTON (STD) This part replaces 13101-937-000.

13101-HB2-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-HB2-305

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-937-000.

13102-HB2-305

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-HB2-305

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-937-000.

13103-HB2-305

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-HB2-305

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-937-000.

13104-HB2-305

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-HB2-305

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-937-000.

13105-HB2-305

Unavailable

4

PIN, PISTON

13111-GB0-910

$10.49

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$10.49

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$0.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$0.49

7

BEARING, CONNECTING ROD

13211-035-000

Unavailable

9

CRANKSHAFT, L. (NOT AVAILABLE) This part replaces 13321-098-760.

13321-098-761

Unavailable

10

PIN, CRANK

13381-GB1-900

$32.74

10

PIN, CRANK This part replaces 13381-035-010.

13381-GB1-900

$32.74

10

PIN, CRANK This part replaces 13381-035-405.

13381-GB1-900

$32.74

11

CAMSHAFT This part replaces 14101-040-020.

14101-040-030

Unavailable

11

CAMSHAFT

14101-040-030

Unavailable

12

SPROCKET, TIMING (14T)

14311-035-000

$17.30

13

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$13.85

13

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$13.85

13

SPROCKET, CAM (28T)

14321-035-700

$13.85

14

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-000.

14401-115-010

$26.88

14

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$26.88

14

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-005.

14401-115-010

$26.88

15

ARM, VALVE ROCKER This part replaces 14431-035-000.

14431-035-020

$34.20

15

ARM, VALVE ROCKER This part replaces 14431-035-010.

14431-035-020

$34.20

15

ARM, VALVE ROCKER

14431-035-020

$34.20

16

SHAFT, VALVE ROCKER ARM

14451-035-000

$7.89

17

ARM, CAM CHAIN TENSIONER This part replaces 14500-035-010.

14500-035-020

$25.17

17

ARM, CAM CHAIN TENSIONER

14500-035-020

$25.17

18

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$14.67

19

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.52

20

SPRING A, CAM CHAIN TENSIONER

14541-086-010

Unavailable

21

SPRING B, CAM CHAIN TENSIONER

14542-086-000

$3.95

22

ROD, CAM CHAIN TENSIONER PUSH

14550-086-010

Unavailable

23

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-086-010

$9.35

24

BOLT B, CAM CHAIN TENSIONER ADJUSTING

14562-086-000

Unavailable

25

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.12

26

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$18.16

26

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$18.16

27

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.58

27

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.58

28

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$20.95

29

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-035-060

Unavailable

30

VALVE, IN.

14711-087-000

Unavailable

31

VALVE, EX.

14721-087-010

Unavailable

32

SEAL, VALVE STEM

14730-028-013

$8.71

33

CAP, VALVE STEM SEAL

14731-028-000

$4.04

34

SPRING, VALVE (OUTER)

14751-035-600

Unavailable

35

SPRING, VALVE (INNER)

14761-035-000

Unavailable

36

RETAINER, VALVE SPRING

14771-035-600

Unavailable

37

SEAT, VALVE SPRING (INNER)

14776-028-000

$4.07

38

COTTER, VALVE

14781-001-004

$4.61

38

COTTER, VALVE

14781-001-010

$5.41

39

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.62

39

SCREW, TAPPET ADJ.

90012-333-000

$2.62

40

BOLT, SEALING (14MM)

90081-086-000

$5.07

41

BOLT, KNOCK (5MM)

90083-035-010

$1.83

42

NUT, TAPPET ADJ.

90206-001-000

$1.58

43

WASHER, SEALING (14MM)

90441-035-000

$2.17

44

WASHER (8MM)

90481-035-000

$1.70

45

KEY, WOODRUFF (3MM)

90741-035-000

$3.90

46

ROLLER, ROD (2.5X10)

91101-001-030

$2.78

47

O-RING (5.5X1.5)

91301-216-000

$2.28

48

NUT, HEX. (8MM)

94001-08000-0S

$1.19

49

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$12.93

49

BEARING, RADIAL BALL (6304)

96100-63040-00

$12.93
