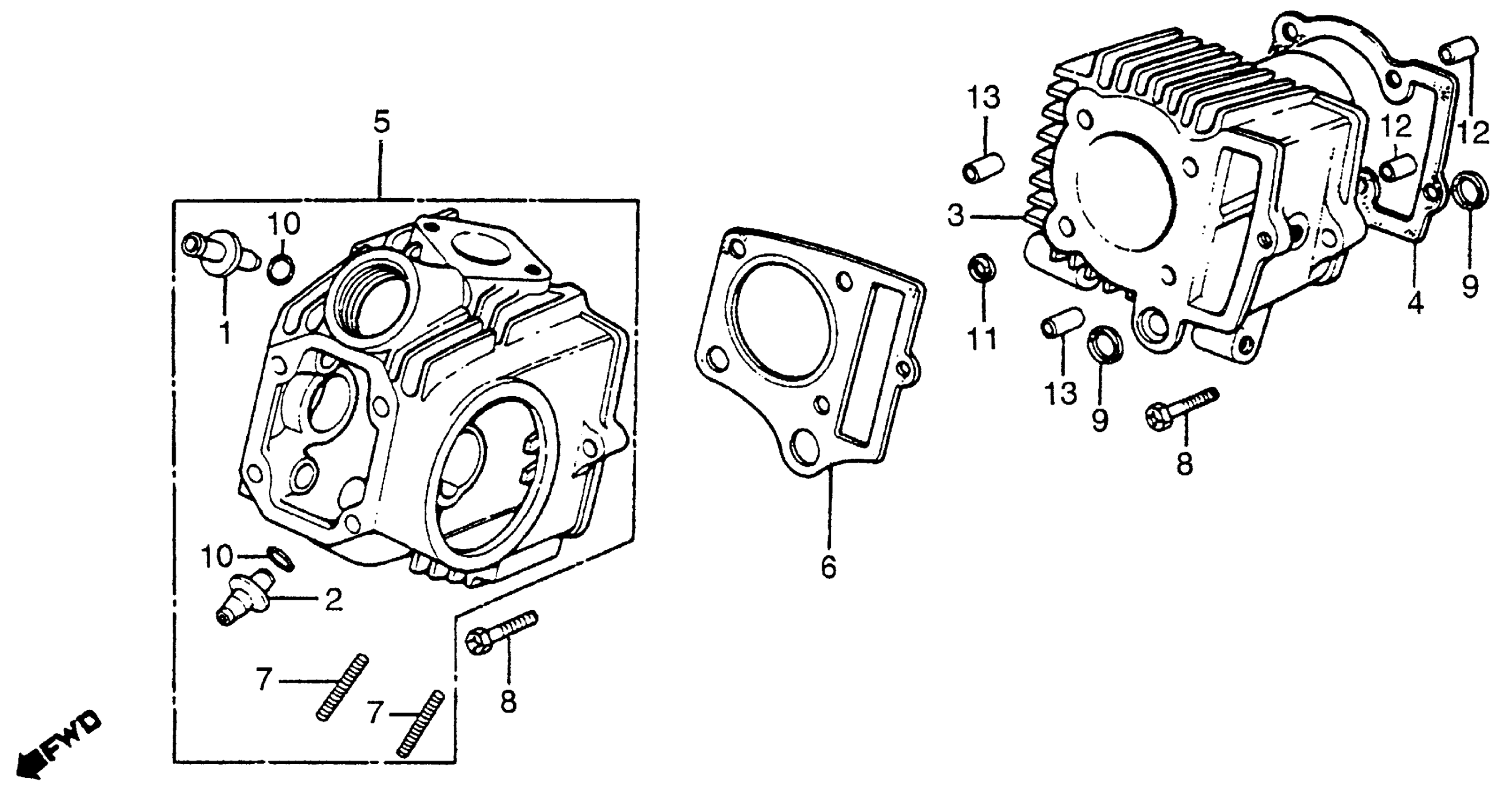

Honda ATC70A (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-FK000001 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

GUIDE, IN VALVE This part replaces 12231-178-315.

12231-178-405

Unavailable

1

GUIDE, IN VALVE

12231-178-405

Unavailable

1

GUIDE, IN VALVE This part replaces 12237-178-305.

12231-178-405

Unavailable

2

GUIDE, EX. VALVE

12023-051-330

Unavailable

2

GUIDE, EX. VALVE This part replaces 12245-051-305.

12023-051-330

Unavailable

3

CYLINDER

12101-GB0-910

$212.90

3

CYLINDER This part replaces 12101-087-010.

12101-GB0-910

$212.90

3

CYLINDER This part replaces 12101-098-671.

12101-GB0-910

$212.90

4

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

5

CYLINDER HEAD This part replaces 12200-178-010.

12200-178-020

Unavailable

5

CYLINDER HEAD

12200-178-020

Unavailable

6

GASKET, CYLINDER HEAD

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-730.

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-731.

12251-111-505

Unavailable

7

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

7

BOLT, STUD (6X32)

90033-041-020

$2.25

8

BOLT (6MM)

90082-035-010

$2.39

9

GASKET, RUBBER (16MM)

91303-035-000

$4.87

10

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

10

O-RING (9X1.6)

91305-028-900

$2.92

11

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

11

GASKET, RUBBER (9MM)

91306-141-000

$4.65

12

PIN A, DOWEL (8X12) This part replaces 90701-001-000.

94301-08120

$2.19

12

PIN A, DOWEL (8X12)

94301-08120

$2.19

12

PIN A, DOWEL (8X12) This part replaces 94304-08120.

94301-08120

$2.19

13

PIN, DOWEL (8X14) This part replaces 94301-08014.

94301-08140

$2.25

13

PIN A, DOWEL (8X14)

94301-08140

$2.25

13

PIN, DOWEL (8X14) This part replaces 94304-08140.

94301-08140

$2.25
