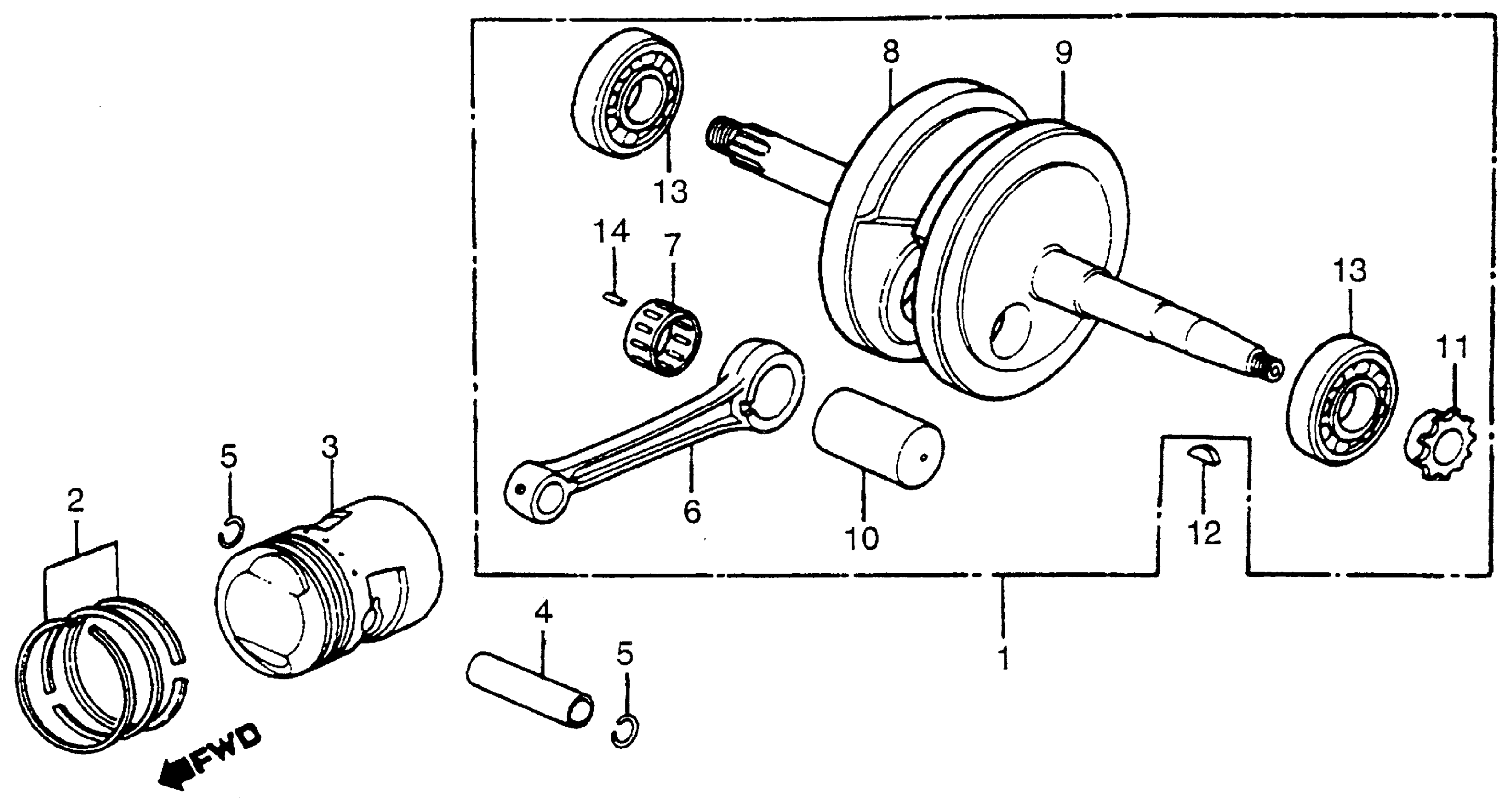

Honda ATC70A (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-FK000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-125-000

Unavailable

2

RING SET, PISTON (STD) (NIPPON)

13010-087-023

$40.20

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-024.

13010-087-023

$40.20

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-024.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-024.

13030-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13040-087-024.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13041-087-003.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13041-098-771.

13040-087-023

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13050-087-023

$25.35

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13040-087-003.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13040-087-013.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional).

13040-087-023

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-024.

13050-087-023

$25.35

3

PISTON (STD)

13101-HB2-000

Unavailable

3

PISTON (STD) This part replaces 13101-937-000.

13101-HB2-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-HB2-305

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-937-000.

13102-HB2-305

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-HB2-305

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-937-000.

13103-HB2-305

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-HB2-305

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-937-000.

13104-HB2-305

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-HB2-305

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-937-000.

13105-HB2-305

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING

13201-036-010

Unavailable

7

BEARING, CONNECTING ROD

13211-035-000

Unavailable

8

CRANKSHAFT, R.

13311-125-300

Unavailable

9

CRANKSHAFT, L.

13321-125-300

Unavailable

10

PIN, CRANK

13381-GB1-900

Unavailable

10

PIN, CRANK This part replaces 13381-178-300.

13381-GB1-900

Unavailable

11

SPROCKET, TIMING (14T)

14311-035-000

$19.28

12

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

13

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

13

BEARING, RADIAL BALL (6304) This part replaces 91001-035-000.

96100-63040-00

$14.40

13

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$20.45

13

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

13

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

14

ROLLER, ROD (2.5X10)

91101-001-030

$2.92
