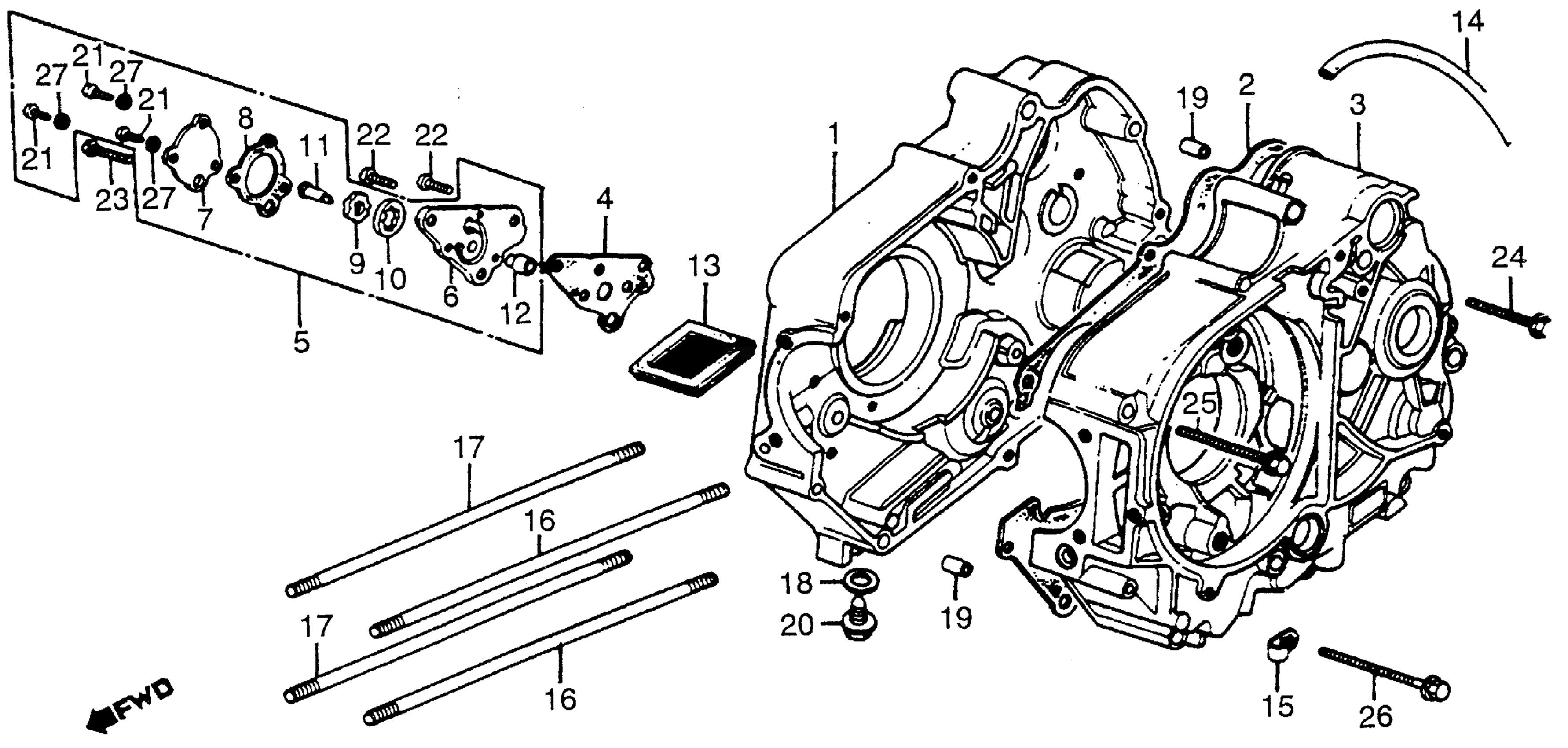

Honda ATC70A (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-FK000001 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11100-086-701

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GB0-306.

11191-GB0-912

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GB0-910.

11191-GB0-912

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GB0-911.

11191-GB0-912

Unavailable

3

CRANKCASE, L.

11200-125-010

Unavailable

4

GASKET, OIL PUMP BODY

15119-035-020

Unavailable

5

PUMP ASSY., OIL

15300-035-000

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE)

15311-035-013

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-003

Unavailable

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-035-004

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-035-004

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-035-003

Unavailable

12

PIN, OIL PUMP KNOCK

15383-035-003

Unavailable

13

SCREEN, OIL FILTER

15421-035-010

$3.80

14

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

14

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

14

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

14

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

15

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

16

BOLT A, CYLINDER STUD

90031-035-010

$5.46

17

BOLT B, CYLINDER STUD

90032-035-000

$5.46

18

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

18

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

19

PIN A, DOWEL (10X14)

94301-10140

$2.28

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

SCREW, PAN (5X10)

93500-05010-0A

$1.49

22

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

22

SCREW, PAN (6X16)

93500-06016-0A

$1.49

23

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

23

SCREW, PAN (6X22)

93500-06022-0A

$1.49

24

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

24

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

25

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

25

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

26

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

26

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

27

WASHER, SPRING (5MM)

94111-05000

$1.49
