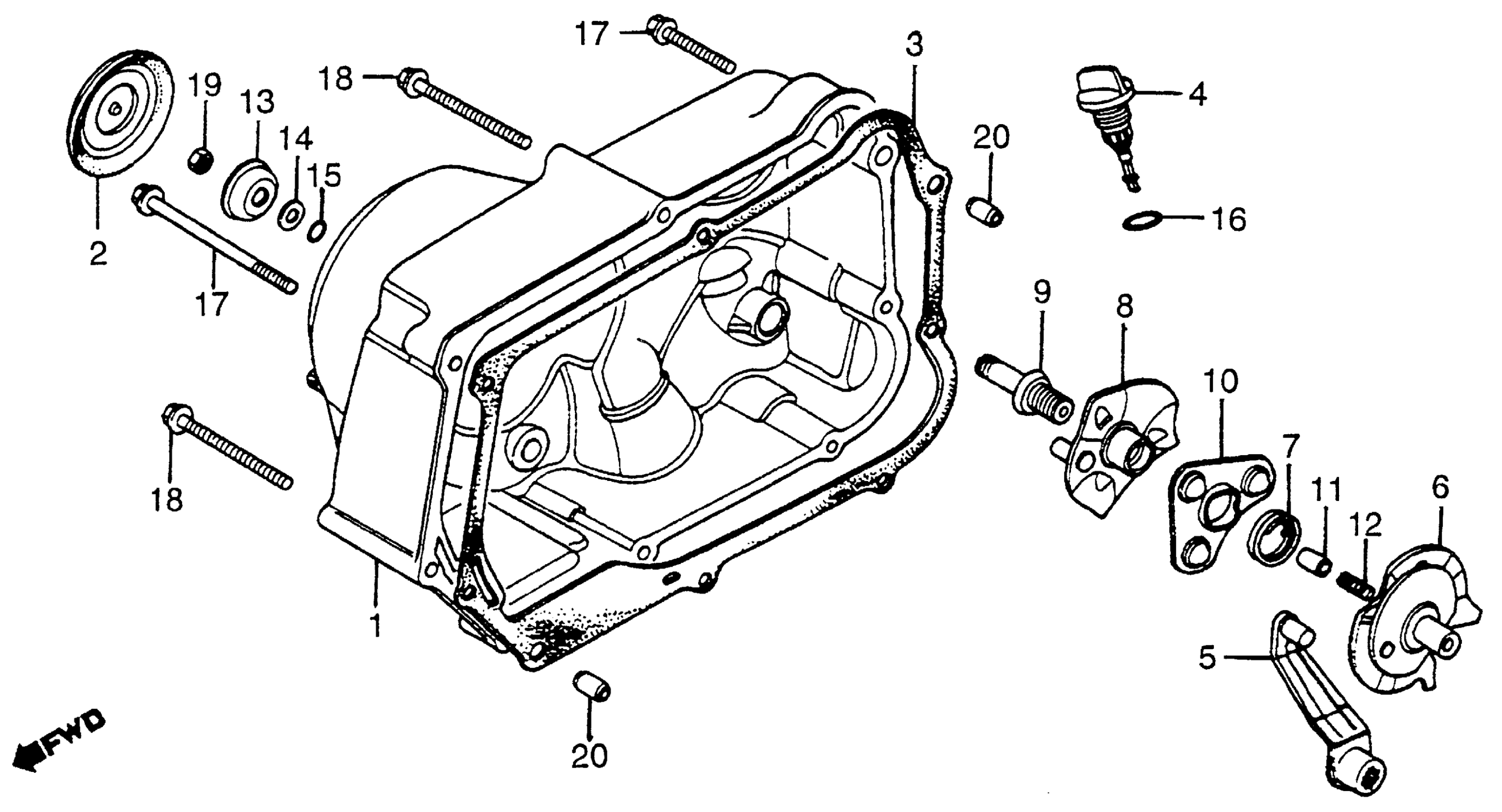

Honda ATC70A (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-EC900001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-937-000

Unavailable

PROTECTOR, R. CRANKCASE COVER

11335-102-700

$11.67

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$13.57

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$13.57

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$13.57

DIPSTICK, OIL This part replaces 15650-957-000.

15650-957-010

Unavailable

DIPSTICK, OIL

15650-957-010

Unavailable

LEVER, CLUTCH

22811-040-020

$32.34

PLATE, CLUTCH CAM This part replaces 22820-918-010.

22820-918-020

$20.42

PLATE, CLUTCH CAM

22820-918-020

$20.42

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

PLATE, CLUTCH LIFTER

22830-041-000

$11.73

BOLT, CLUTCH ADJUSTING

22846-040-010

$6.30

RETAINER, CLUTCH BALL

22860-046-000

$7.04

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

SPRING, OIL GUIDE

25555-046-000

Unavailable

WASHER, CLUTCH ADJUSTER

90485-102-701

Unavailable

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

NUT, HEX. (8MM)

94030-08000

$1.49

PIN A, DOWEL (8X12) This part replaces 90701-001-000.

94301-08120

$2.19

PIN A, DOWEL (8X12)

94301-08120

$2.19

PIN A, DOWEL (8X12) This part replaces 94304-08120.

94301-08120

$2.19
