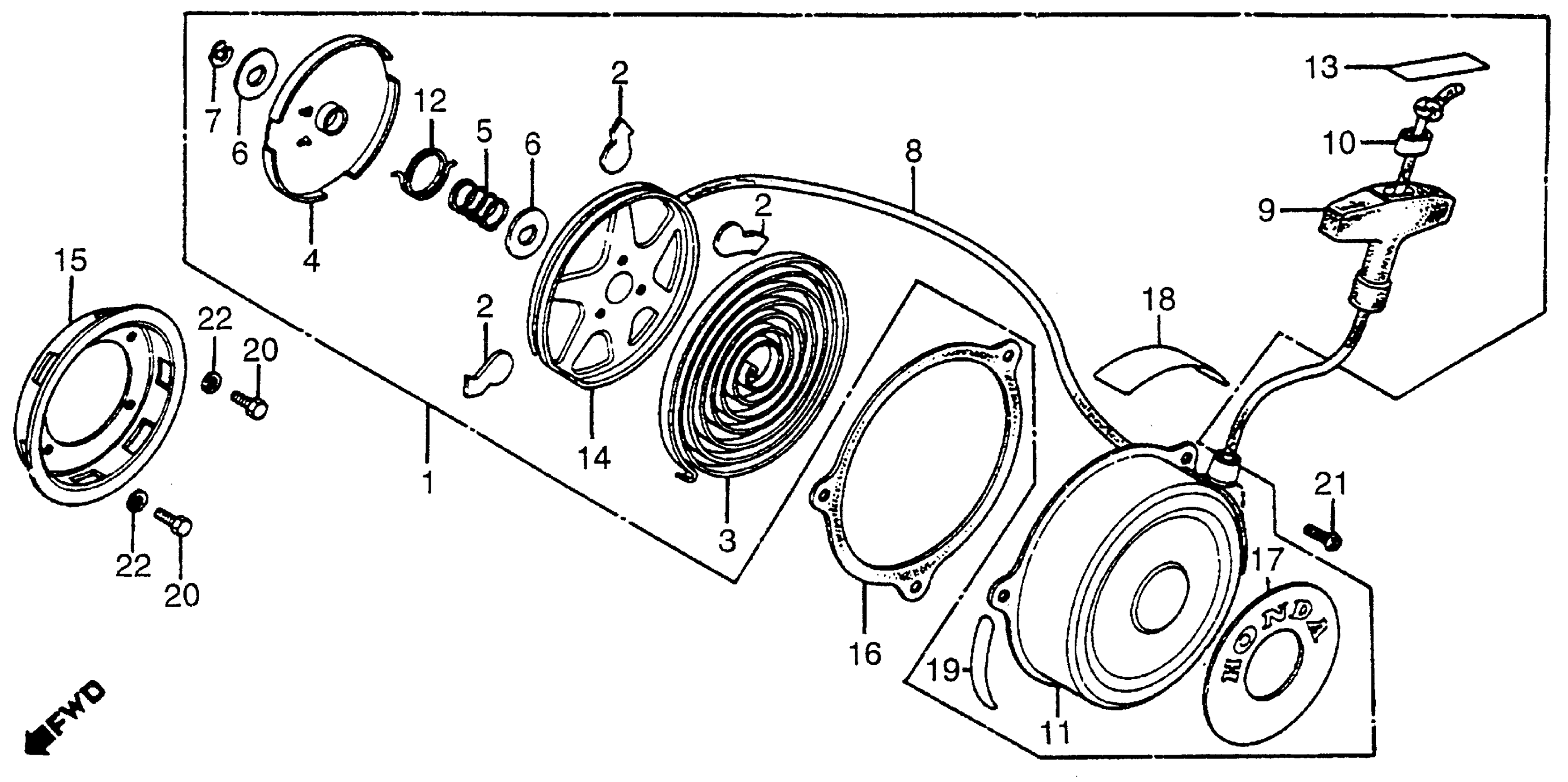

Honda ATC70A (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-EC900001 RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY., RECOIL

28400-957-024

Unavailable

2

RATCHET, STARTER

28401-937-004

$7.75

3

SPRING, STARTER RETURN

28402-937-014

$29.73

4

PLATE, FRICTION

28403-937-004

Unavailable

5

SPRING, FRICTION

28404-937-004

Unavailable

6

WASHER

28405-937-004

Unavailable

7

E-RING

28406-937-004

Unavailable

8

ROPE, RECOIL STARTER

28407-957-004

Unavailable

9

KNOB, STARTER

28408-943-004

Unavailable

10

STOPPER, STARTER ROPE

28409-918-000

Unavailable

11

CASE, RECOIL STARTER

28410-957-014

Unavailable

12

SPRING, SETTING

28413-937-004

Unavailable

14

PULLEY, RECOIL STARTER

28420-957-004

Unavailable

15

PULLEY, STARTER

28430-957-014

Unavailable

16

GASKET, STARTER This part replaces 28440-937-000.

28440-937-306

$4.94

16

GASKET, STARTER

28440-937-306

$4.94

17

EMBLEM, RECOIL STARTER (NOT AVAILABLE)

87101-937-000

Unavailable

18

LABEL, NEUTRAL CAUTION (NOT AVAILABLE)

87103-957-000

Unavailable

20

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

20

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

21

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

21

SCREW, PAN (6X12)

93500-06012-0A

$1.49

21

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49
