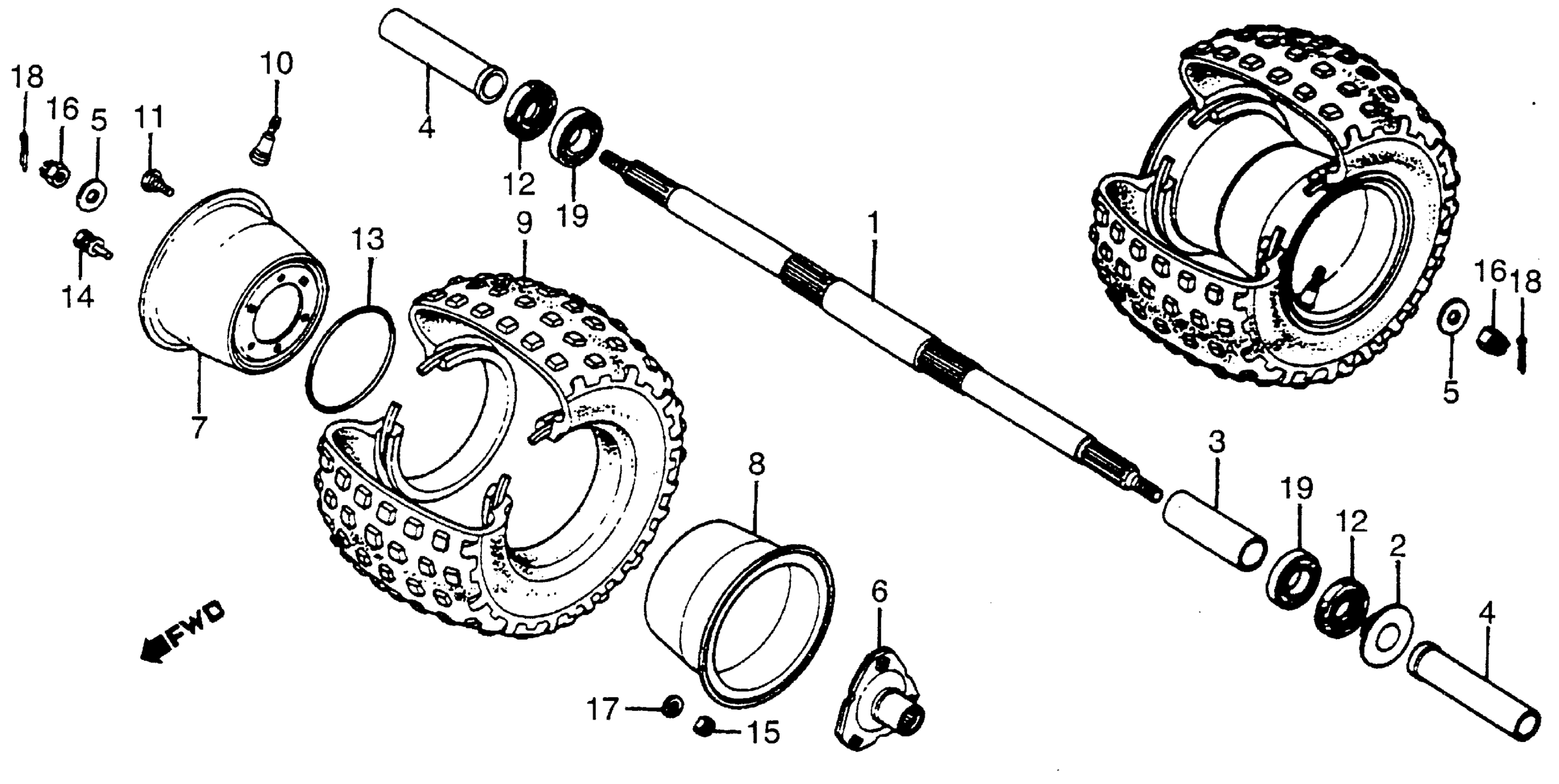

Honda ATC70A (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-EC900001 REAR WHEEL Diagram

#

Description
Price

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-957-000

Unavailable

2

COLLAR, OIL SEAL (NOT AVAILABLE)

42303-957-000

Unavailable

3

COLLAR, RR. AXLE CENTER

42311-957-000

Unavailable

4

PIPE, RR. AXLE SIDE (NOT AVAILABLE)

42313-957-000

Unavailable

5

WASHER (14MM)

42322-943-000

Unavailable

6

BOSS, RR. (NOT AVAILABLE)

42410-957-000

Unavailable

7

RIM, WHEEL (OUTER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

42716-937-000ZA

Unavailable

8

RIM, WHEEL (INNER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

42717-937-000ZA

Unavailable

9

TIRE (16X8.0-7) (BS)

4275Z-HB2-003

Unavailable

9

TIRE (16X8.0-7) (BS) This part replaces 42751-HB2-770.

4275Z-HB2-003

Unavailable

9

TIRE (16X8.0-7) (BS) This part replaces 42751-957-013.

4275Z-HB2-003

Unavailable

10

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

11

BOLT, WHEEL

90101-937-000

Unavailable

12

OIL SEAL (38X55X8)

91203-957-003

$14.26

13

O-RING, WHEEL (126.5X3.5)

91351-937-000

$19.17

14

BOLT-WASHER (8X20)

93402-08020-00

$1.92

14

BOLT-WASHER (8X20) This part replaces 93492-08020-00.

93402-08020-00

$1.92

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

18

PIN, COTTER (3.0X45)

94201-30450

$1.49

19

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

19

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13
