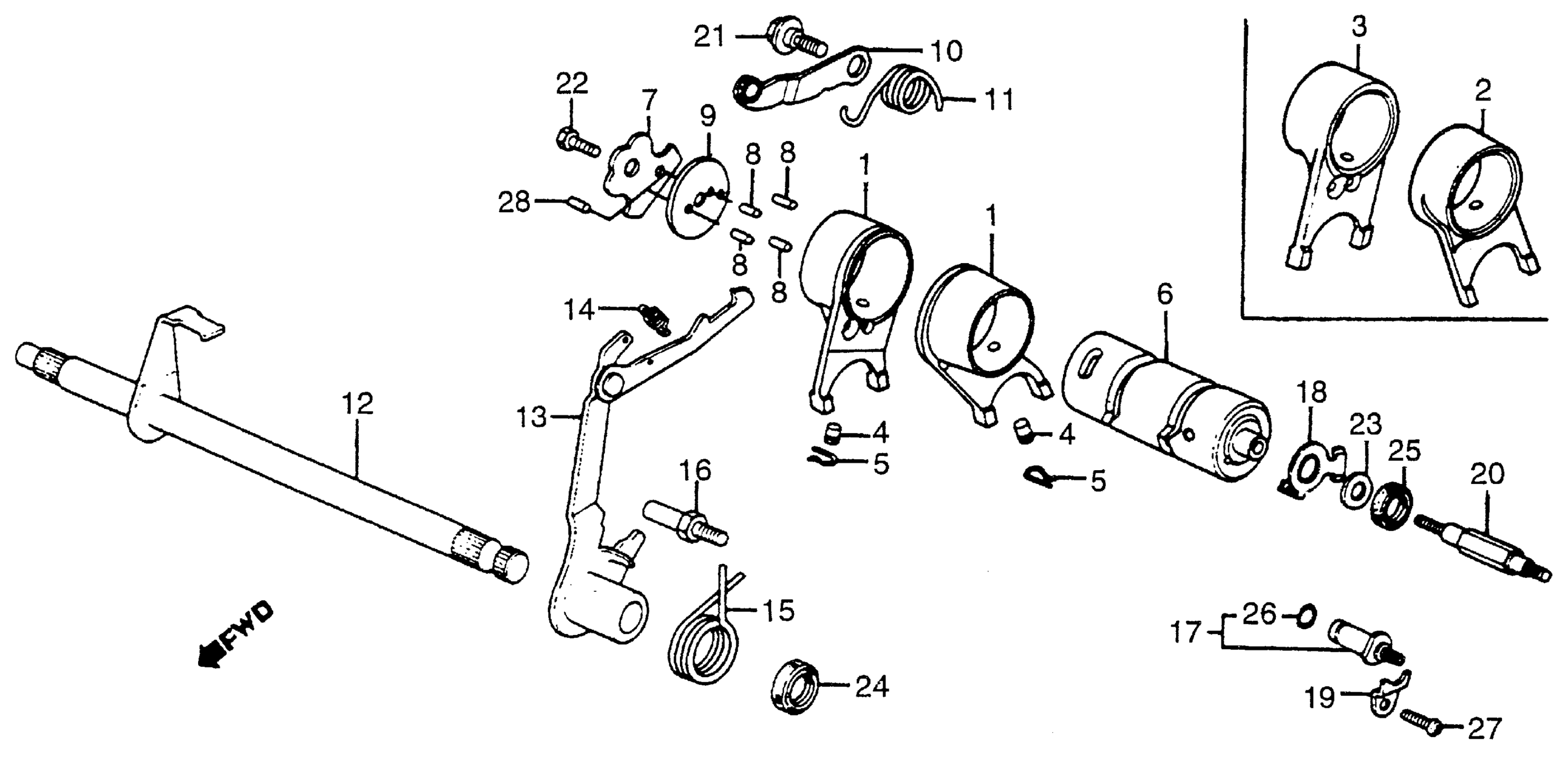

Honda ATC70A (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-EC900001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, GEARSHIFT

24211-065-000

$68.56

4

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

4

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

5

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-957-000

Unavailable

7

PLATE, GEARSHIFT DRUM STOPPER

24411-088-900

Unavailable

8

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

8

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

9

PLATE, SHIFT DRUM SIDE

24425-051-010

Unavailable

10

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

11

SPRING, DRUM STOPPER

24435-051-000

Unavailable

12

SPINDLE, GEARSHIFT

24610-098-730

$58.95

13

ARM, GEARSHIFT (NOT AVAILABLE)

24630-957-000

Unavailable

14

SPRING, GEARSHIFT ARM

24641-061-000

Unavailable

15

SPRING, GEARSHIFT RETURN

24651-035-000

Unavailable

16

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

17

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

18

ROTOR, NEUTRAL SWITCH This part replaces 35753-035-661.

35753-035-662

Unavailable

18

ROTOR, NEUTRAL SWITCH

35753-035-662

Unavailable

19

PLATE, CONTACT FIXING

35755-001-020

Unavailable

20

SHAFT, INDICATOR (NOT AVAILABLE)

35763-957-000

Unavailable

21

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

21

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

22

BOLT, DOWEL (6MM)

90071-171-010

$2.39

23

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-020.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-005.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

25

OIL SEAL (11.6X19X6)

91204-HB2-003

$7.40

25

OIL SEAL (11.6X19X6) This part replaces 91204-121-711.

91204-HB2-003

$7.40

25

OIL SEAL (11.6X19X6) This part replaces 91204-957-003.

91204-HB2-003

$7.40

26

O-RING (7X1.7)

91312-107-000

$3.18

27

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

27

SCREW, PAN (6X12)

93500-06012-0A

$1.49

27

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

28

ROLLER (3X8.5)

96220-30085

$1.49
