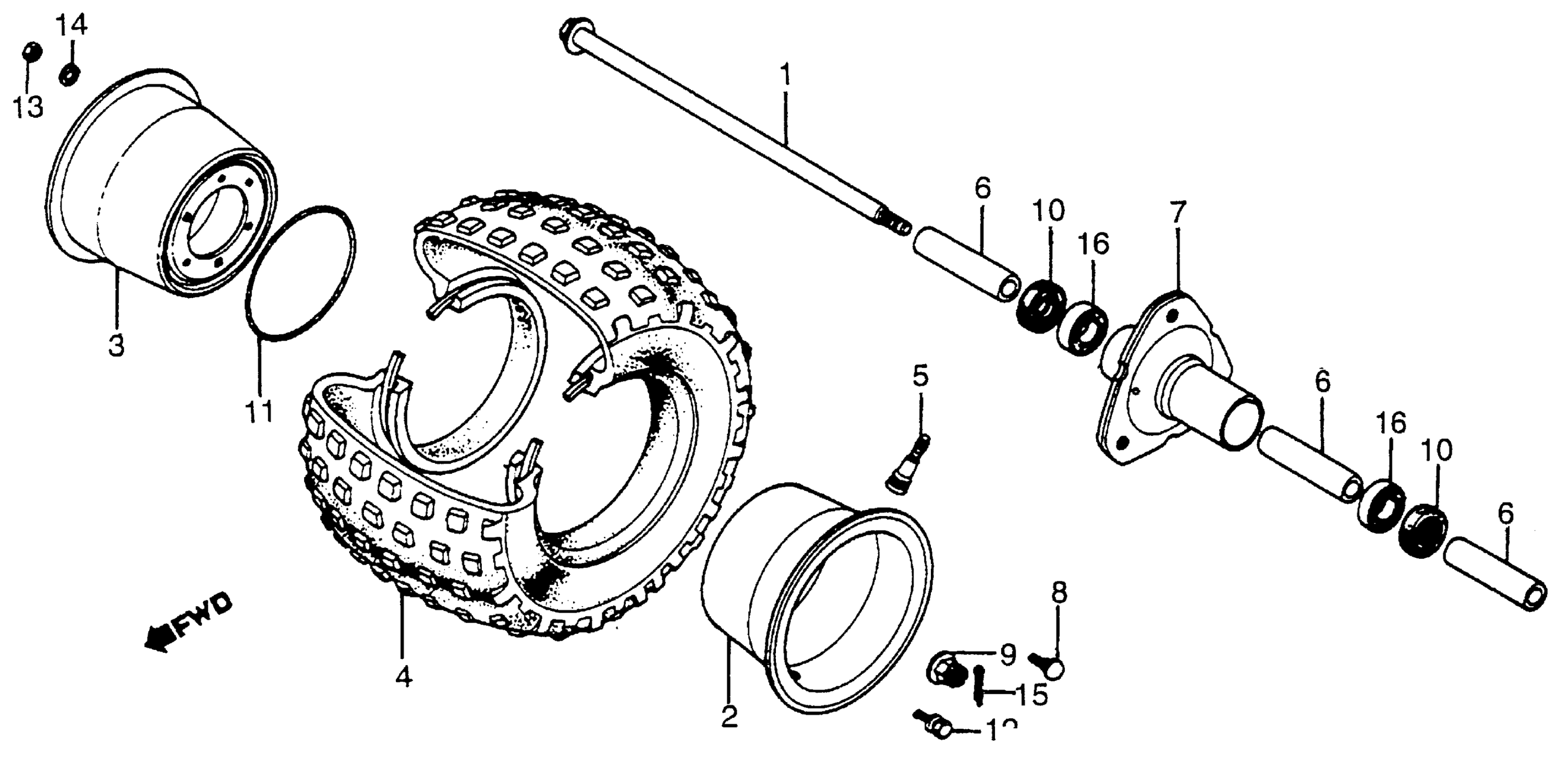

Honda ATC70A (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-EC900001 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-362-010

Unavailable

2

RIM, WHEEL (OUTER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

42716-937-000ZA

Unavailable

3

RIM, WHEEL (INNER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

42717-937-000ZA

Unavailable

4

TIRE (16X8.0-7) (BS)

4275Z-HB2-003

Unavailable

4

TIRE (16X8.0-7) (BS) This part replaces 42751-HB2-770.

4275Z-HB2-003

Unavailable

4

TIRE (16X8.0-7) (BS) This part replaces 42751-957-013.

4275Z-HB2-003

Unavailable

5

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

5

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

5

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

5

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

5

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

5

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

5

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

6

COLLAR, FR. AXLE

44311-957-000

Unavailable

7

HUB, FR. WHEEL

44610-957-000

Unavailable

8

BOLT, WHEEL

90101-937-000

Unavailable

9

NUT, AXLE (14MM)

90305-401-680

$11.65

10

OIL SEAL (21.7X35X6.5) This part replaces 91205-957-003.

91205-957-004

$11.06

10

OIL SEAL (21.7X35X6.5)

91205-957-004

$11.06

11

O-RING, WHEEL (126.5X3.5)

91351-937-000

$19.17

12

BOLT-WASHER (8X20)

93402-08020-00

$1.92

12

BOLT-WASHER (8X20) This part replaces 93492-08020-00.

93402-08020-00

$1.92

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

WASHER, SPRING (8MM)

94111-08000

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

15

PIN, COTTER (3.0X45)

94201-30450

$1.49

16

BEARING, RADIAL BALL (6202) This part replaces 96100-62020.

96100-62020-00

$9.18

16

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18
