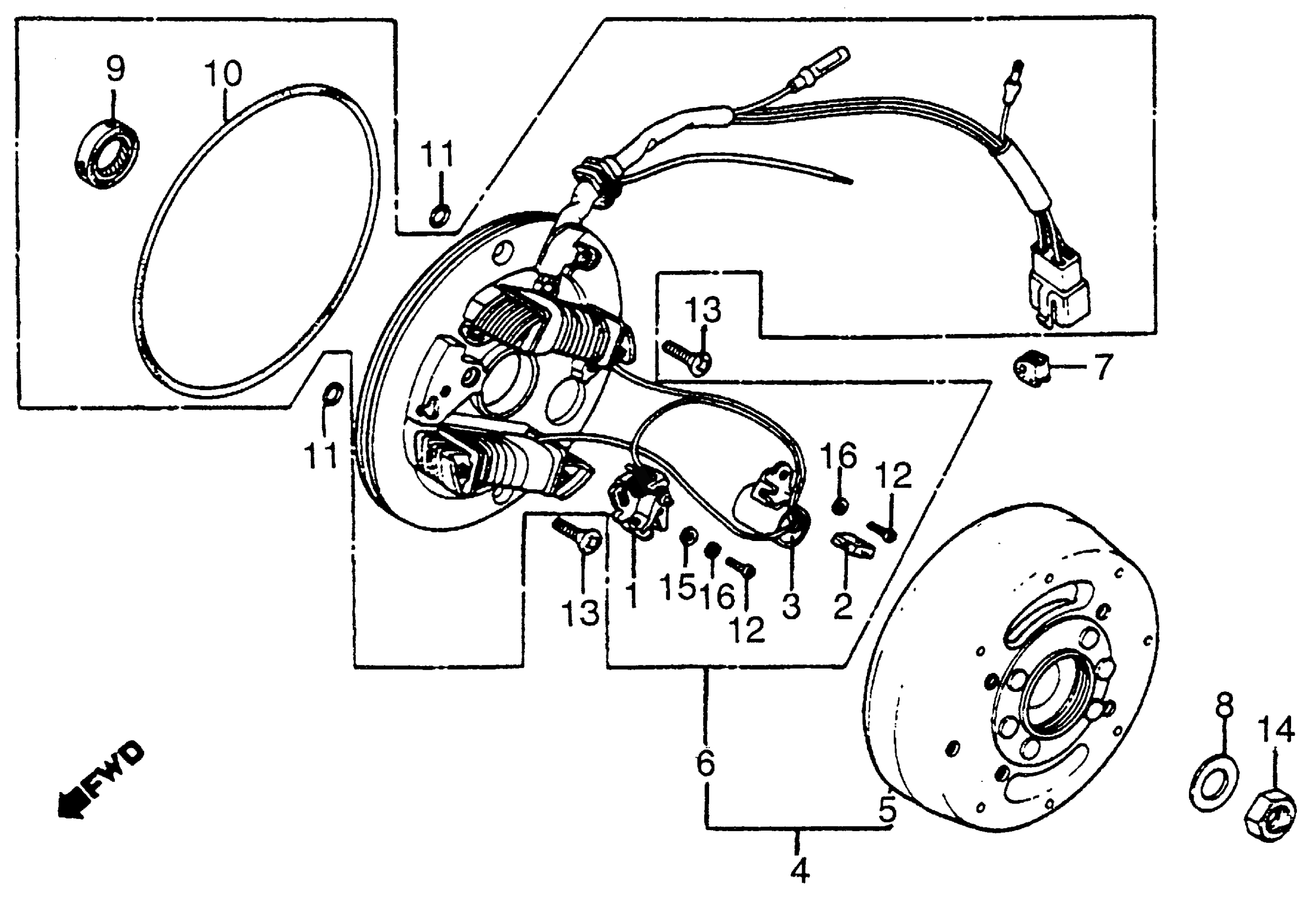

Honda ATC70A (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-EC900001 ALTERNATOR Diagram

POINTS (HITACHI)

30202-041-015

$29.26

FELT, OIL (HITACHI)

30205-041-005

$3.83

CONDENSER (HITACHI)

30250-041-005

$24.74

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-957-005

Unavailable

ROTOR (HITACHI) (NOT AVAILABLE)

31121-957-005

Unavailable

STATOR ASSY. (HITACHI)

31141-957-005

Unavailable

GROMMET, NEUTRAL SWITCH WIRE

32981-035-000

Unavailable

WASHER, MAGNET FIXING

90426-035-000

$2.57

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$6.14

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

O-RING (107X2)

91301-035-003

$7.05

O-RING (6X1.7)

91317-171-003

$2.92

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49
