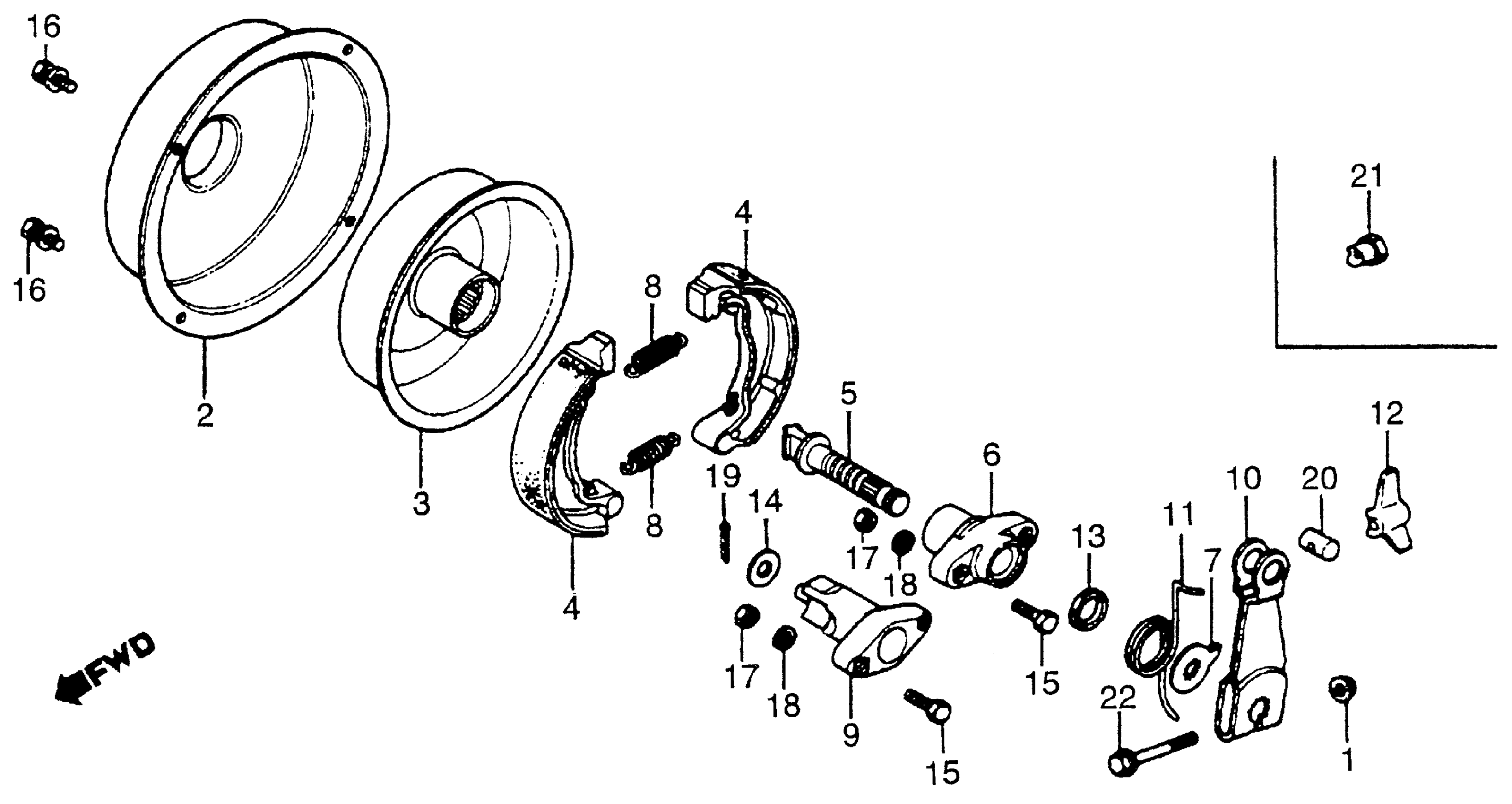

Honda ATC70A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-DC800006 TO JH3TB030-DC827275 REAR BRAKE DRUM Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

COVER, BRAKE DRUM (NOT AVAILABLE)

40532-957-000

Unavailable

3

DRUM, BRAKE (NOT AVAILABLE)

42622-957-000

Unavailable

4

SHOE, BRAKE (NOT AVAILABLE)

43120-957-000

Unavailable

5

CAM, RR. BRAKE

43141-ME4-000

Unavailable

5

CAM, RR. BRAKE This part replaces 43141-399-010.

43141-ME4-000

Unavailable

6

HOLDER, BRAKE CAM (NOT AVAILABLE)

43143-957-010

Unavailable

8

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

9

ANCHOR, BRAKE SHOE (NOT AVAILABLE)

43153-957-000

Unavailable

10

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-957-000.

43410-957-020

Unavailable

10

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-957-010.

43410-957-020

Unavailable

10

ARM, RR. BRAKE (NOT AVAILABLE)

43410-957-020

Unavailable

11

SPRING, BRAKE RETURN (NOT AVAILABLE)

43413-957-000

Unavailable

13

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

14

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

BOLT-WASHER (6X12)

93401-06012-08

$1.55

16

BOLT-WASHER (6X12) This part replaces 93491-06012-08.

93401-06012-08

$1.55

17

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

17

NUT, HEX. (6MM)

94001-06080-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

18

WASHER, SPRING (6MM)

94111-06800

$1.49

19

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

19

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

19

PIN, COTTER (2.0X22)

94201-20220

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

19

PIN, COTTER (2.0X35)

94201-20350

$1.49

19

PIN, COTTER (2.0X22)

94201-29220

$1.49

20

JOINT, BRAKE ARM

95015-32001

$1.49

21

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

22

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

22

BOLT, FLANGE (6X32)

95701-06032-08

$1.89
