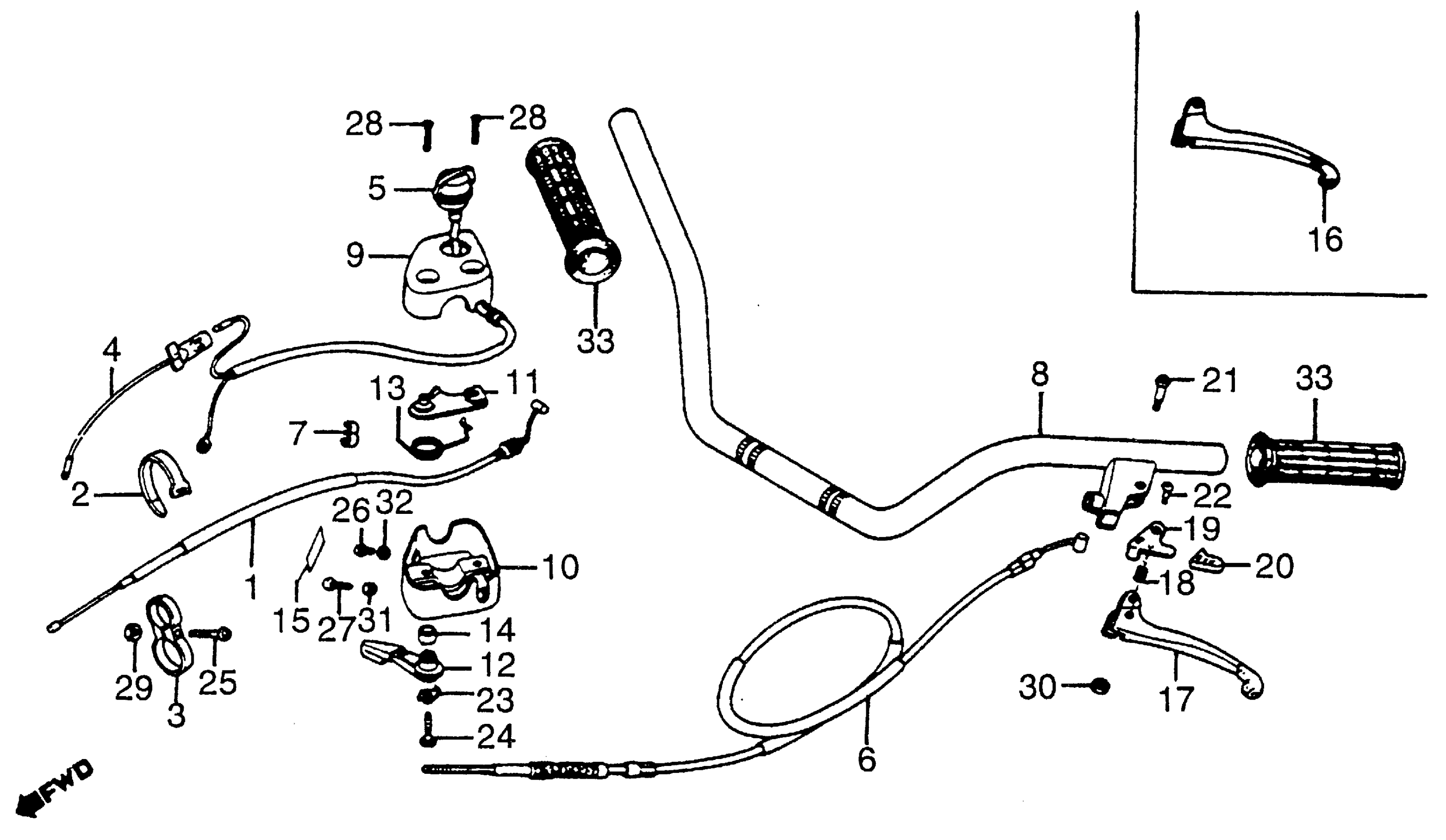

Honda ATC70A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-DC800006 TO JH3TB030-DC827275 HANDLEBAR + SWITCHES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-957-003

Unavailable

2

BAND, THROTTLE CABLE

17914-958-010

Unavailable

3

GUIDE, THROTTLE CABLE

17916-958-000

Unavailable

4

SUB-WIRE HARNESS (NOT AVAILABLE)

32120-957-010

Unavailable

5

SWITCH ASSY., STOP

35300-957-003

$35.31

6

CABLE, BRAKE

43460-957-003

Unavailable

7

CLIP, FR. BRAKE CABLE

45465-270-000

$4.60

8

HANDLEBAR (NOT AVAILABLE) This part replaces 53100-957-010.

53100-957-030

Unavailable

8

HANDLEBAR (NOT AVAILABLE) This part replaces 53100-957-020.

53100-957-030

Unavailable

8

HANDLEBAR (NOT AVAILABLE)

53100-957-030

Unavailable

9

COVER, THROTTLE (NOT AVAILABLE) This part replaces 53141-957-000.

53141-957-670

Unavailable

10

CASE, THROTTLE (NOT AVAILABLE)

53142-957-010

Unavailable

11

ARM, THROTTLE

53144-957-000

Unavailable

12

CONTROL LEVER, THROTTLE

53145-957-000

Unavailable

13

SPRING, THROTTLE (NOT AVAILABLE)

53146-957-000

Unavailable

14

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

15

MARK, THROTTLE CAUTION (NOT AVAILABLE)

53155-957-000

Unavailable

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$13.12

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$13.12

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-010.

53178-GGL-305

$13.12

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$13.12

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$13.12

21

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.33

21

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.33

23

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-957-000

Unavailable

24

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$0.62

24

BOLT, HEX. (5X22)

92101-05022-0A

$0.62

25

SCREW, PAN (4X20)

93500-04020-0A

$0.75

25

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$0.75

26

SCREW, PAN (5X6)

93500-05006-0A

$0.91

27

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.04

27

SCREW, PAN (6X18)

93500-06018-0A

$1.04

28

SCREW, OVAL (5X22)

93700-05022-0B

$0.81

29

NUT, HEX. (4MM)

94001-04000-0S

$0.94

30

NUT, HEX. (5MM)

94001-05000-0S

$2.42

31

NUT, HEX. (6MM)

94002-06000-0S

$1.19

32

WASHER, SPRING (5MM)

94111-05000

$1.03

33

GRIP, L. HANDLE

53166-198-000

$11.33
