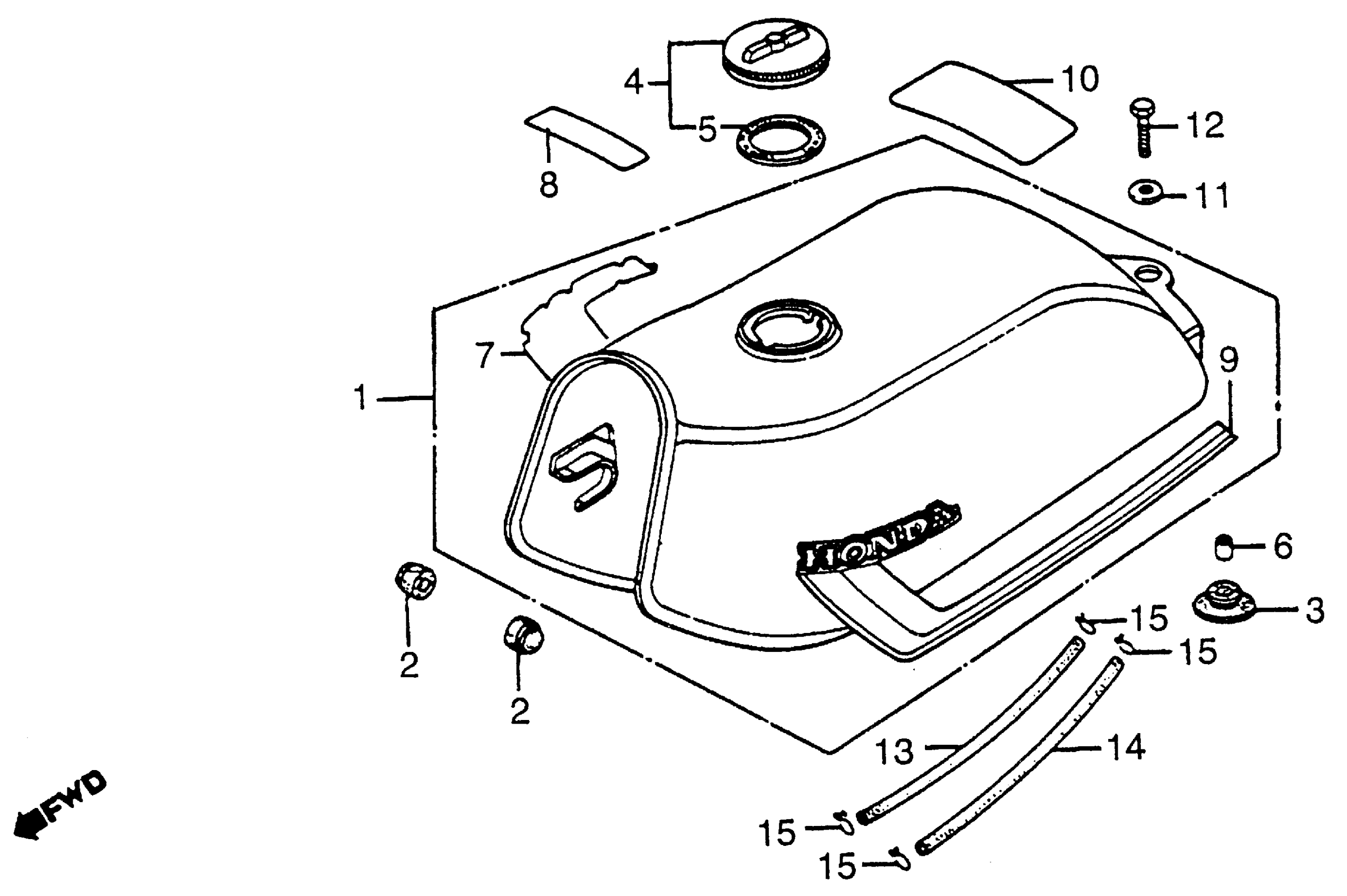

Honda ATC70A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB030-DC800006 TO JH3TB030-DC827275 FUEL TANK 83 Diagram

#

Description
Price

1

TANK SUB-ASSY., FUEL *R109* (PASSION RED) (NOT AVAILABLE)

17520-957-060ZA

Unavailable

1

TANK SUB-ASSY., FUEL (NOT AVAILABLE)

17520-957-303

Unavailable

2

RUBBER, FR. FUEL TANK

17611-028-000

$3.79

3

RUBBER, FUEL TANK

17613-120-000

$4.83

4

CAP, FUEL FILLER This part replaces 17620-165-642.

17620-165-643

$38.14

4

CAP, FUEL FILLER This part replaces 17620-958-003.

17620-165-643

$38.14

4

CAP, FUEL FILLER This part replaces 17620-958-013.

17620-165-643

$38.14

5

GASKET This part replaces 17631-096-700.

17631-096-702

$2.36

5

GASKET This part replaces 17631-096-701.

17631-096-702

$2.36

6

COLLAR B, RR. FENDER

80109-061-010

$2.93

7

STRIPE, R. FUEL TANK (A.M.) (NOT AVAILABLE)

87502-957-020

Unavailable

7

STRIPE, R. FUEL TANK (A.M.) (NOT AVAILABLE)

87502-957-303

Unavailable

8

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87504-130-720ZA

Unavailable

8

PLATE, CAUTION (NOT AVAILABLE)

87505-918-010

Unavailable

9

STRIPE, L. FUEL TANK (A.M.) (NOT AVAILABLE)

87512-957-020

Unavailable

9

STRIPE, L. FUEL TANK (A.M.) (NOT AVAILABLE)

87512-957-303

Unavailable

10

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.68

10

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

10

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

10

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.68

11

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$0.71

11

WASHER, PLAIN (6MM)

94103-06800

$0.71

12

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.41

12

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.41

12

BOLT, HEX. (6X22)

92101-06022-0A

$1.41

13

BULK HOSE, FUEL (5.5X3000) (5.5X120)

95001-55003-60M

$42.48

14

BULK HOSE, FUEL (5.5X3000) (5.5X150)

95001-55003-60M

$42.48

15

CLIP, TUBE (B10)

95002-02100

$1.72
