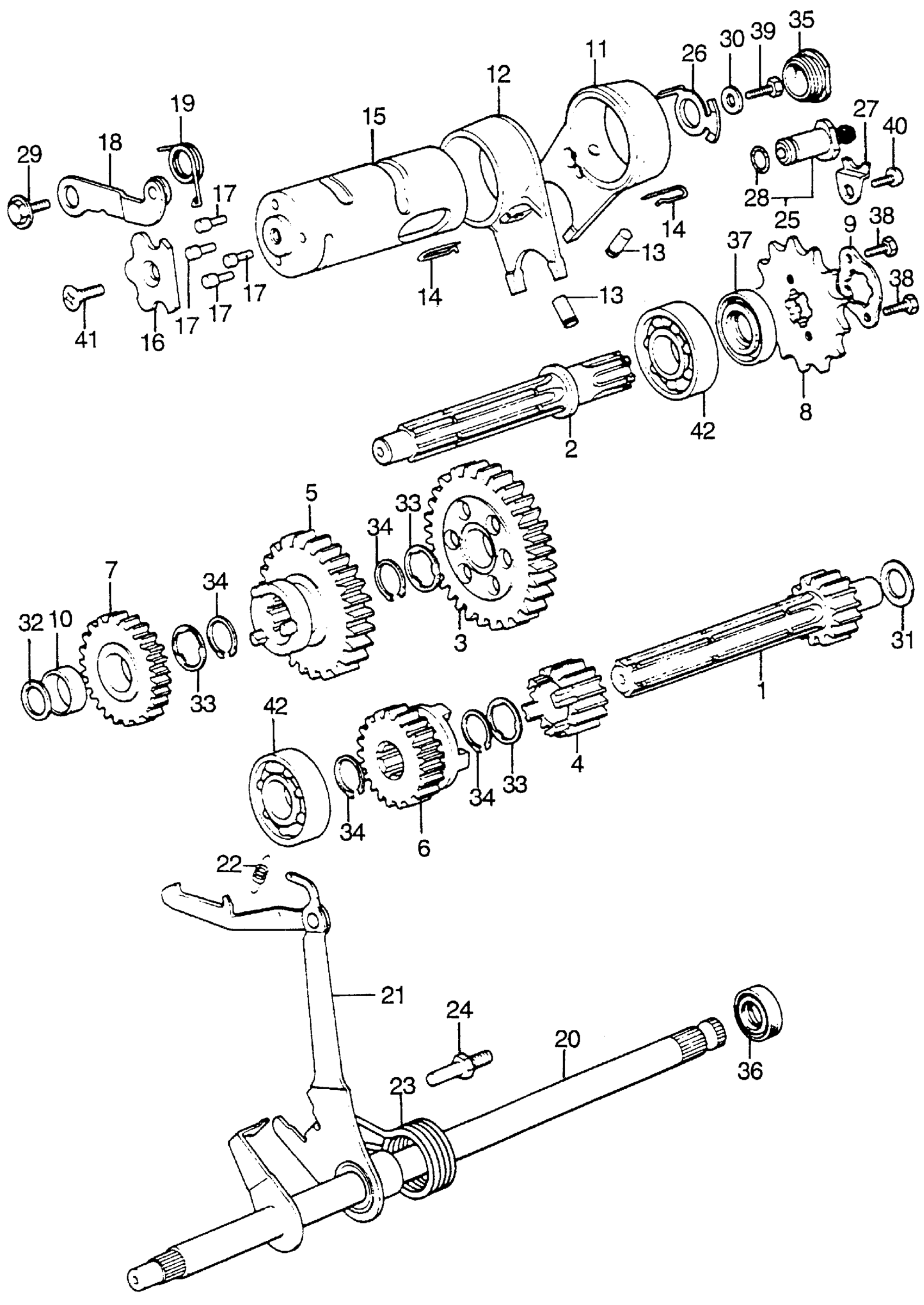

Honda ATC70A (73) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# ATC70-1000001 GEARSHIFT@TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-041-040.

23221-041-050

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE) This part replaces 23421-086-000.

23421-086-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-086-010

Unavailable

4

GEAR, MAINSHAFT SECOND (18T)

23431-040-060

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) This part replaces 23441-086-000.

23441-086-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE)

23441-086-010

Unavailable

6

GEAR, MAINSHAFT TOP (21T) (NOT AVAILABLE)

23471-041-040

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-086-000.

23481-086-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) (NOT AVAILABLE)

23481-086-010

Unavailable

8

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

9

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

10

COLLAR, GEAR This part replaces 23911-041-010.

23911-041-020

Unavailable

10

COLLAR, GEAR (SOURCE: VINTAGE PARTS INC.)

23911-041-020

Unavailable

11

FORK, L. GEARSHIFT This part replaces 24211-087-000.

24211-087-010

$70.77

11

FORK, L. GEARSHIFT

24211-087-010

$70.77

12

FORK, R. GEARSHIFT This part replaces 24221-041-000.

24221-041-010

$84.39

12

FORK, R. GEARSHIFT

24221-041-010

$84.39

13

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

13

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

14

CLIP, GEARSHIFT FORK GUIDE PIN

24263-028-000

$2.66

15

DRUM, GEARSHIFT This part replaces 24301-045-670.

24301-045-673

Unavailable

15

DRUM, GEARSHIFT This part replaces 24301-045-671.

24301-045-673

Unavailable

15

DRUM, GEARSHIFT This part replaces 24301-045-672.

24301-045-673

Unavailable

15

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-045-673

Unavailable

16

PLATE, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24411-041-020

Unavailable

17

PIN, GEARSHIFT DRUM

24421-041-000

$2.07

18

STOPPER, GEARSHIFT DRUM This part replaces 24430-041-000.

24430-041-010

Unavailable

18

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

19

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-GB2-000.

24435-GB2-710

Unavailable

19

SPRING, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24435-GB2-710

Unavailable

19

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-040-000.

24435-GB2-710

Unavailable

20

SPINDLE, GEARSHIFT

24610-098-730

$58.95

21

ARM, GEARSHIFT This part replaces 24630-086-000.

24630-086-030

Unavailable

21

ARM, GEARSHIFT This part replaces 24630-086-010.

24630-086-030

Unavailable

21

ARM, GEARSHIFT This part replaces 24630-086-020.

24630-086-030

Unavailable

22

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

23

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

24

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

25

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

26

ROTOR, NEUTRAL SWITCH

35753-035-010

Unavailable

27

PLATE, CONTACT FIXING

35755-001-020

Unavailable

28

O-RING (7X1.6) (NOT AVAILABLE)

37551-001-000

Unavailable

29

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

29

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

30

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

31

WASHER, THRUST (14MM)

90451-001-000

$3.67

32

WASHER (13.5MM) (NOT AVAILABLE)

90451-035-000

Unavailable

33

WASHER, SPLINE (17MM)

90461-035-000

$2.57

34

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

35

PLUG, RUBBER (19MM)

90801-035-000

$2.92

36

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

36

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

36

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

36

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

36

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$4.06

37

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

37

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

38

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

38

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

38

BOLT, HEX. (6X8) BOLT, HEX. (6X10)

92101-06008-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

40

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

40

SCREW, PAN (6X12)

93500-06012-0A

$1.49

40

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

41

SCREW, OVAL (6X20) This part replaces 93700-06020.

93700-06020-0A

$1.49

41

SCREW, OVAL (6X20)

93700-06020-0A

$1.49

42

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

42

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
