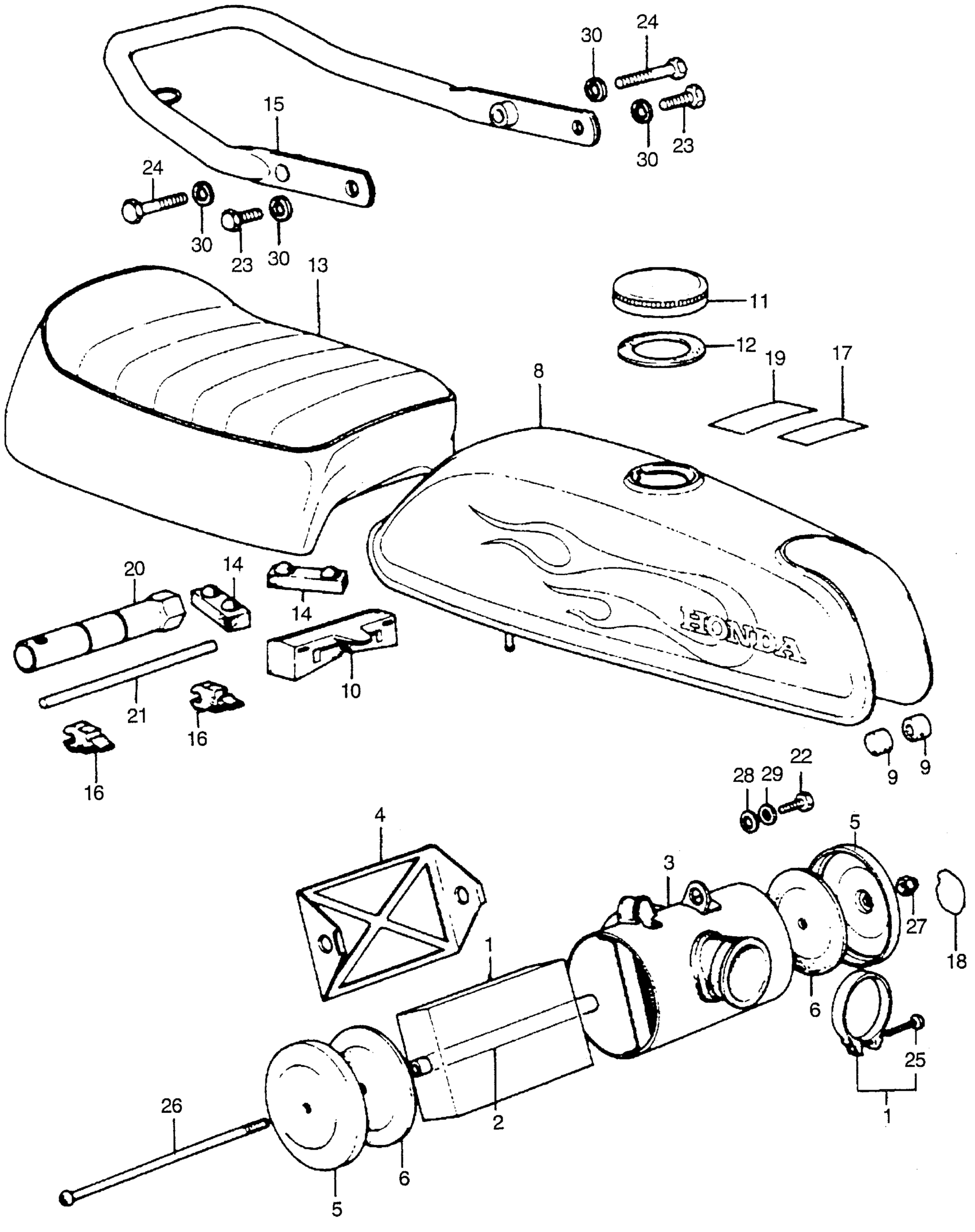

Honda ATC70A (73) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# ATC70-1000001 FUEL TANK@SEAT@AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-098-771

$5.58

2

PIPE, AIR CLEANER (INNER) (NOT AVAILABLE)

17212-045-010

Unavailable

3

HOUSING, AIR CLEANER (NOT AVAILABLE)

17221-937-000

Unavailable

4

PLATE, AIR CLEANER ELEMENT MOUNT

17222-098-771

$6.58

5

COVER, AIR CLEANER HOUSING

17231-045-030

$8.34

6

GASKET, AIR CLEANER HOUSING

17252-098-771

$10.42

7

BAND, INSULATOR

16223-GBF-830

$10.35

7

BAND, INSULATOR This part replaces 17255-098-000.

16223-GBF-830

$10.35

7

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$10.35

8

TANK ASSY., FUEL *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

17510-937-000BB

Unavailable

9

RUBBER, FR. FUEL TANK

17611-045-670

$6.34

10

RUBBER, RR. FUEL TANK

17613-051-010

$8.78

11

CAP, FUEL FILLER This part replaces 17610-102-730.

17620-102-730

Unavailable

11

CAP, FUEL FILLER

17620-102-730

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-114-000.

17620-102-730

Unavailable

12

GASKET This part replaces 17631-001-000.

17631-096-702

$2.36

12

GASKET This part replaces 17631-096-701.

17631-096-702

$2.36

12

GASKET

17631-096-702

$2.36

13

SEAT *NH1L* (BLACK) (NOT AVAILABLE)

77100-937-000A

Unavailable

14

RUBBER B, SEAT SETTING

77205-286-000

$4.92

15

PIPE, CARRIER (NOT AVAILABLE)

81200-937-000

Unavailable

16

RUBBER A, BAR CLAMP (NOT AVAILABLE)

86891-538-000

Unavailable

17

PLATE, CAUTION (NOT AVAILABLE)

87505-918-010

Unavailable

18

LABEL, CHOKE (NOT AVAILABLE)

87522-937-000

Unavailable

19

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.58

19

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.58

20

WRENCH, SPARK PLUG (NOT AVAILABLE)

89210-937-000

Unavailable

21

BAR, HANDLE

89217-045-670

$4.61

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

23

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.35

23

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

23

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

23

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.35

24

BOLT, HEX. (8X35) This part replaces 92000-08035.

92101-08035-0A

$0.88

24

BOLT, HEX. (8X35) This part replaces 92000-08035-0A.

92101-08035-0A

$0.88

24

BOLT, HEX. (8X35) This part replaces 92000-08036.

92101-08035-0A

$0.88

24

BOLT, HEX. (8X35) This part replaces 92000-08036-0A.

92101-08035-0A

$0.88

24

BOLT, HEX. (8X35)

92101-08035-0A

$0.88

24

BOLT, HEX. (8X35) This part replaces 92101-08036-0A.

92101-08035-0A

$0.88

25

SCREW, PAN (4X25)

93500-04025-0A

$1.71

26

SCREW, PAN (6X135) This part replaces 93500-06135-0B.

93500-06135-1B

$3.22

26

SCREW, PAN (6X135) This part replaces 93500-06135-02.

93500-06135-1B

$3.22

26

SCREW, PAN (6X135)

93500-06135-1B

$3.22

27

NUT, CAP (6MM)

94021-06020

$1.65

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

28

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

29

WASHER, SPRING (6MM)

94111-06000

$0.86

30

WASHER, SPRING (8MM)

94111-08000

$0.90
