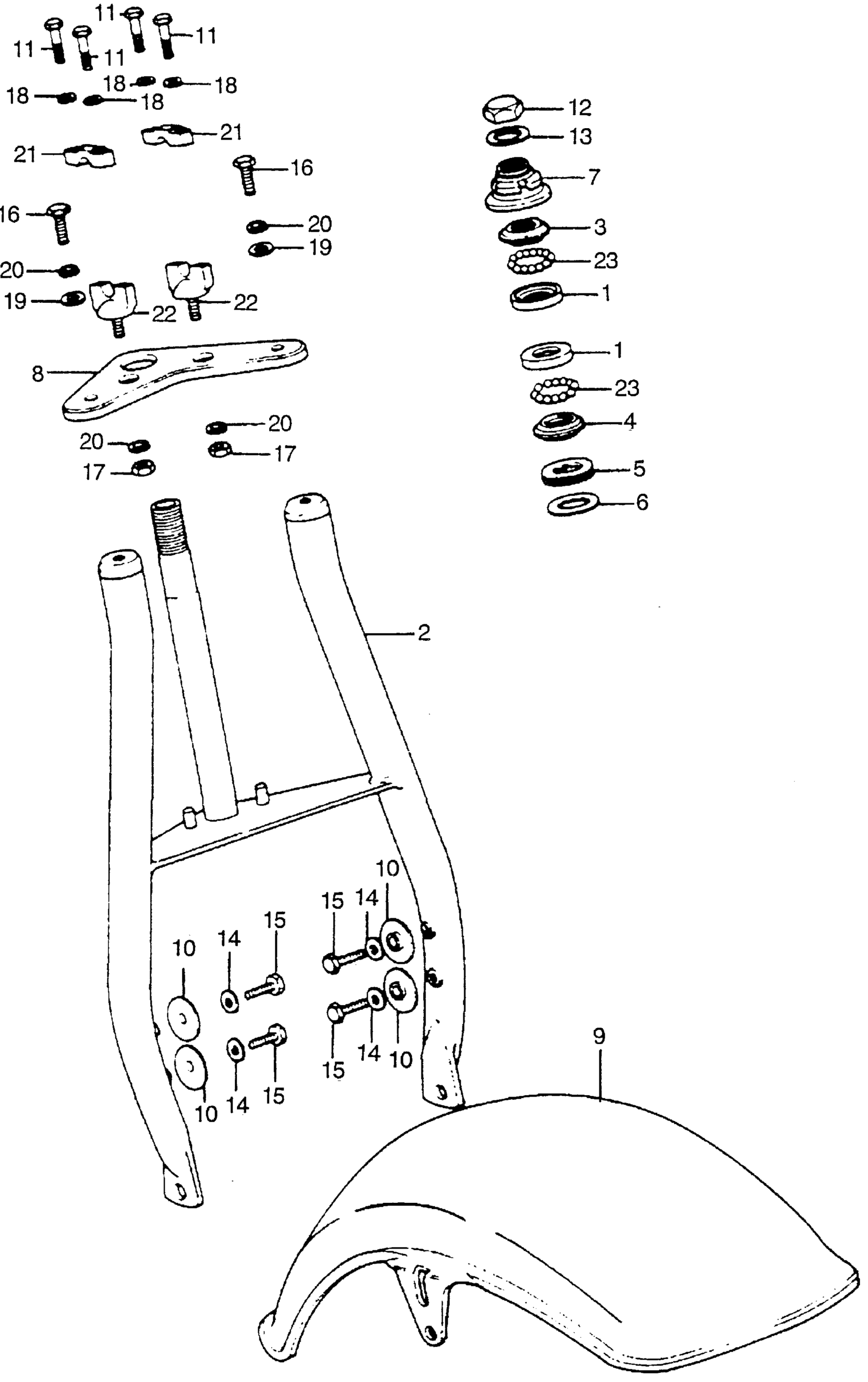

Honda ATC70A (73) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# ATC70-1000001 FRONT FORK@FRONT FENDER Diagram

#

Description
Price

1

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

1

RACE, STEERING TOP BALL

50301-041-010

$12.39

1

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

2

FORK, FR. *NH42MC* (CUSTOM SILVER) (NOT AVAILABLE)

51400-937-000NQ

Unavailable

3

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

3

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

4

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

4

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

4

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

5

DUST SEAL, STEERING HEAD

53214-GJG-C20

$2.59

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

6

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

7

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

8

PLATE, FORK TOP BRIDGE *NH42MC* (CUSTOM SILVER) (NOT AVAILABLE)

53231-937-000NQ

Unavailable

9

FENDER, FR. *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

61100-937-000BB

Unavailable

10

WASHER, FR. COVER FIXING

64348-086-000

$3.62

11

BOLT, HEX. (6X28)

90117-065-000

$2.62

12

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$7.02

12

NUT, STEERING STEM

90304-159-000

$7.02

12

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02

13

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.84

13

WASHER, STEERING STEM

90503-051-870

$2.84

14

WASHER (6.5X20) WASHER, FENDER MOUNTING

90545-292-000

$1.77

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (10X20) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10020-0A.

92101-10020-0A

Unavailable

17

NUT, HEX. (10MM)

94001-10000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

19

WASHER, PLAIN (10MM)

94101-10000

$1.49

20

WASHER, SPRING (10MM)

94111-10000

$1.49

21

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$6.31

21

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.31

22

HOLDER B1, HANDLEBAR (LOWER)

95014-32100

$13.08

23

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
