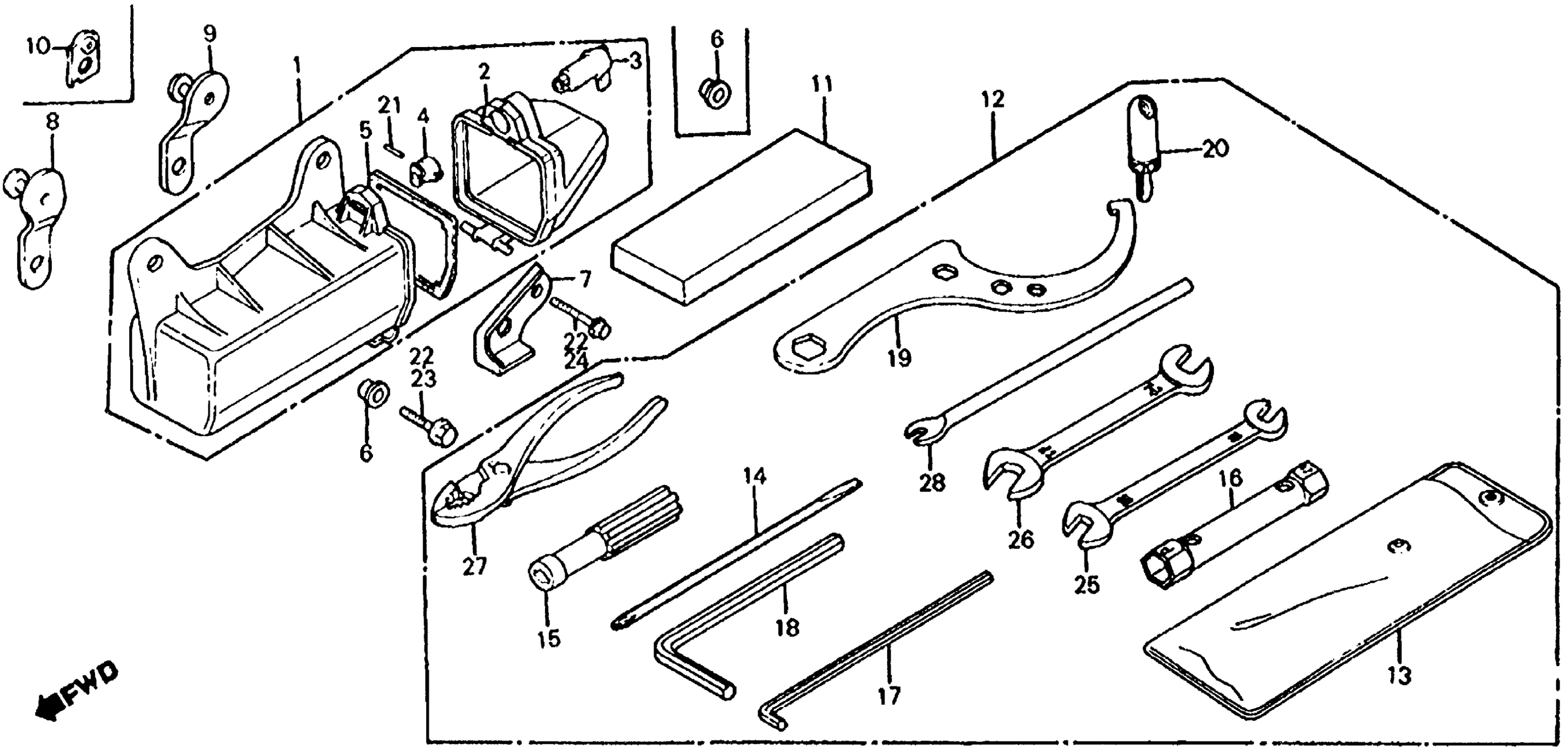

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 TOOLS Diagram

#

Description
Price

1

BOX ASSY., TOOL This part replaces 83500-VM6-680.

83500-HB6-670

Unavailable

2

CAP, TOOL BOX

83505-VM6-680

Unavailable

3

BODY, KNOB

83507-965-000

Unavailable

4

STOPPER, KEY BODY

83508-965-000

Unavailable

5

SEAL, TOOL BOX

83510-VM6-680

Unavailable

6

COLLAR, TOOL BOX SETTING | Use up to Frame SN GM110531

83511-VM6-680

Unavailable

6

COLLAR, TOOL BOX SETTING | Use from Frame SN GM110532

83511-VM6-680

Unavailable

7

COLLAR, TOOL BOX SETTING (NOT AVAILABLE) | Use from Frame SN GM110532

83512-HA5-670

Unavailable

8

STAY A, TOOL BOX (NOT AVAILABLE)

83513-HA5-670

Unavailable

9

STAY B, TOOL BOX (NOT AVAILABLE)

83514-HA5-670

Unavailable

12

TOOL SET

89010-HA5-670

Unavailable

13

BAG, TOOL This part replaces 89101-965-003.

89101-ME5-670

Unavailable

14

SHAFT, SCREWDRIVER

89102-538-000

$5.62

15

GRIP

89103-538-000

$4.08

16

WRENCH, BOX (18X17)

89213-968-000

Unavailable

17

WRENCH, HEX. (6MM)

89221-HA2-670

Unavailable

18

WRENCH, HEX. (8MM)

89222-371-000

Unavailable

20

GAUGE, TIRE PRESSURE (RIKEN)

89301-VM6-682

Unavailable

21

PIN, SPRING (2X14)

94305-20141

$1.49

22

BOLT, FLANGE (8X50) This part replaces 90132-MG3-000.

95801-08050-00

$2.98

22

BOLT, FLANGE (8X50)

95801-08050-00

$2.98

22

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.98

25

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

26

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

27

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

28

BAR B, HANDLE

99005-02000

$2.52
