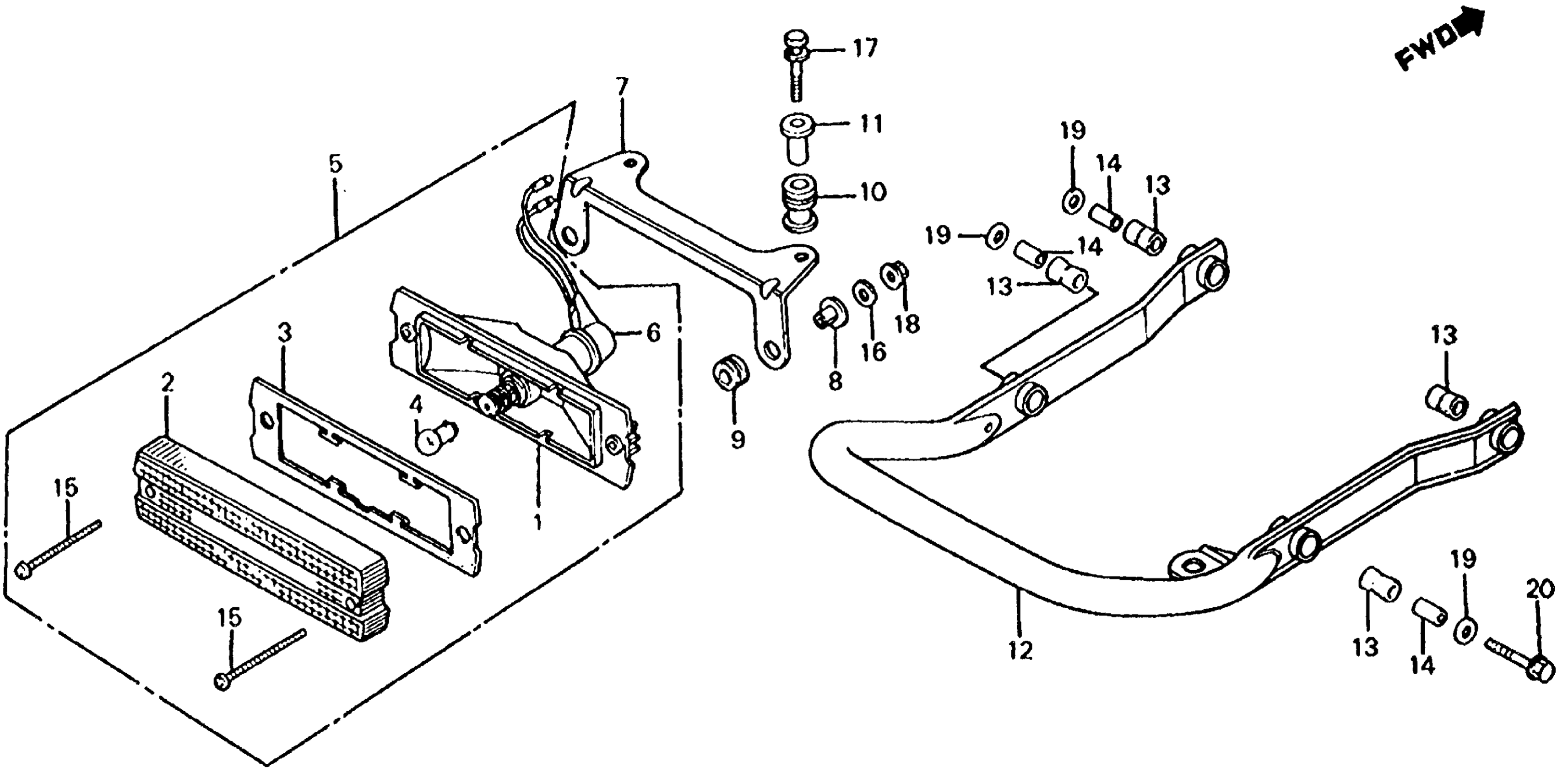

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 TAILLIGHT Diagram

#

Description
Price

1

HOUSING, TAILLIGHT (NOT AVAILABLE)

33300-965-003

Unavailable

2

LENS, TAILLIGHT

33302-965-003

Unavailable

3

GASKET, TAILLIGHT

33303-965-003

Unavailable

4

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 34905-965-003.

34910-504-003

Unavailable

4

BULB (12V5W) (STANLEY) (NOT AVAILABLE)

34910-504-003

Unavailable

5

TAILLIGHT ASSY.

33700-VM4-770

Unavailable

5

TAILLIGHT ASSY. This part replaces 33700-965-003.

33700-VM4-770

Unavailable

6

COVER, SOCKET

33702-965-003

Unavailable

7

BRACKET, TAILLIGHT (NOT AVAILABLE)

33705-965-000

Unavailable

8

COLLAR, TAILLIGHT MOUNTING

33712-965-000

Unavailable

9

RUBBER, TAILLIGHT SETTING

33715-965-000

$5.10

10

RUBBER, TAILLIGHT MOUNT (NOT AVAILABLE)

33731-958-670

Unavailable

11

COLLAR, TAILLIGHT MOUNT (NOT AVAILABLE)

33732-HA5-000

Unavailable

12

PIPE, CARRIER (NOT AVAILABLE)

81200-HA5-670

Unavailable

15

SCREW, PAN (4X50)

90121-965-003

Unavailable

16

WASHER, SPECIAL (4MM) (NOT AVAILABLE)

90555-357-000

Unavailable

17

BOLT-WASHER (6X35)

93482-06035-08

$2.00

17

BOLT-WASHER (6X35) This part replaces 93492-06035-08.

93482-06035-08

$2.00

18

NUT, FLANGE (4MM)

94050-04000

$1.49

20

BOLT, FLANGE (8X16)

96300-08016-00

$1.49

20

BOLT, FLANGE (8X16) This part replaces 96400-08016-00.

96300-08016-00

$1.49

20

BOLT, FLANGE (8X16) This part replaces 96500-08016-00.

96300-08016-00

$1.49
