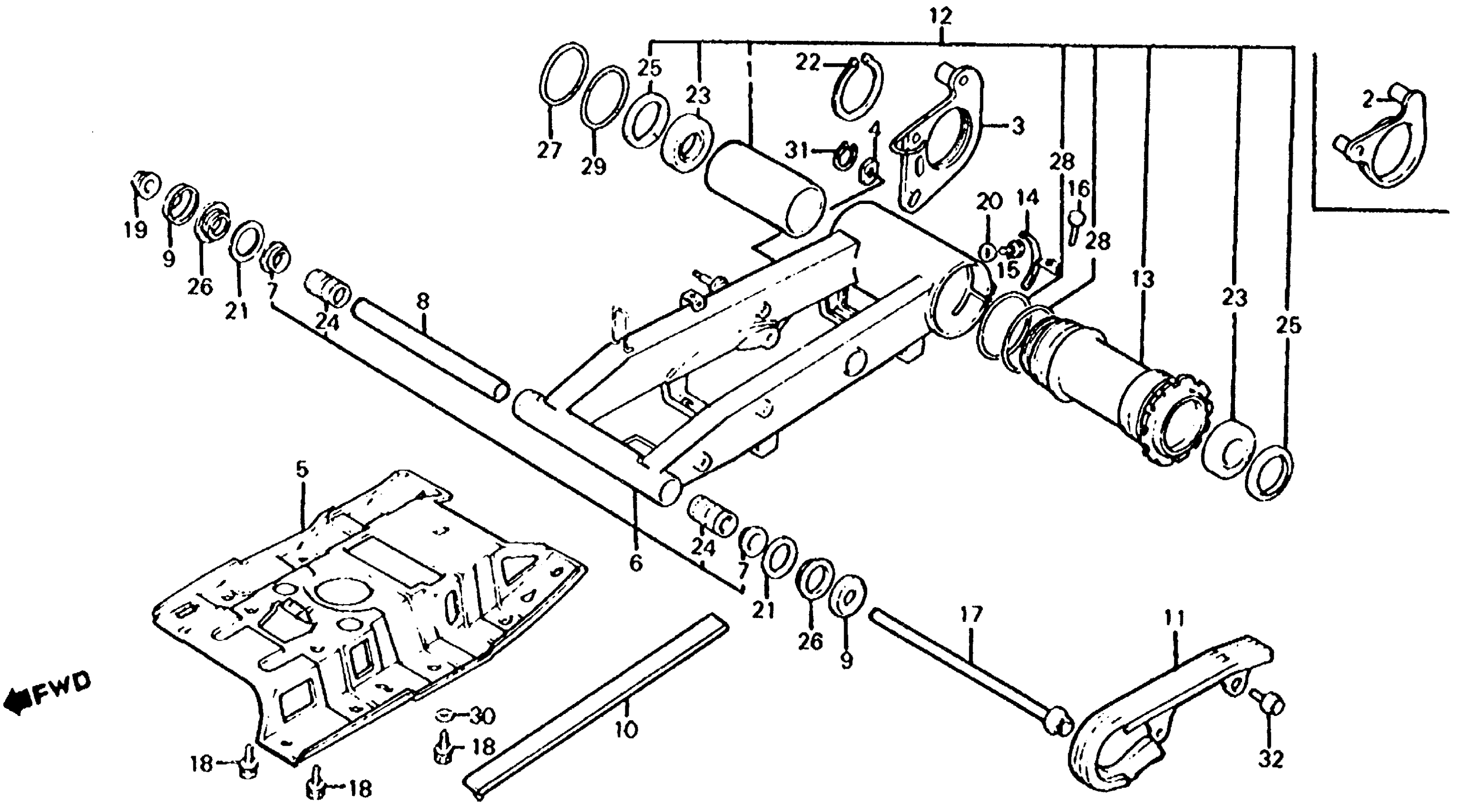

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 SWINGARM Diagram

#

Description
Price

1

COLLAR, RR. AXLE

42621-HA5-000

Unavailable

3

STAY, RR. CALIPER (NOT AVAILABLE)

43211-HA5-670

Unavailable

4

BUSH, RR. BRAKE STAY

43483-HA2-670

Unavailable

5

PLATE, SKID (NOT AVAILABLE)

50355-HA5-670

Unavailable

6

SWINGARM ASSY., RR. (NOT AVAILABLE) | Use up to Frame SN GM110531 This part replaces 52000-HA5-671.

52000-HA5-672

Unavailable

6

SWINGARM ASSY., RR. (NOT AVAILABLE) | Use from Frame SN GM110532

52000-HA5-672

Unavailable

7

BUSH, PIVOT THRUST

52109-KA4-701

$14.27

8

COLLAR, RR. SWINGARM PIVOT (NOT AVAILABLE)

52141-HA5-000

Unavailable

9

CAP, SWINGARM DUST SEAL

52144-HA5-000

$11.63

10

SLIDER, SKID PLATE This part replaces 52156-HA2-000.

52156-HB9-000

Unavailable

10

SLIDER, SKID PLATE

52156-HB9-000

Unavailable

11

SLIDER, CHAIN (NOT AVAILABLE)

52170-HA5-000

Unavailable

12

HOLDER ASSY., BEARING (NOT AVAILABLE)

52200-HA5-670

Unavailable

13

HOLDER, BEARING (NOT AVAILABLE)

52201-HA5-670

Unavailable

14

SEAL, BEARING HOLDER

52202-HA2-000

$13.67

15

BOLT, STOPPER (8MM)

90115-964-003

$3.42

16

BOLT, SOCKET (8MM)

90116-125-782

Unavailable

17

BOLT, SWINGARM (NOT AVAILABLE)

90117-HA5-000

Unavailable

18

BOLT, FLANGE (8X12)

90190-MG3-000

$3.33

19

NUT, U (14MM)

90305-GE8-003

$3.59

20

WASHER (8MM)

90481-035-000

$1.70

21

WASHER, PLAIN (32MM)

90551-HA5-000

$6.06

22

CIRCLIP (OUTER) (70MM)

90665-964-000

$11.36

23

BEARING (40X62X12) (KOYO) This part replaces 91051-HA2-003.

91051-HA2-013

$32.59

23

BEARING (40X62X12)

91051-HA2-013

$32.59

24

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$29.73

25

DUST SEAL (52X62X7)

91252-HA2-003

$14.50

26

DUST SEAL

91253-KA4-701

$11.54

26

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$11.54

27

O-RING, ROTARY CASE

91351-737-752

$4.79

28

O-RING, BEARING HOLDER (76X3)

91353-HA2-003

$6.36

28

O-RING, BEARING HOLDER (ARAI) This part replaces 91353-HA2-005.

91353-HA2-003

$6.36

29

O-RING (69X2)

91302-MS2-003

$3.84

29

O-RING (69X2) This part replaces 91355-HA2-670.

91302-MS2-003

$3.84

29

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$3.84

30

WASHER, PLAIN (8MM)

94103-08000

$0.59

31

CIRCLIP (OUTER) (12MM)

94510-12000

$1.65

32

BOLT, FLANGE (6X10)

96300-06010-00

$0.86

32

BOLT, FLANGE (6X10) This part replaces 96500-06010-00.

96300-06010-00

$0.86
