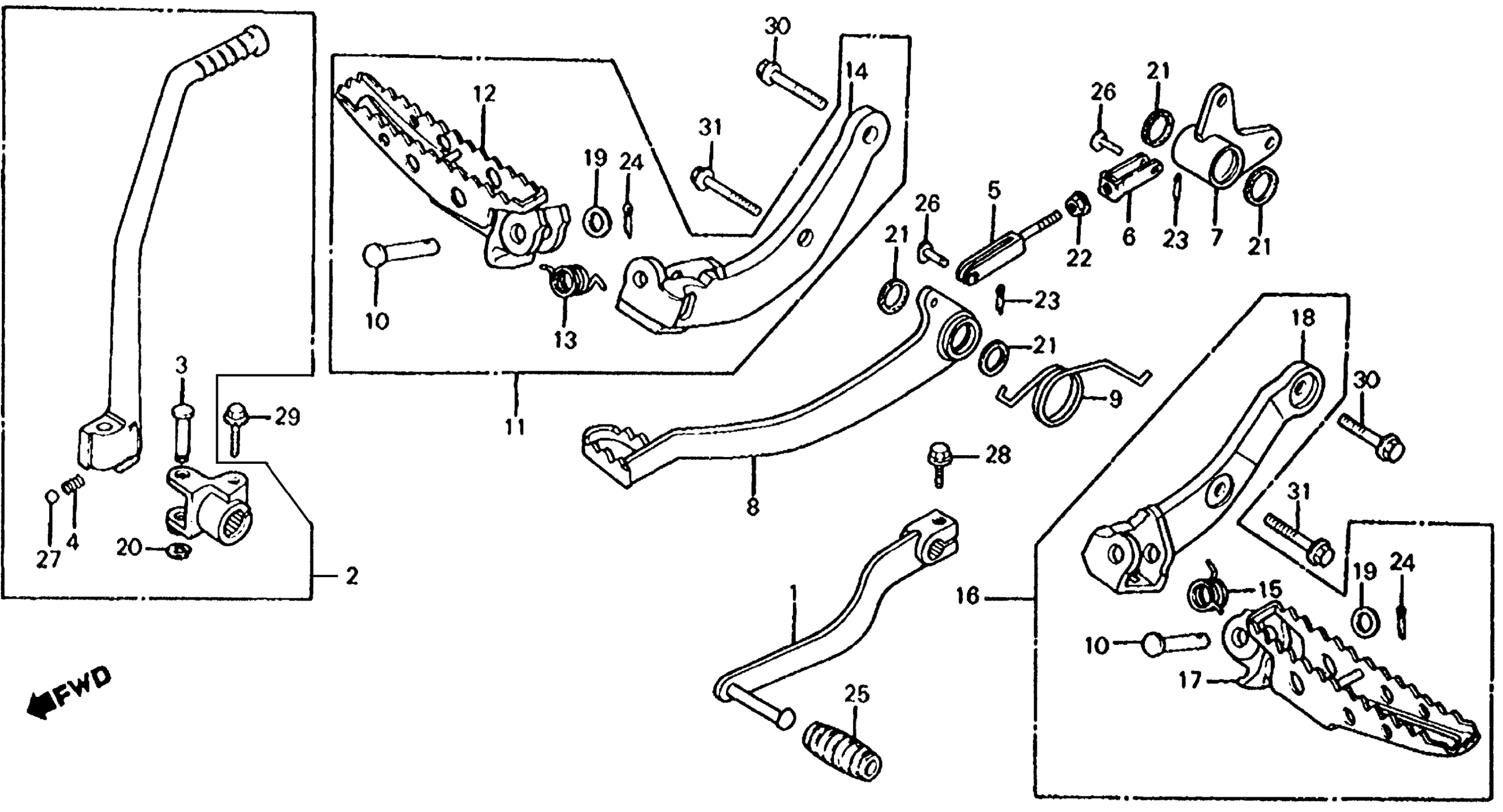

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 STEP + CHANGE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-HA5-000

Unavailable

2

ARM ASSY., KICK STARTER

28300-HA5-000

Unavailable

3

PIN, KICK STARTER (NOT AVAILABLE)

28321-HA6-000

Unavailable

4

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

5

ROD, RR. BRAKE (NOT AVAILABLE)

43451-HA5-000

Unavailable

6

JOINT, BRAKE ROD (NOT AVAILABLE)

43452-HA5-000

Unavailable

7

ARM, MIDDLE BRAKE (NOT AVAILABLE)

46502-HA5-000

Unavailable

8

PEDAL, BRAKE (NOT AVAILABLE)

46510-HA5-000

Unavailable

9

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-HA5-000

Unavailable

10

PIN, STEP JOINT

50603-HA5-000

Unavailable

11

ARM ASSY., R. STEP (NOT AVAILABLE)

50610-HA5-670

Unavailable

12

STEP, R. (NOT AVAILABLE) This part replaces 50611-HA5-670.

50610-HA2-670

Unavailable

13

SPRING, R. STEP RETURN

50617-HA0-680

Unavailable

13

SPRING, R. STEP RETURN This part replaces 50617-964-000.

50617-HA0-680

Unavailable

14

ARM, R. STEP

50618-HA5-670

Unavailable

15

SPRING, L. STEP RETURN

50618-HA0-680

Unavailable

15

SPRING, L. STEP RETURN This part replaces 50618-964-000.

50618-HA0-680

Unavailable

16

ARM ASSY., L. STEP (NOT AVAILABLE)

50640-HA5-670

Unavailable

17

STEP, L.

50620-HA2-670

Unavailable

17

STEP, L. This part replaces 50641-HA5-670.

50620-HA2-670

Unavailable

18

ARM, L. STEP (NOT AVAILABLE)

50648-HA5-670

Unavailable

19

WASHER (10.2MM)

90401-430-000

$1.64

20

E-RING (8MM)

90601-473-003

$2.25

21

OIL SEAL (19X25X3)

91206-965-003

Unavailable

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

23

PIN, COTTER (1.6X25)

94201-16250

$1.49

24

PIN, COTTER (2.0X15)

94201-20150

$1.49

25

RUBBER, SHIFT PEDAL

95011-40000

$1.49

26

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

28

BOLT, FLANGE (6X20)

90118-968-000

$4.24

29

BOLT, FLANGE (8X32)

96300-08032-00

$1.62

29

BOLT, FLANGE (8X32) This part replaces 96500-08032-00.

96300-08032-00

$1.62

30

BOLT, FLANGE (10X25)

96300-10025-00

$2.39

30

BOLT, FLANGE (10X25) This part replaces 96500-10025-00.

96300-10025-00

$2.39

31

BOLT, FLANGE (10X40)

96400-10040-00

$2.41

31

BOLT, FLANGE (10X50)

96400-10050-00

$2.08
