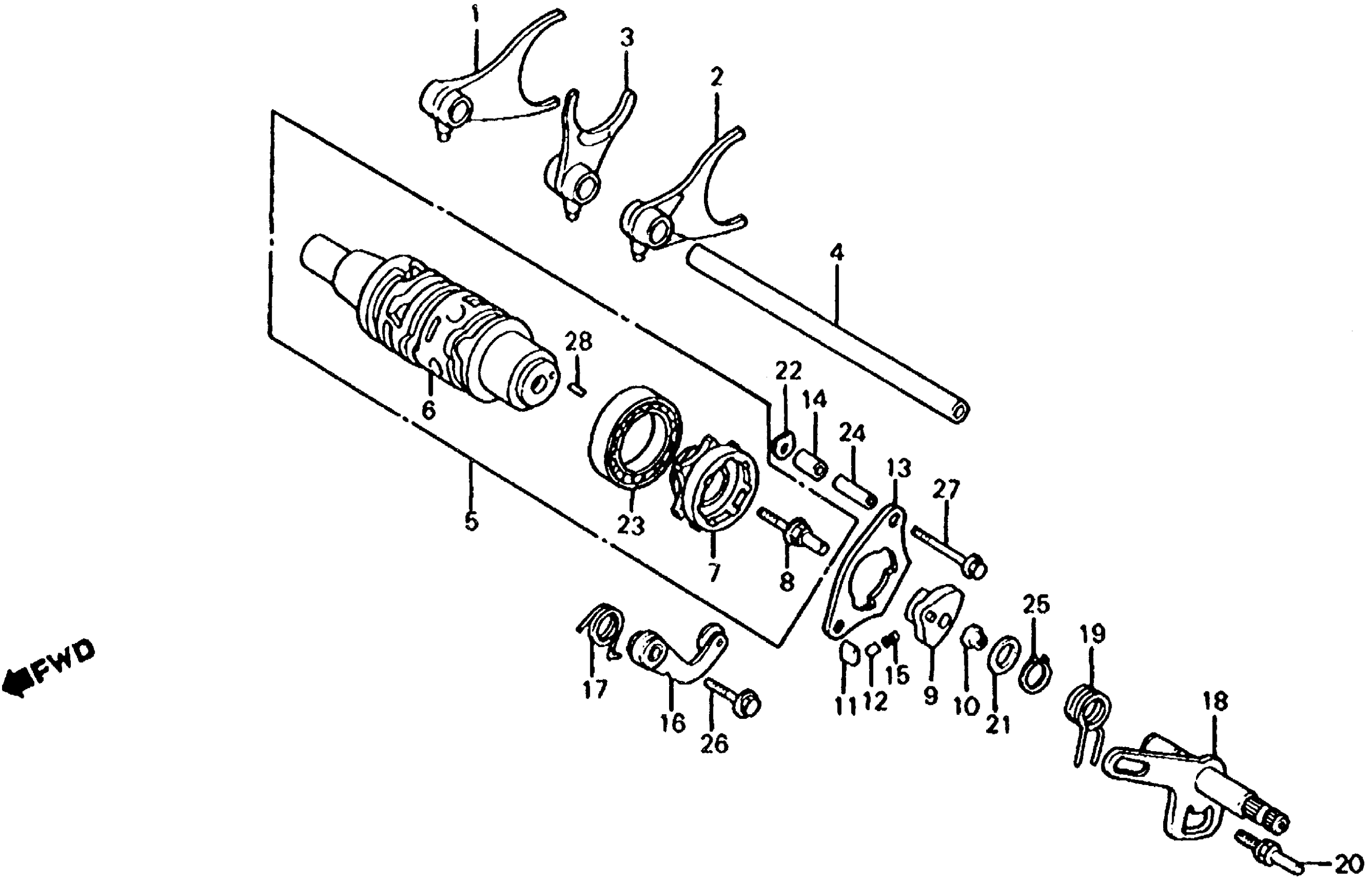

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 SHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HA5-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24212-HA5-000

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24213-HA5-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HA5-000

Unavailable

5

DRUM ASSY., GEARSHIFT (NOT AVAILABLE)

24300-HA5-670

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-HA5-670

Unavailable

7

CENTER, SHIFT DRUM (NOT AVAILABLE)

24312-HA5-003

Unavailable

8

PIN, SHIFTER

24315-KA3-710

$21.03

9

SHIFTER, DRUM

24321-HA5-000

Unavailable

10

COLLAR, SHIFTER

24322-HA0-000

$5.49

11

PAWL, RATCHET

24324-KA3-740

Unavailable

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

12

PLUNGER, PAWL

24326-360-010

$5.19

13

PLATE, GUIDE

24328-HA5-010

Unavailable

14

COLLAR, GUIDE PLATE DISTANCE

24329-HA0-000

$5.81

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, GEARSHIFT DRUM

24430-HA0-000

Unavailable

17

SPRING, SHIFT DRUM STOPPER

24435-HA0-000

$3.17

17

SPRING, SHIFT DRUM STOPPER This part replaces 24435-HA5-000.

24435-HA0-000

$3.17

18

ARM, GEARSHIFT (NOT AVAILABLE)

24610-HA5-670

Unavailable

19

SPRING, SHIFT RETURN

24651-HA5-000

Unavailable

20

PIN, GEARSHIFT RETURN SPRING

24652-HA5-000

Unavailable

21

WASHER, THRUST (13MM)

90401-HA5-000

$4.22

22

PLATE, BEARING HOLDER

90441-HA0-000

Unavailable

23

BEARING (16005) (KOYO)

91051-719-003

$28.92

24

PIN, DOWEL (8X26.5)

91104-HA0-000

$4.74

25

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

26

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

26

BOLT, FLANGE (6X32) This part replaces 95900-06032-00.

95701-06032-00

$1.89

27

BOLT, FLANGE (6X40) | Use up to Engine SN 5112009 This part replaces 95900-06040-08.

95701-06040-08

$1.80

27

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

27

BOLT, FLANGE (6X40) | Use up to Engine SN 5112009

95701-06040-08

$1.80

28

ROLLER (4X8)

96220-40080

$1.49
