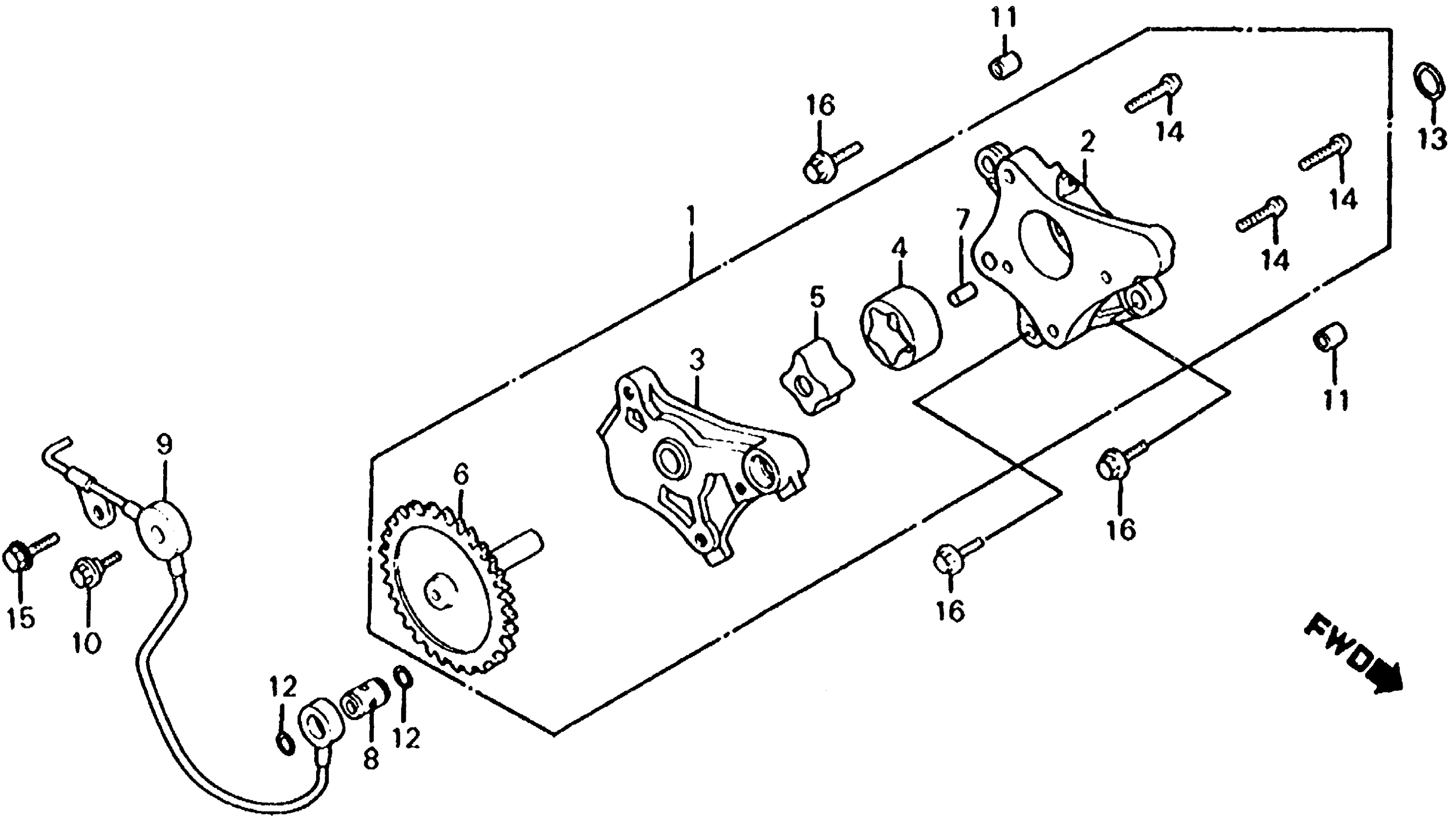

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 OIL PUMP Diagram

PUMP ASSY., OIL (NOT AVAILABLE)

15100-HA5-000

Unavailable

BODY, OIL PUMP

15111-HA5-000

Unavailable

COVER, OIL PUMP

15121-HA5-000

Unavailable

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15122-429-000

Unavailable

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15123-429-000

Unavailable

GEAR, OIL PUMP DRIVEN

15140-HA5-000

Unavailable

ROLLER (6X8)

15141-KF0-000

$4.51

PIN, DOWEL (10X18)

15142-KF0-000

Unavailable

PIPE, OIL

15510-HA5-000

Unavailable

BOLT, FLANGE (7X18.5)

15532-HA0-000

$9.59

PIN, DOWEL (8X10)

91103-429-000

$2.56

O-RING (10X2) (ARAI)

91304-HA5-003

$3.92

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

SCREW, PAN (5X22)

93500-05022-0A

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X22) | Use up to Engine SN 5112009 This part replaces 95700-06022-00.

95701-06022-00

$1.80

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X22) | Use up to Engine SN 5112009

95701-06022-00

$1.80
