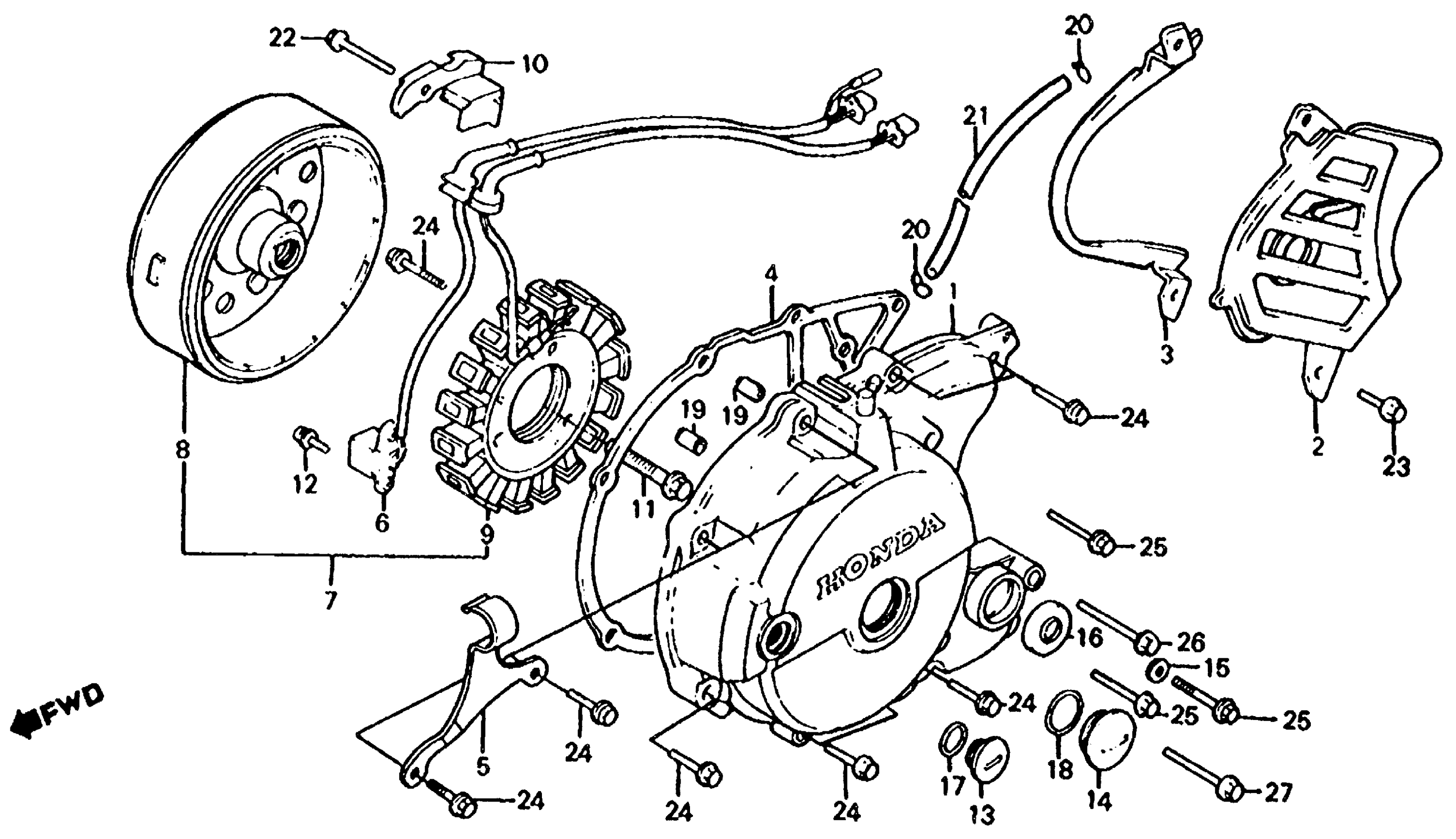

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-HA5-670

Unavailable

2

COVER, L. RR. CRANKCASE

11351-HA5-670

Unavailable

3

GUIDE, DRIVE CHAIN

11352-HA5-000

Unavailable

4

GASKET, L. COVER This part replaces 11395-HA5-000.

11395-HA5-306

Unavailable

4

GASKET, L. COVER

11395-HA5-306

Unavailable

5

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22839-HA5-670

Unavailable

6

GENERATOR ASSY., PULSE (NOT AVAILABLE)

30300-HA5-000

Unavailable

7

ALTERNATOR ASSY., FLYWHEEL TYPE (NOT AVAILABLE) This part replaces 31100-HA5-003.

31100-HA5-004

Unavailable

7

ALTERNATOR ASSY., FLYWHEEL TYPE (NOT AVAILABLE)

31100-HA5-004

Unavailable

8

FLYWHEEL (NOT AVAILABLE)

31110-HA5-003

Unavailable

8

FLYWHEEL (NOT AVAILABLE)

31110-HA5-004

Unavailable

9

STATOR (NOT AVAILABLE)

31120-HA5-003

Unavailable

9

STATOR (NOT AVAILABLE)

31120-HA5-004

Unavailable

10

CLAMP, WIRE (NOT AVAILABLE)

32111-HA5-000

Unavailable

11

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

11

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

12

SCREW-WASHER (5X14)

93892-05014-08

$1.49

13

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

13

CAP, ALTERNATOR

90084-471-000

Unavailable

14

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

15

WASHER, SEALING (6MM)

90441-706-000

$1.49

16

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$6.45

16

OIL SEAL (13X28X7) (NOK)

91201-HA0-004

Unavailable

16

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$6.45

17

O-RING (13.8X2.5)

91303-MG7-003

$3.12

17

O-RING (13.8X2.5)

91303-377-000

$3.42

17

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

18

O-RING (27X2.0)

91305-KF0-003

$2.92

19

PIN A, DOWEL (8X14)

94301-08140

$2.25

20

CLIP, TUBE (B10)

95002-02100

$1.90

21

BULK HOSE, VACUUM (5.5X8000) (5.3X285)

95005-55008-10M

Unavailable

22

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

23

BOLT, FLANGE (6X14) | Use up to Engine SN 5112009 This part replaces 96000-06014-00.

96001-06014-00

$1.72

23

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

23

BOLT, FLANGE (6X14) | Use up to Engine SN 5112009

96001-06014-00

$1.72

24

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

24

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

25

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

25

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

26

BOLT, FLANGE (6X50) | Use up to Engine SN 5112009 This part replaces 96000-06050-00.

96001-06050-00

$2.16

26

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

26

BOLT, FLANGE (6X50) | Use up to Engine SN 5112009

96001-06050-00

$2.16

27

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

27

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
