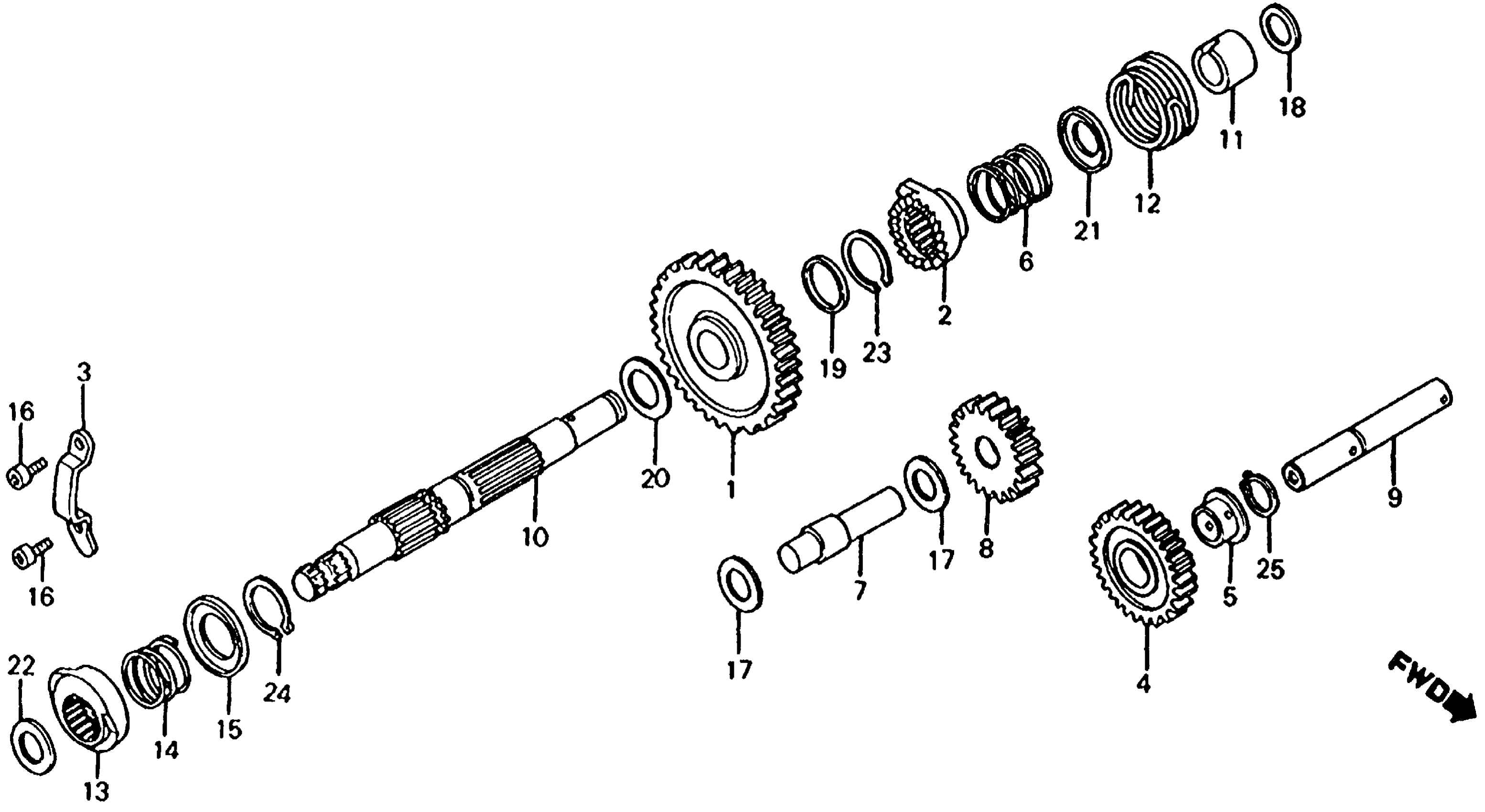

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER (NOT AVAILABLE)

28211-HA5-670

Unavailable

2

RATCHET, KICK STARTER

28213-HA0-000

Unavailable

3

PLATE, KICK STOPPER

28215-HA0-000

Unavailable

4

GEAR, SECOND KICK IDLE (20T)

28221-HA5-000

Unavailable

5

BUSH (14MM)

28222-HA5-670

Unavailable

6

SPRING, KICK STARTER RATCHET

28223-HA0-000

Unavailable

7

SHAFT, FIRST KICK IDLE

28242-HA5-670

Unavailable

8

GEAR, FIRST KICK IDLE (16T)

28243-HA5-670

Unavailable

9

SHAFT, SECOND KICK IDLE (NOT AVAILABLE)

28245-HA5-670

Unavailable

10

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-HA5-670

Unavailable

11

COLLAR, KICK STARTER

28255-HA5-000

Unavailable

12

SPRING, KICK STARTER

28261-HA5-000

Unavailable

13

CAM, KICK SHAFT (NOT AVAILABLE)

28272-HA5-670

Unavailable

14

SPRING, CAM RESET

28283-428-000

Unavailable

15

SEAT, CAM RESET SPRING

28284-428-000

Unavailable

16

BOLT, SOCKET (6X16)

90001-MA2-770

$3.53

17

WASHER, THRUST (15MM)

90451-107-000

$1.49

18

WASHER B, THRUST (14MM)

90428-958-000

$4.66

19

WASHER, THRUST (22MM)

90453-428-000

$2.90

20

WASHER, THRUST (22MM)

90456-323-000

Unavailable

21

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

22

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

22

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

23

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

24

CIRCLIP (OUTER) (24MM)

94510-24000

Unavailable

25

CIRCLIP (OUTER) (14MM)

94511-14000

$1.49
