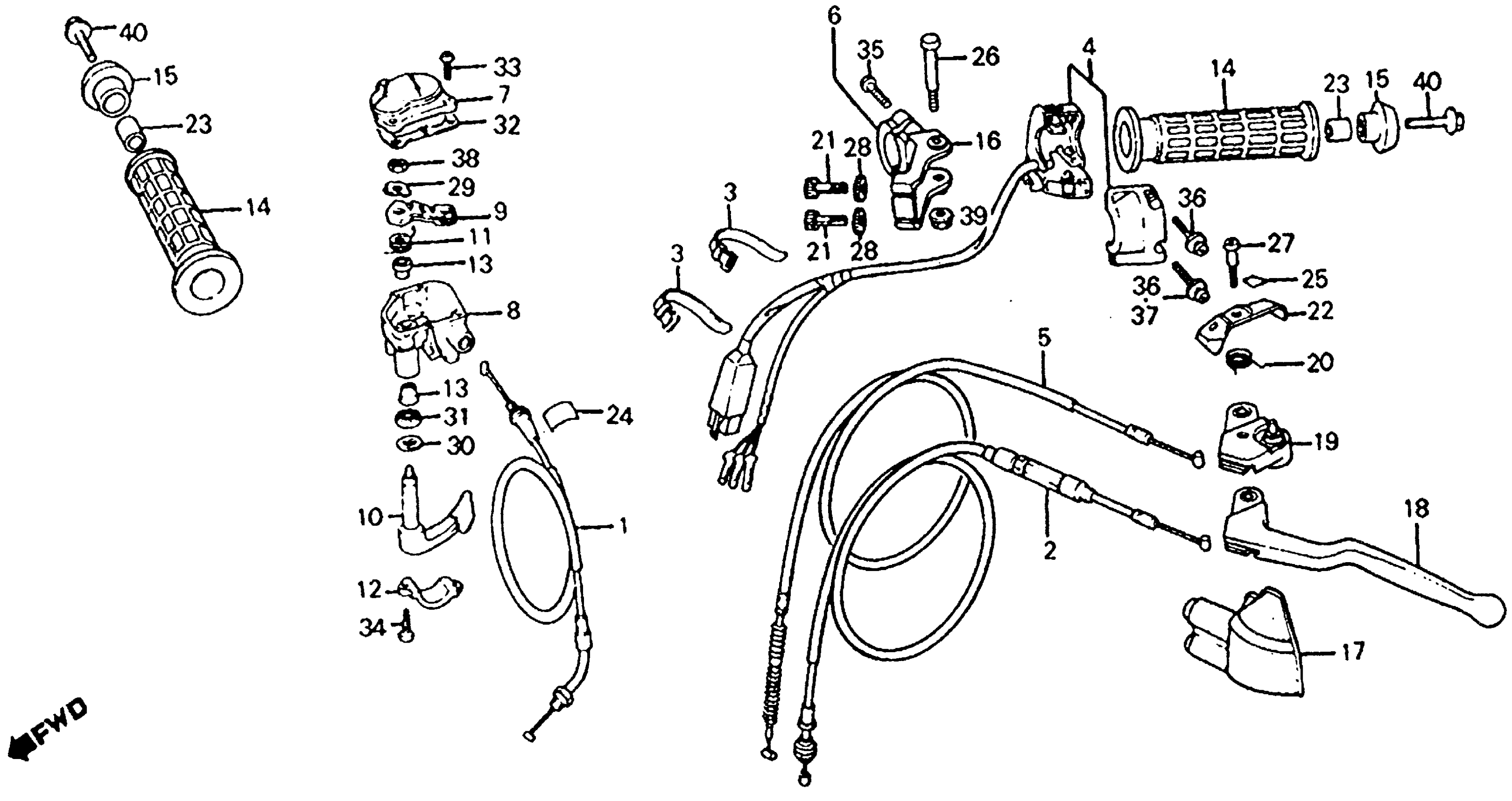

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HA5-670

Unavailable

2

CABLE, CLUTCH

22870-HA5-670

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., LIGHTING ENGINE STOP (NOT AVAILABLE) | Use up to Frame SN GM113801 This part replaces 35200-HA5-670.

35200-HA5-672

Unavailable

4

SWITCH ASSY., LIGHTING ENGINE STOP (NOT AVAILABLE) | Use from Frame SN GM113802 This part replaces 35200-HA5-671.

35200-HA5-672

Unavailable

4

SWITCH ASSY., LIGHTING ENGINE STOP (NOT AVAILABLE) | Use from Frame SN GM113802

35200-HA5-672

Unavailable

5

CABLE, PARKING BRAKE (NOT AVAILABLE)

43455-HA5-670

Unavailable

6

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

7

CASE, THROTTLE LEVER (NOT AVAILABLE) | Use up to Frame SN GM108021

04005-HA0-000

Unavailable

7

COVER, THROTTLE CASE | Use from Frame SN GM108022

53141-HA0-010

Unavailable

8

CASE, THROTTLE LEVER (NOT AVAILABLE) | Use up to Frame SN GM108021

04005-HA0-000

Unavailable

8

CASE, THROTTLE LEVER | Use from Frame SN GM108022

53142-HA0-020

Unavailable

9

ARM, THROTTLE

53144-HA0-010

$7.72

10

LEVER, THROTTLE This part replaces 53145-HA0-000.

53145-HA0-770

$24.05

10

LEVER, THROTTLE

53145-HA0-770

$24.05

11

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

12

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

13

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

14

GRIP, HANDLE

53165-958-010

$13.38

15

GUARD, HANDLEBAR END

53167-958-680

$6.40

16

BRACKET, L. HANDLEBAR

53172-961-000

Unavailable

17

COVER, L. HANDLEBAR

53177-HA5-000

$8.76

18

LEVER, L. HANDLEBAR

53178-965-000

Unavailable

19

ARM ASSY., PARKING BRAKE

53180-961-010

Unavailable

20

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

21

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

22

LEVER, PARKING BRAKE LOCK (NOT AVAILABLE)

53192-961-000

Unavailable

22

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

23

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

24

LABEL, STARTING PROCEDURE (B) (NOT AVAILABLE)

87134-HA5-670

Unavailable

25

MARK, PARKING BRAKE LEVER

87574-HA5-300

$2.13

26

BOLT, HANDLE LEVER PIVOT

90114-961-000

Unavailable

27

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

28

NUT, FIXING

90321-315-670

$7.31

28

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

29

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

30

WASHER (9X20)

90504-HA0-000

$2.28

31

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

31

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

32

GASKET, THROTTLE CASE This part replaces 91532-HA0-010.

91532-HA0-020

$6.16

32

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

33

SCREW, PAN (4X12) | Use up to Frame SN GM108021

93500-04012-0G

$1.49

33

SCREW, PAN (4X16) | Use from Frame SN GM108022

93500-04016-0G

$1.49

34

SCREW, PAN (5X18)

93500-05018-0G

$1.49

35

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

36

SCREW-WASHER (5X20)

93892-05020-07

$1.49

37

SCREW-WASHER (5X32)

93892-05032-07

Unavailable

38

NUT, HEX. (6MM)

94002-06000-0S

$1.49

39

NUT, FLANGE (6MM)

94050-06000

$1.49

40

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

40

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
