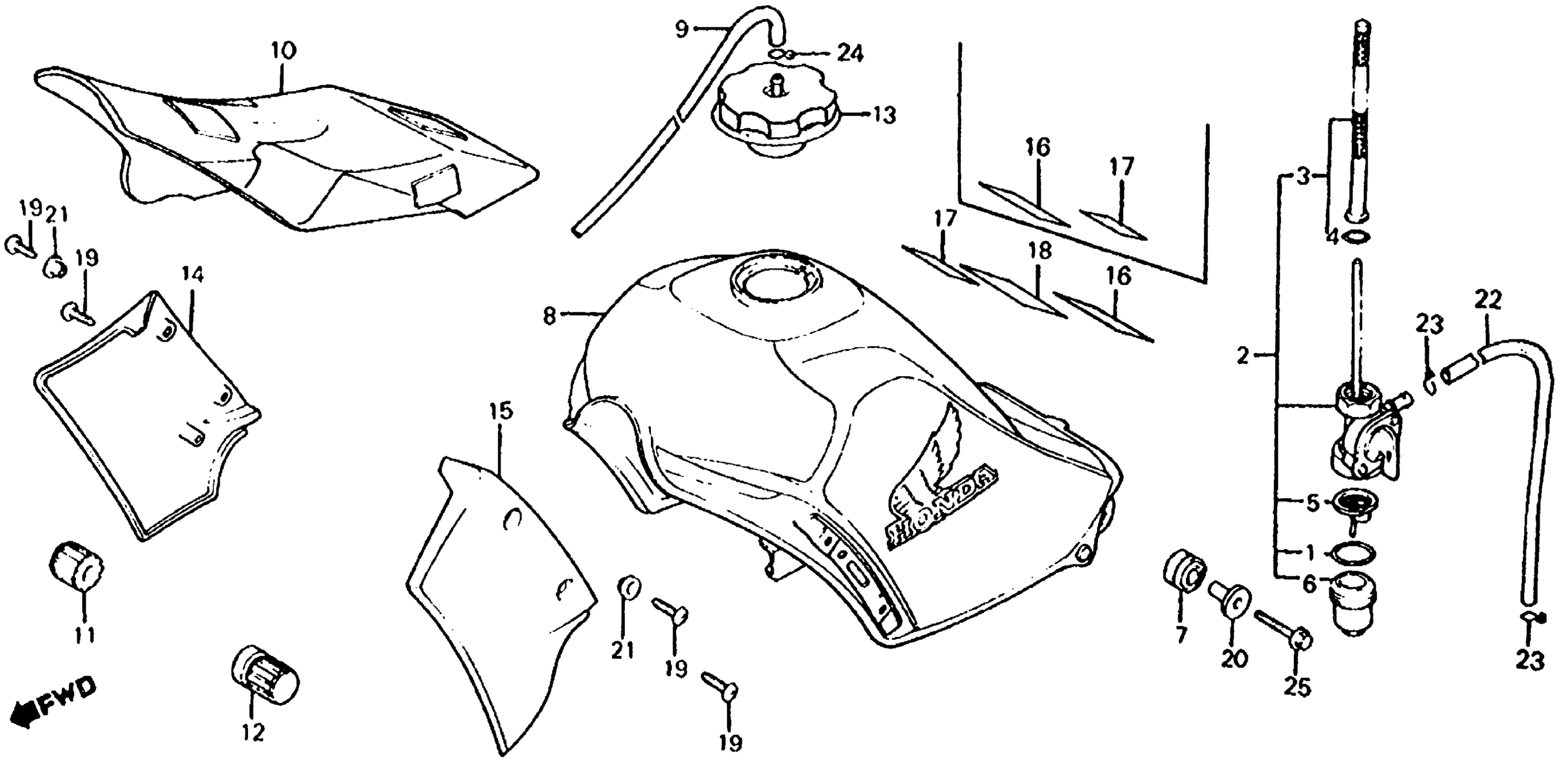

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 FUEL TANK Diagram

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

PETCOCK ASSY.

16950-HA5-005

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16952-HA5-005.

16952-449-751

$32.71

SCREEN SET, FUEL STRAINER

16952-449-751

$32.71

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

FILTER, CUP

16959-471-831

$9.35

CUP, FUEL STRAINER

16967-MA2-771

$25.08

RUBBER, FUEL TANK SETTING

17513-HA5-000

$9.15

TANK SUB-ASSY., FUEL *NH138* (SHASTA WHITE) (NOT AVAILABLE)

17520-HA5-670ZA

Unavailable

TUBE, FUEL CAP BREATHER

17530-437-000

$8.92

PANEL, HEAT (NOT AVAILABLE)

17540-HA5-000

Unavailable

RUBBER, FR. TANK

17611-437-000

$6.63

CUSHION, FR. FUEL TANK

17612-HA5-000

Unavailable

CAP, FUEL FILLER (TOYOSHA)

17620-HC0-003

Unavailable

CAP, FUEL FILLER (TOYOSHA) This part replaces 17620-HA5-670.

17620-HC0-003

Unavailable

GUIDE, R. AIR *R109* (PASSION RED)

19071-HA5-670ZA

Unavailable

GUIDE, L. AIR *R109* (PASSION RED)

19072-HA5-670ZA

Unavailable

LABEL, STARTING PROCEDURE (NOT AVAILABLE)

87133-HA5-000

Unavailable

LABEL, USE CAUTION (NOT AVAILABLE)

87504-HA5-670

Unavailable

SCREW, PAN (5X12)

90104-964-000

$2.34

WASHER, TANK SETTING

90505-HA5-000

$5.37

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

BULK HOSE, FUEL (7.5X8000) (7.3X140)

95001-75008-60M

$103.82

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (8X25)

96300-08025-08

$1.72

BOLT, FLANGE (8X25) This part replaces 96400-08025-08.

96300-08025-08

$1.72
