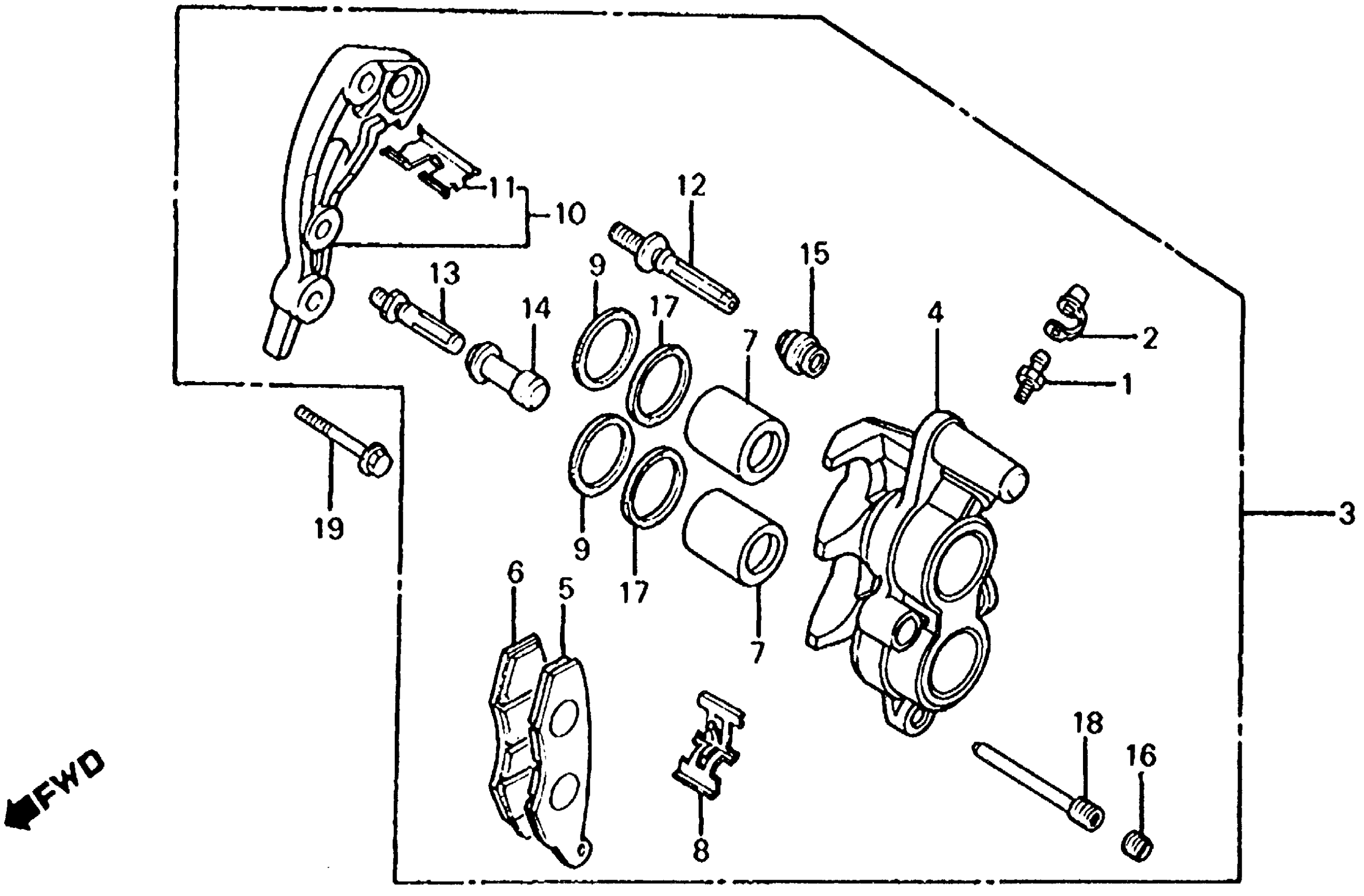

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 FRONT BRAKE CALIPER (2) Diagram

#

Description
Price

NI

BRAKE PAD KIT

451A0-HA5-670

Unavailable

NI

BRAKE PAD KIT

451A0-HB9-670

Unavailable

1

SCREW, BLEEDER

43352-568-003

$7.39

2

CAP, BLEEDER

43353-461-771

$4.70

3

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-HA5-671

Unavailable

4

BODY, CALIPER

45101-HA5-671

Unavailable

5

PAD A (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use up to Frame SN GM115005 This part replaces 45105-HA5-671.

45105-HA5-672

Unavailable

5

PAD A (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use from Frame SN GM115006

45105-HA5-672

Unavailable

6

PAD B (SEE KIT P/N--END OF BLOCK) | Use up to Frame SN GM115005 This part replaces 45106-HA5-671.

45106-HA5-672

Unavailable

6

PAD B (SEE KIT P/N--END OF BLOCK)

45106-HA5-672

Unavailable

7

PISTON This part replaces 45107-MG3-006.

45107-MG3-016

$36.79

7

PISTON

45107-MG3-016

$36.79

8

SPRING, PAD This part replaces 45108-HA5-671.

45108-MY1-006

$9.65

8

SPRING, PAD

45108-MY1-006

$9.65

8

SPRING, PAD This part replaces 45108-MY6-671.

45108-MY1-006

$9.65

9

DUST SEAL

45109-GE2-006

$4.94

10

BRACKET, FR. (NOT AVAILABLE)

45110-HA5-671

Unavailable

11

RETAINER

45112-HA5-671

$5.86

12

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$13.86

12

BOLT A, BOLT

45131-HA5-672

$13.86

13

PIN, BOLT

45131-166-016

$7.10

14

BUSH, PIN

45132-166-016

$5.07

15

BOOT B

45133-MA3-006

$5.07

16

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$4.76

16

PLUG, PIN

45203-MG3-016

$4.76

17

SEAL, PISTON

45209-GE2-006

$6.44

18

PIN, HANGER This part replaces 45215-HA5-671.

45215-HA5-672

$9.55

18

PIN, HANGER

45215-HA5-672

$9.55

19

BOLT, FLANGE (8X50) This part replaces 90132-MG3-000.

95801-08050-00

$2.80

19

BOLT, FLANGE (8X50)

95801-08050-00

$2.80

19

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.80
