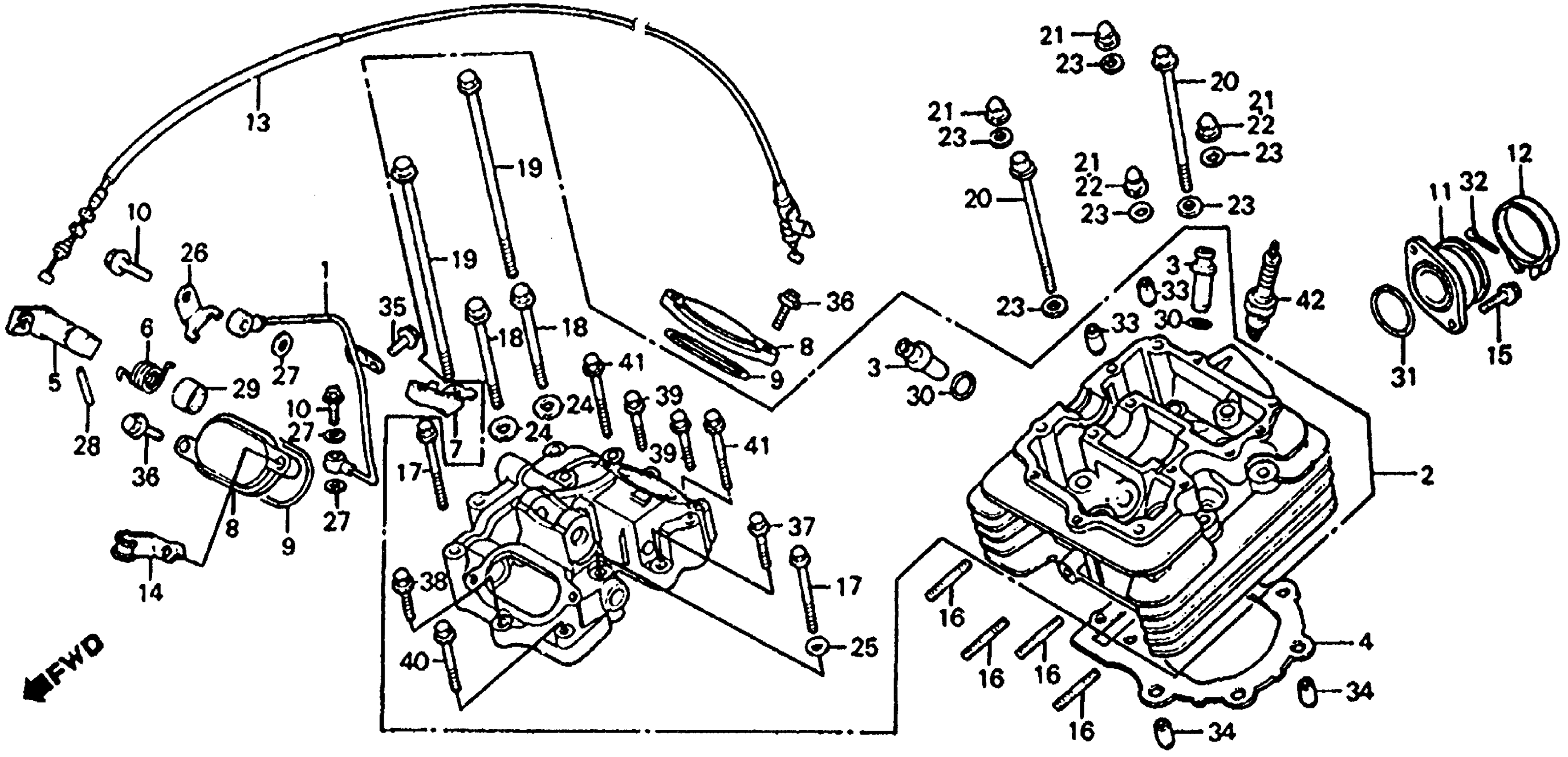

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-HA5-000

Unavailable

2

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12000-HA5-670

Unavailable

3

GUIDE, VALVE (OS)

12233-HA5-305

$17.90

4

GASKET, CYLINDER HEAD (NIPPON)

12251-HA5-004

Unavailable

4

GASKET, CYLINDER HEAD (OS) (NIPPON) | (Optional).

12252-HA5-305

Unavailable

5

LIFTER, VALVE (NOT AVAILABLE)

12319-HA5-670

Unavailable

6

SPRING, VALVE LIFTER

12321-HA5-000

Unavailable

7

RECEIVER, DECOMPRESSION CABLE (NOT AVAILABLE)

12323-HA5-000

Unavailable

8

COVER, TAPPET ADJ. HOLE

12351-428-000

$34.49

9

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.66

9

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.66

10

BOLT B, OIL CONTROL (8X28)

15532-ME5-015

$9.30

11

INSULATOR, CARBURETOR

16211-HA7-671

Unavailable

12

BAND, INSULATOR

16219-422-000

$11.43

13

CABLE, DECOMPRESSION

28291-HA7-671

$28.16

14

CLIP, IGNITION WIRE (NOT AVAILABLE)

32975-HA5-000

Unavailable

15

BOLT, FLANGE (6X22) | Use up to Engine SN 5112009

90004-HA0-000

Unavailable

15

BOLT, FLANGE (6X22) | Use from Engine SN 5112010

96001-06022-00

$1.13

16

BOLT, STUD (8X40) | Use up to Engine SN 5112009

90005-HA0-003

$4.66

16

BOLT, STUD (8X22) | Use from Engine SN 5112010

92900-08022-0B

$1.94

17

BOLT, FLANGE (6X52)

90009-HA0-000

$3.95

18

BOLT, FLANGE (7X72)

90051-HA5-000

Unavailable

19

BOLT, FLANGE (7X145)

90052-HA5-670

Unavailable

20

BOLT, SOCKET (10X110)

90064-HA5-000

Unavailable

21

NUT, FLANGE CAP (10MM)

90201-HA0-000

$5.99

23

WASHER (10MM)

90410-HA0-000

Unavailable

24

WASHER, SEALING (7MM)

90441-MC0-000

Unavailable

25

WASHER, SEALING (6MM)

90441-706-000

$1.06

26

WASHER, LOCK (8MM) (NOT AVAILABLE)

90443-HA5-003

Unavailable

27

WASHER C (8MM)

90475-703-000

Unavailable

28

PIN, DOWEL (5X28)

91101-428-000

$3.57

29

OIL SEAL (17X27X5) (KOYO) This part replaces 91201-428-005.

91202-HC5-005

$3.32

29

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.32

30

O-RING (10X1.6)

91301-200-000

$2.80

31

O-RING (35.4X2.9)

91305-HA5-000

$8.58

32

SCREW, PAN (5X20)

93500-05020-0G

$0.75

33

PIN A, DOWEL (8X12)

94301-08120

$2.09

34

PIN A, DOWEL (12X20)

94301-12200

$2.25

35

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

35

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

36

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

36

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

37

BOLT, FLANGE (6X28)

95700-06028-00

$1.65

37

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

38

BOLT, FLANGE (6X25) | Use up to Engine SN 5112009

96000-06025-00

$1.91

38

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

38

BOLT, FLANGE (6X25) | Use up to Engine SN 5112009

96001-06025-00

$1.91

39

BOLT, FLANGE (6X32) | Use up to Engine SN 5112009 This part replaces 96000-06032-00.

96001-06032-00

$1.28

39

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

39

BOLT, FLANGE (6X32) | Use up to Engine SN 5112009

96001-06032-00

$1.28

40

BOLT, FLANGE (6X40) | Use up to Engine SN 5112009 This part replaces 96000-06040-00.

96001-06040-00

$1.97

40

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

40

BOLT, FLANGE (6X40) | Use up to Engine SN 5112009

96001-06040-00

$1.97

41

BOLT, FLANGE (6X45) | Use up to Engine SN 5112009 This part replaces 96000-06045-00.

96001-06045-00

$1.78

41

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

41

BOLT, FLANGE (6X45) | Use up to Engine SN 5112009

96001-06045-00

$1.78

42

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.00

42

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.00

42

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.16

42

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.16

42

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.16

42

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.32

42

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.32

42

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.25

42

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.25
