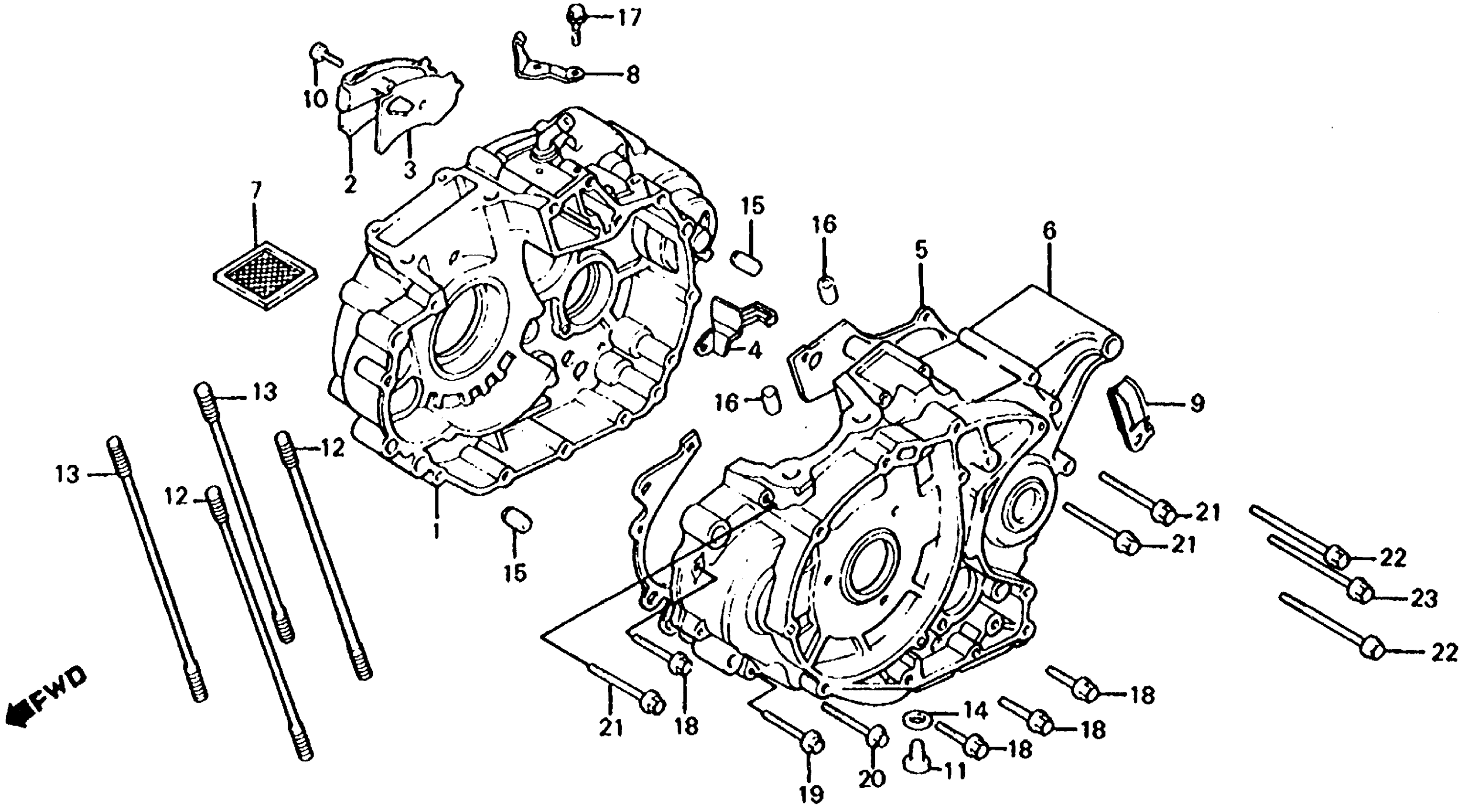

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-HA5-670

Unavailable

2

PLATE, BREATHER

11104-HA5-000

Unavailable

3

GASKET, BREATHER PLATE This part replaces 11105-HA5-000.

11105-HA5-306

Unavailable

3

GASKET, BREATHER PLATE

11105-HA5-306

Unavailable

4

CLAMP B, BREATHER TUBE (NOT AVAILABLE)

11107-HA5-670

Unavailable

5

GASKET, CRANKCASE This part replaces 11191-HA5-000.

11191-HA5-306

Unavailable

5

GASKET, CRANKCASE

11191-HA5-306

Unavailable

6

CRANKCASE, L. (NOT AVAILABLE)

11200-HA5-670

Unavailable

7

SCREEN, OIL FILTER

15421-428-000

$17.82

8

HOLDER, CLUTCH WIRE (NOT AVAILABLE)

22838-HA5-670

Unavailable

9

CLAMP, ALTERNATOR CABLE (NOT AVAILABLE)

32922-HA5-000

Unavailable

10

BOLT, SOCKET (6X12)

90003-HA0-003

$2.61

11

BOLT, SPECIAL (12MM) (NOT AVAILABLE)

90015-HA5-000

Unavailable

12

BOLT, STUD (10X175)

90031-HA5-000

Unavailable

13

BOLT, STUD (10X195)

90032-HA5-000

Unavailable

14

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

15

PIN A, DOWEL (10X16)

94301-10160

$2.28

16

PIN A, DOWEL (12X20)

94301-12200

$2.29

17

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

17

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

18

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

18

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

19

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

19

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

20

BOLT, FLANGE (6X50) | Use up to Engine SN 5112009 This part replaces 96000-06050-00.

96001-06050-00

$2.16

20

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

20

BOLT, FLANGE (6X50) | Use up to Engine SN 5112009

96001-06050-00

$2.16

21

BOLT, FLANGE (6X60) | Use up to Engine SN 5112009 This part replaces 96000-06060-00.

96001-06060-00

$2.06

21

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

21

BOLT, FLANGE (6X60) | Use up to Engine SN 5112009

96001-06060-00

$2.06

22

BOLT, FLANGE (6X80) | Use up to Engine SN 5112009 This part replaces 96000-06080-00.

96001-06080-07

$2.23

22

BOLT, FLANGE (6X80) | Use up to Engine SN 5112009 This part replaces 96000-06080-07.

96001-06080-07

$2.23

22

BOLT, FLANGE (6X80) | Use up to Engine SN 5112009

96001-06080-07

$2.23

22

BOLT, FLANGE (6X80) | Use from Engine SN 5112010

96001-06080-00

$2.21

23

BOLT, FLANGE (6X90) | Use up to Engine SN 5112009 This part replaces 96000-06090-00.

96001-06090-00

$1.95

23

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

23

BOLT, FLANGE (6X90) | Use up to Engine SN 5112009

96001-06090-00

$1.95
