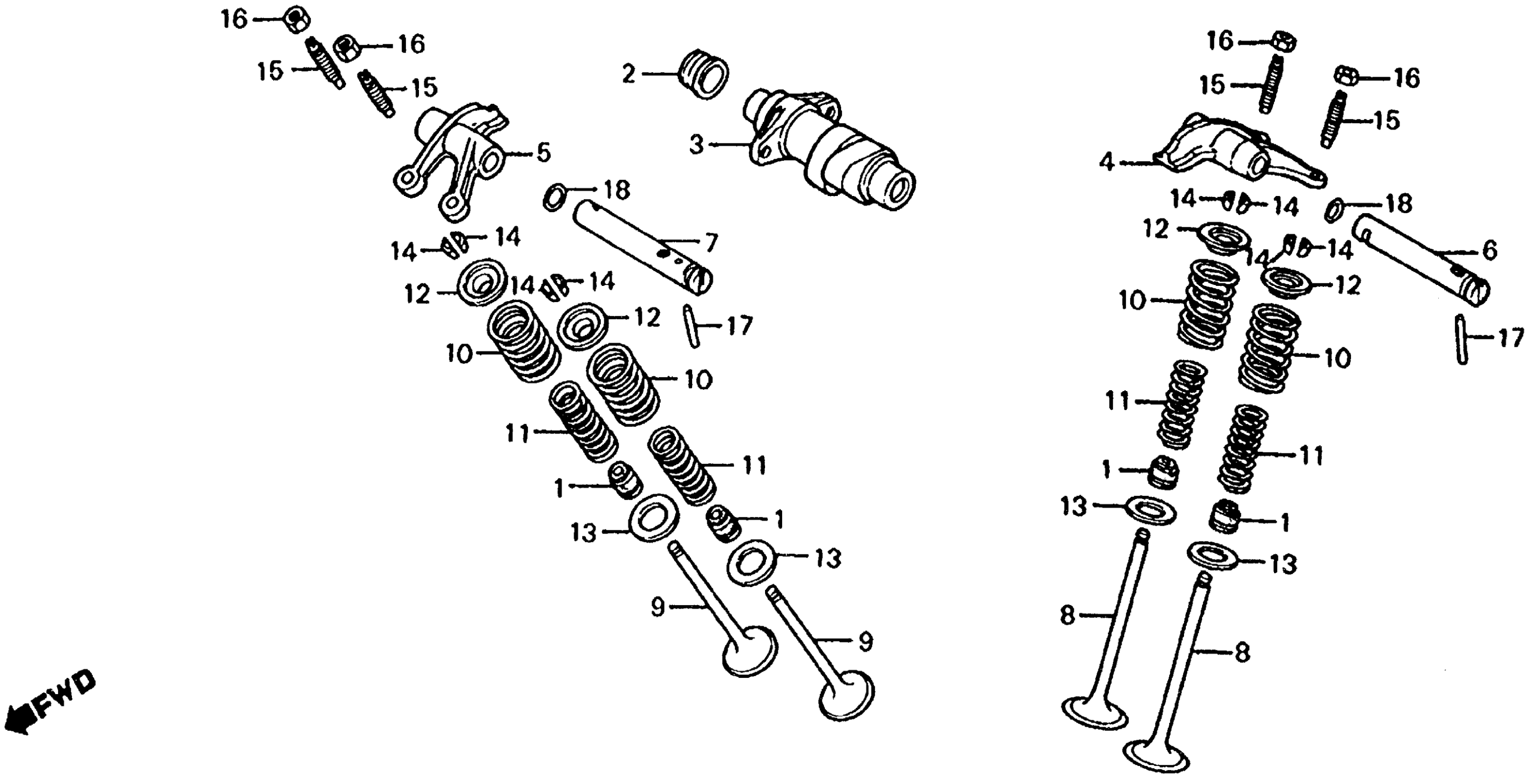

Honda ATC350XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE080-GM100008 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-KL4-005

$7.81

2

CAP, CYLINDER HEAD SIDE

12312-HA0-000

Unavailable

3

CAMSHAFT

14101-HA5-000

Unavailable

4

ARM, IN. VALVE ROCKER This part replaces 14431-HA5-670.

14431-HA7-671

Unavailable

4

ARM, IN. VALVE ROCKER This part replaces 14431-HA7-670.

14431-HA7-671

Unavailable

4

ARM, IN. VALVE ROCKER

14431-HA7-671

Unavailable

5

ARM, EX. VALVE ROCKER This part replaces 14441-HA5-670.

14441-HA7-671

Unavailable

5

ARM, EX. VALVE ROCKER This part replaces 14441-HA7-670.

14441-HA7-671

Unavailable

5

ARM, EX. VALVE ROCKER

14441-HA7-671

Unavailable

6

SHAFT, IN. ROCKER ARM

14455-HA7-670

Unavailable

7

SHAFT, EX. ROCKER ARM This part replaces 14456-HA7-670.

14456-HC0-000

$36.77

7

SHAFT, EX. ROCKER ARM

14456-HC0-000

$36.77

8

VALVE, IN.

14711-HA5-013

Unavailable

9

VALVE, EX.

14721-HA5-003

Unavailable

10

SPRING, VALVE (OUTER)

14751-HA5-003

Unavailable

10

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-HA5-004

Unavailable

11

SPRING, VALVE (INNER)

14761-HA5-003

Unavailable

11

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-HA5-004

Unavailable

12

RETAINER, VALVE SPRING

14771-KE5-000

$11.72

13

SEAT, VALVE SPRING

14775-KE5-000

$4.94

14

COTTER, VALVE This part replaces 14781-HA5-003.

14781-MB4-000

$3.19

14

COTTER, VALVE

14781-MB4-000

$3.19

15

SCREW, TAPPET ADJ.

90012-415-000

$6.05

16

NUT, TAPPET ADJ. This part replaces 90205-300-000.

90206-250-000

$2.94

16

NUT, TAPPET ADJ.

90206-250-000

$2.94

17

PIN, DOWEL (5X38)

91102-HA0-000

$4.96

18

O-RING (7.7X2.5)

91303-428-003

$1.90
